Invisible optical cable
FTTH adhesive Invisible optical cable for fiber to the home

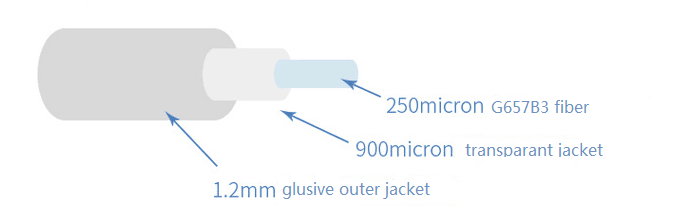

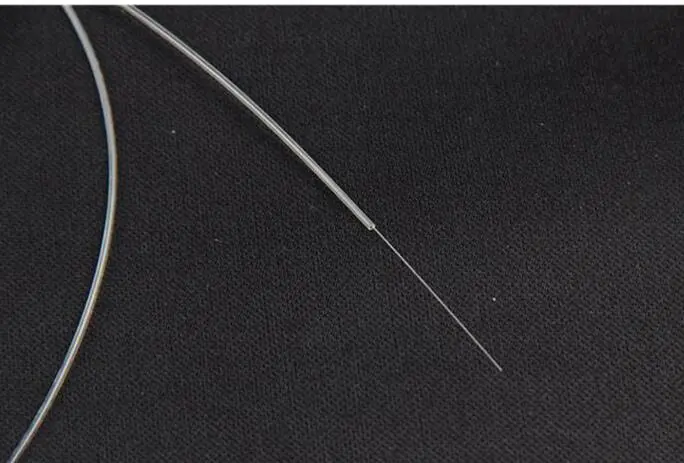

Invisible optical cable is the abbreviation for transparent tight-buffered optical cable covered with hot melt glue. It is an optical cable composed of G.657.B3 optical fiber, a transparent tight jacket layer, and a layer of hot melt adhesive. Each layer is extruded step by step using an extrusion process, with a nominal outer diameter of 1.2mm.

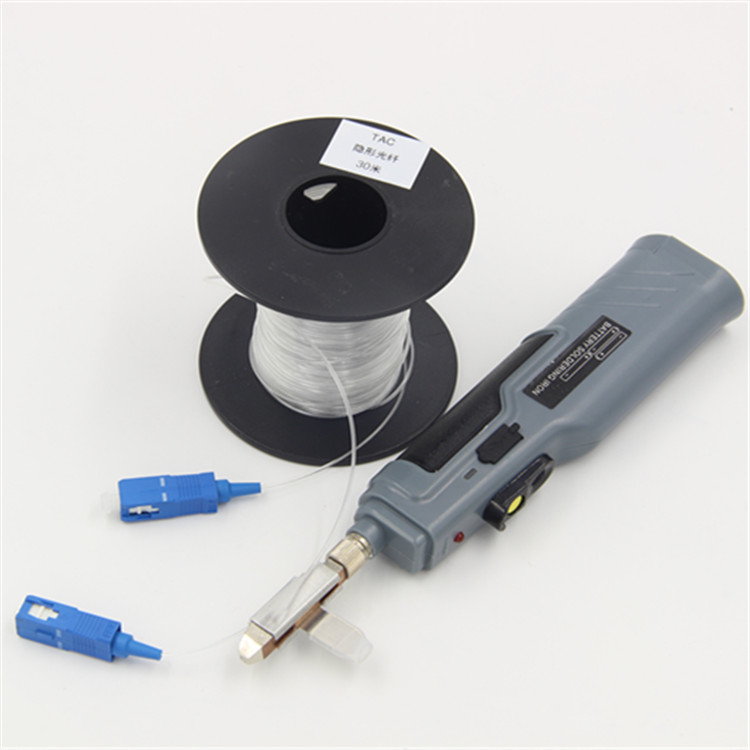

The application of invisible optical cable is the application where the user does not accept the use of leather fiber optic cable to enter the home or solves the problem of the user's difficulty in entering the home, especially in the old residential area and office. The fiber used is G.657.B3 fiber with a minimum bending radius of 5mm. When laying, there is no need to nail, make brackets, perforate, make pipes, etc., to destroy the original indoor structure, or because of the discontinuity of the laying, the optical cable will sag and fall off and other safety hazards. At the same time, the optical cable is almost transparent so it will not affect the indoor Beautiful, simple construction method, only need hand-held heating installation tools to complete the laying project.
Technical parameter
| Cable Type | Outder Sheath Diameter | Nominal Weight(kg/km) | Tensile Strength(N) | Crush Load(N/100mm) | Bending Radius(mm) | |||
| Short term | Long term | Short term | Long term | Dynamic | Static | |||
| GJXH | 1.2mm (±0.1) | 1kg +/- 0.1kg | 40 | 80 | 1000 | 500 | 20D | 10D |
| Storage/Working temperature | -40℃~+70℃ | |||||||
Application
1.indoor wall tracking , invisible, look more neatly
2.flexible TPU jacket , good to install in wall and roof
3.bent insensitive fiber g657B3

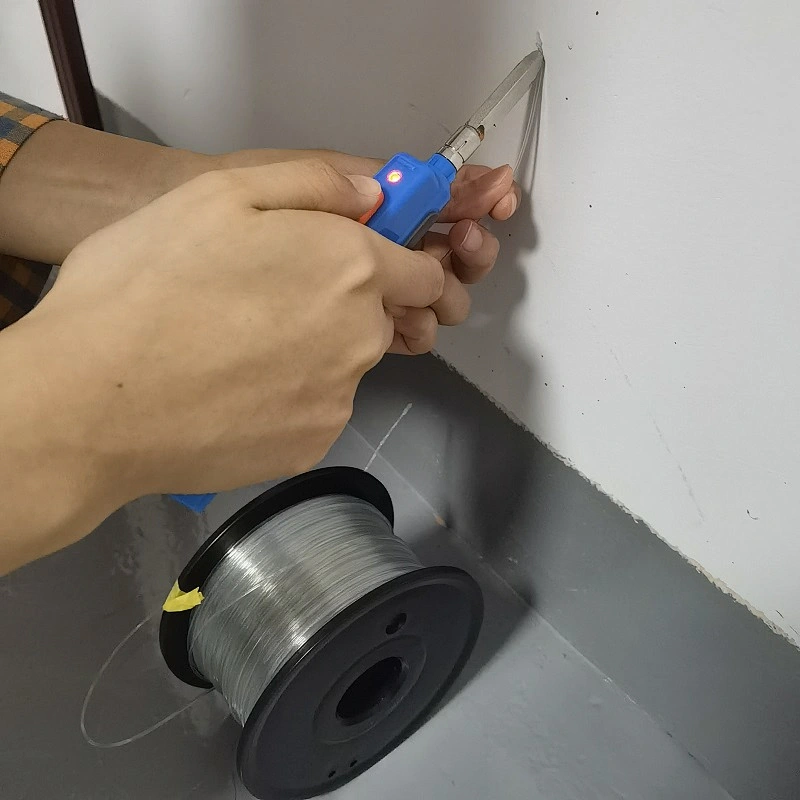

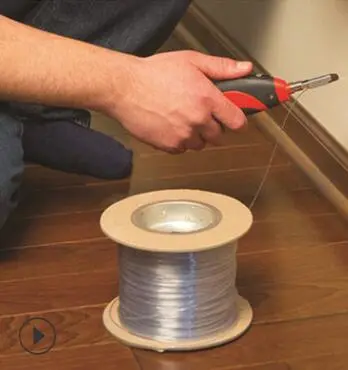

4.self adhesive , using hot gun to fix on the wall

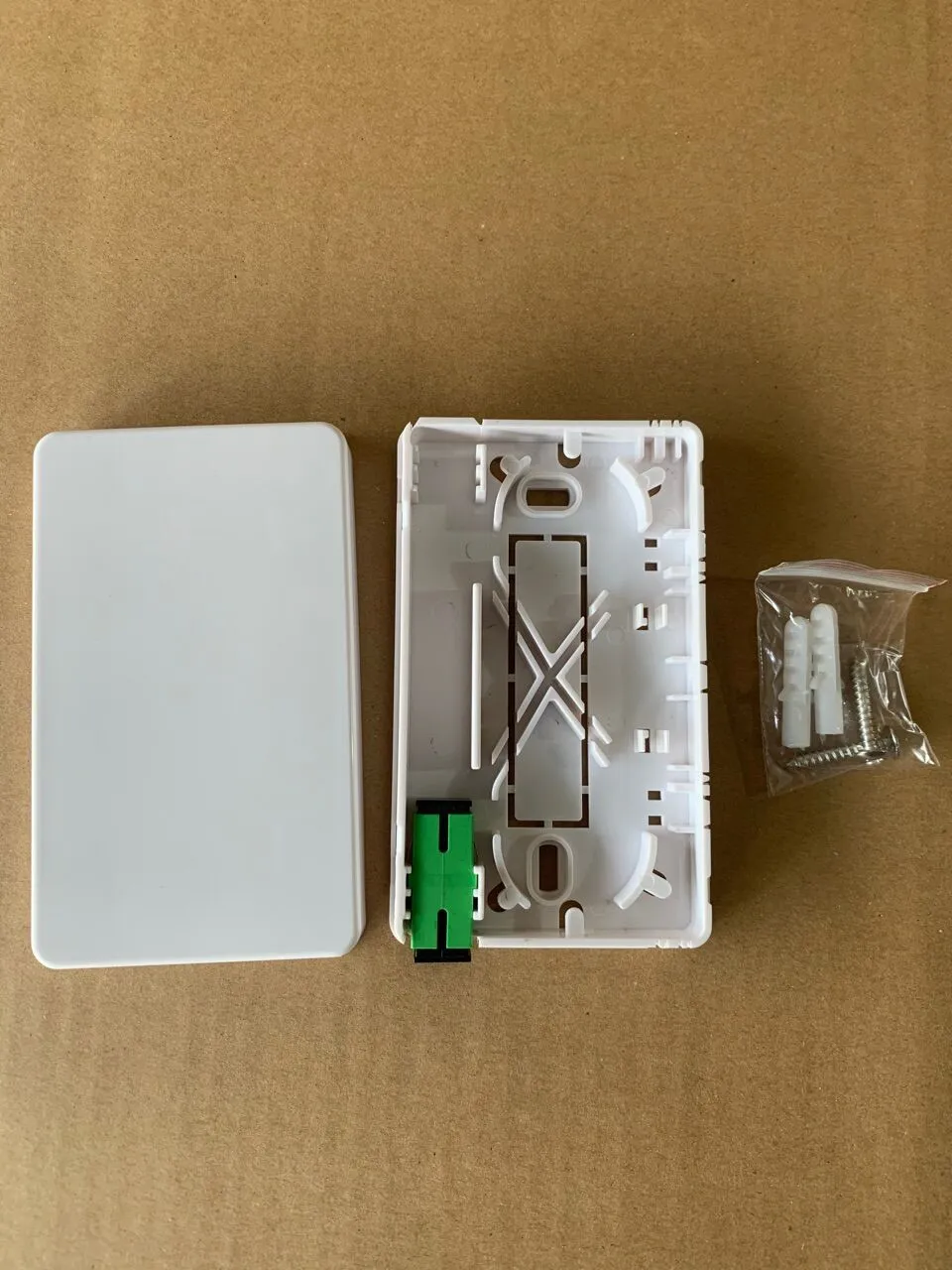

5.small size face plate to fix on the wall(112*750mm)

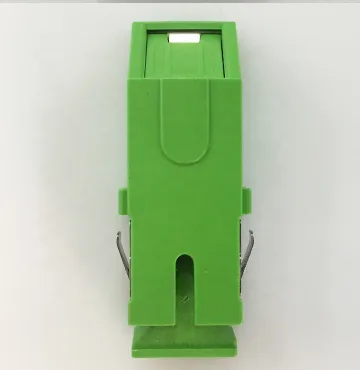

6.shutter adapter choose

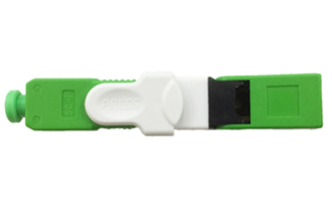

7.fast connector availbel

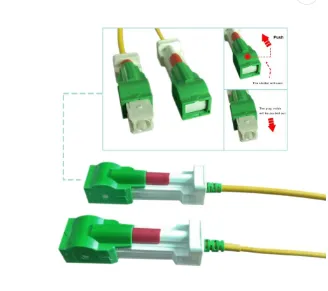

8.shutter patch cord choice
