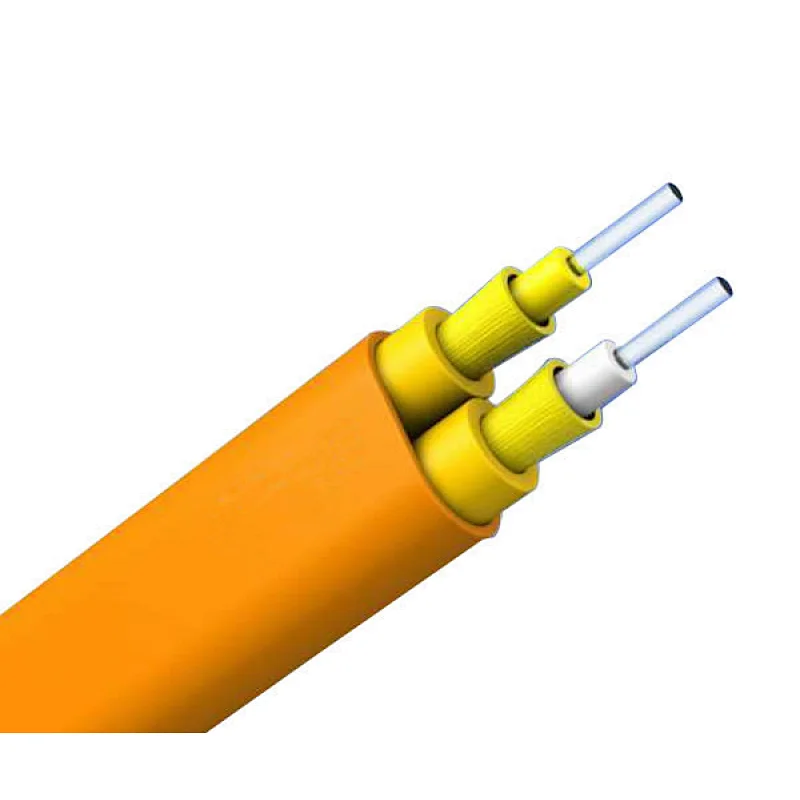

Structure
Technical Parameters
Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength(N) | Minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature | |||
(MM) | (KG) | Short term | Long term | Short term | Long term | Short term | Long term | ℃ | |
2 | 2.8*4.8 | 13.1 | 100 | 200 | 300 | 1000 | 60 | 30 | -20 to +60 |
2 | 3.0*5.0 | 14.8 | 100 | 200 | 300 | 1000 | 60 | 30 | |
2 | 4.0*7.0 | 25.6 | 160 | 300 | 300 | 1000 | 80 | 40 | |
Ordering Information
Fiber type: SM 9/125, MM 50/125, 62.5/125, OM3, OM4
0.9mm Buffer: tight buffer, easy buffer, semi-tight buffer
Cable Diameter:2.8*4.8mm, 3.0*5.0mm, 4.0*7.0mm
Sheath Material: PVC,LSZH
Sheath Color: Yellow, Orange, Aqua or Customized
Send Message
