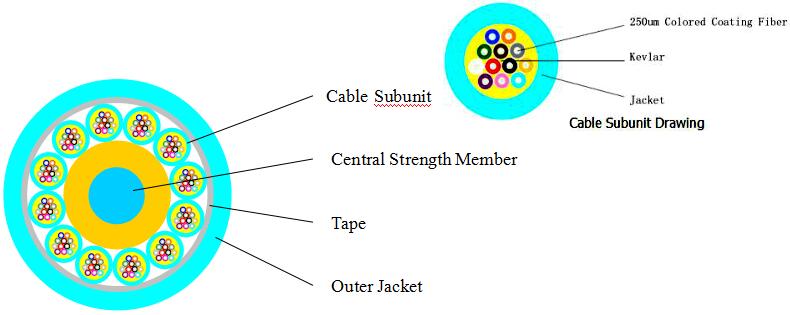

144-fiber Dry Structure Indoor Fiber Optic Cable, with 3.0mm subunit

Fiber Parameters

No.

Items

unit

Performance Specification

1

Core diameter

μm

50±2.5

2

Cladding Diameter

μm

125±1.0

3

Core non-circularity

%

≤6.0

4

Cladding non-circularity

%

≤2.0

5

Core-cladding concentricity

μm

≤1.0

6

Coating Diameter

μm

245±10

7

Cladding -coating concentricity

μm

≤12.5

8

Effective Bandwidth(min.)

850nm

MHz.km

≥4700





1300nm

MHz.km

≥500

9

Attenuation(max.)

850nm

dB/km

3.5





1300nm



1.5

Cable Parameters

Items

Specifications

Fiber Count

144

Colored Coating Fiber

  Dimension

250±15μm



Color

Blue、Orange、Green、Brown、Gray、

White、Red、Black、Yellow、Purple、

Pink、Aqua

Cable Subunit

  Dimension

2.9±0.1mm



Material

PVC

Color

Aqua

Strength Member

Kevlar

Printing Marks

〈1〉~〈12〉

Central Strength Member

FRP

Outer Jacket

Dimension

17.5±0.5mm

Material

PVC

Color

Aqua

Mechanical and Environmental Characteristics

Items

Unite

Specifications

Tension(Long Term)

N

500

Tension(Short Term)

N

1200

Crush(Long Term)

N/10cm

300

Crush(Short Term)

N/10cm

1000

Min. Bend Radius(Dynamic)

mm

20D

Min. Bend Radius(Static)

mm

10D

Installation Temperature

-10~+60

Operating Temperature

-20~+60

Storage Temperature

-20~+60

Ordering Choice

  • Fiber type: SM 9/125, MM 50/125, 62.5/125 or OM3/OM4
  • Fiber Count: 1~144C
  • Sheath Material: PVC, LSZH
  • Sheath Color: Yellow, Orange, Aqua or Customized
