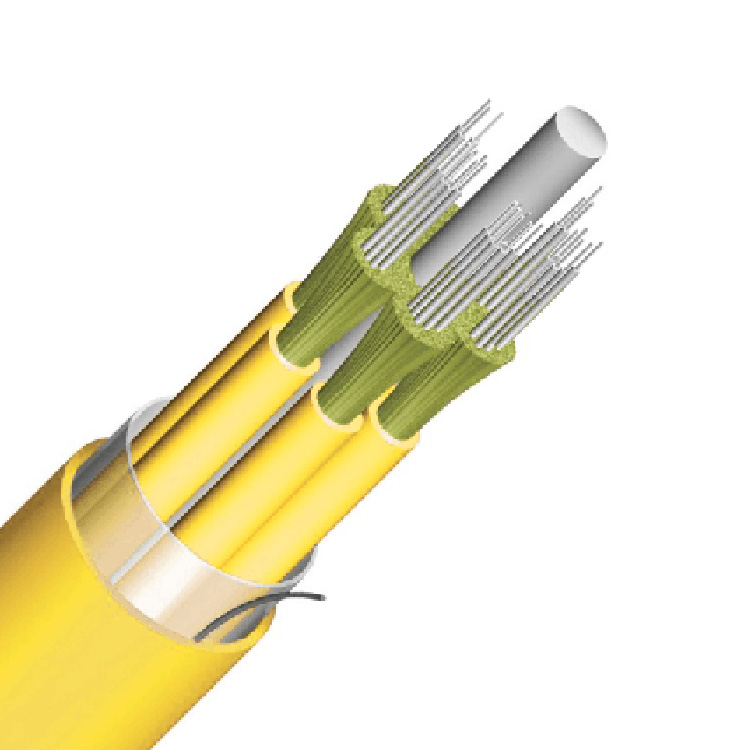

Structure

Technical Parameters
Out sheath Diameter | Tight buffer Diameter | Weight | Minimum allowable Tensile Strength (N) | minimum allowable Crush Load (N/100mm) | Minimum Bending Radius (MM) | Storage temperature |
(MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) |
3.0 | 0.6 | 8.00 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20+60 |
Ordering Information
Fiber type: SM 9/125, MM 50/125, 62.5/125, OM3, OM4
0.9mm Buffer: tight buffer, easy buffer, semi-tight buffer
Sheath Material: PVC,LSZH
Sheath Color: Yellow, Orange, Aqua or Customized
