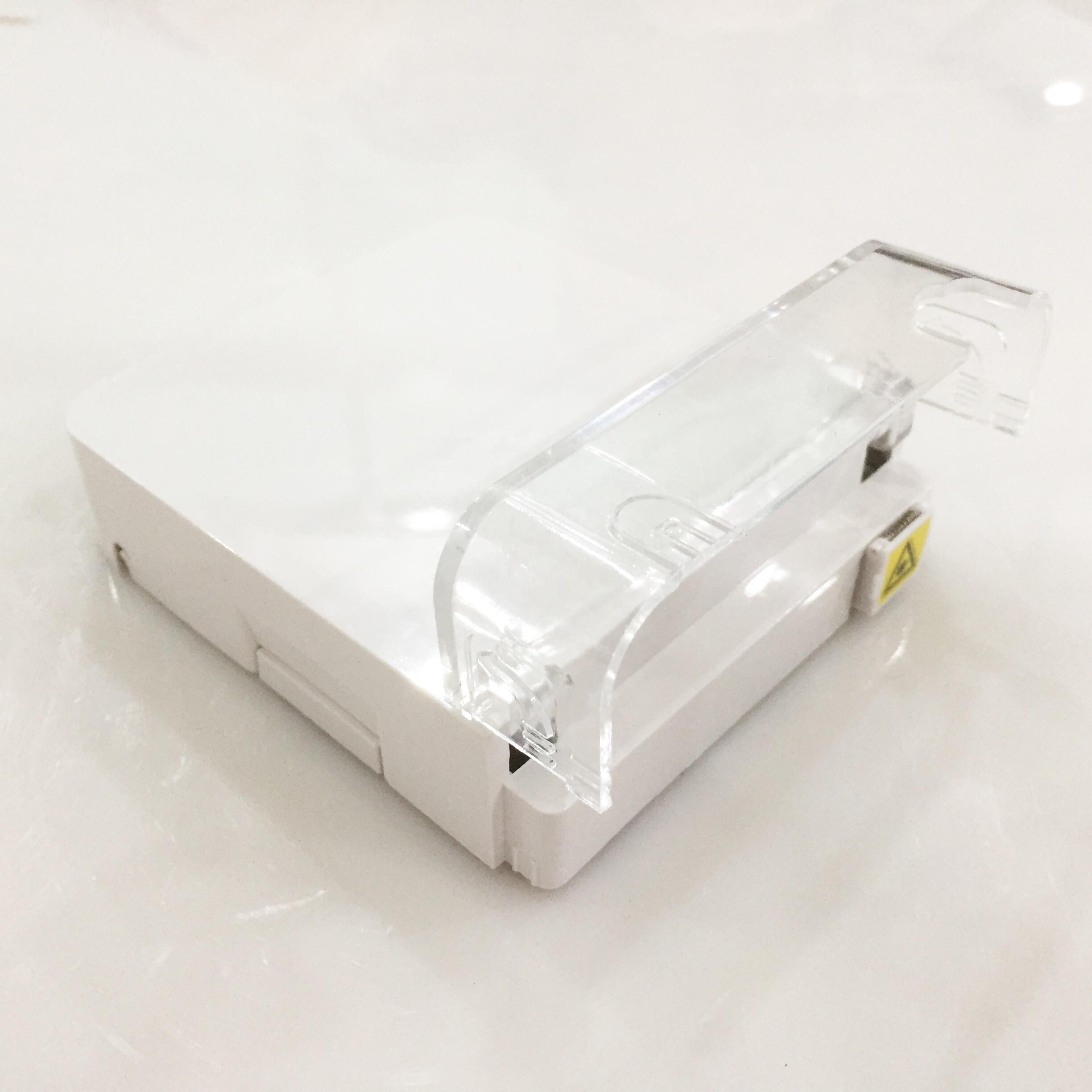

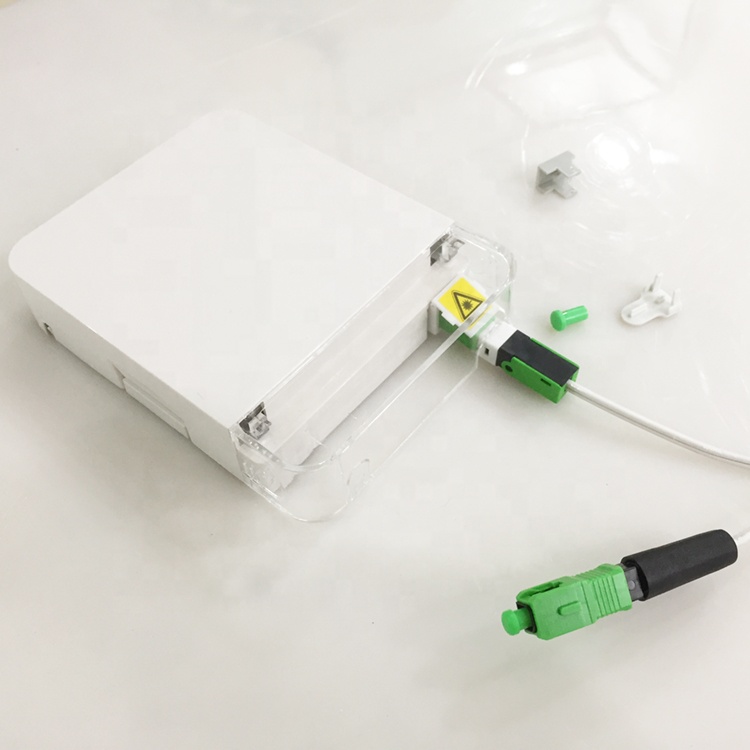

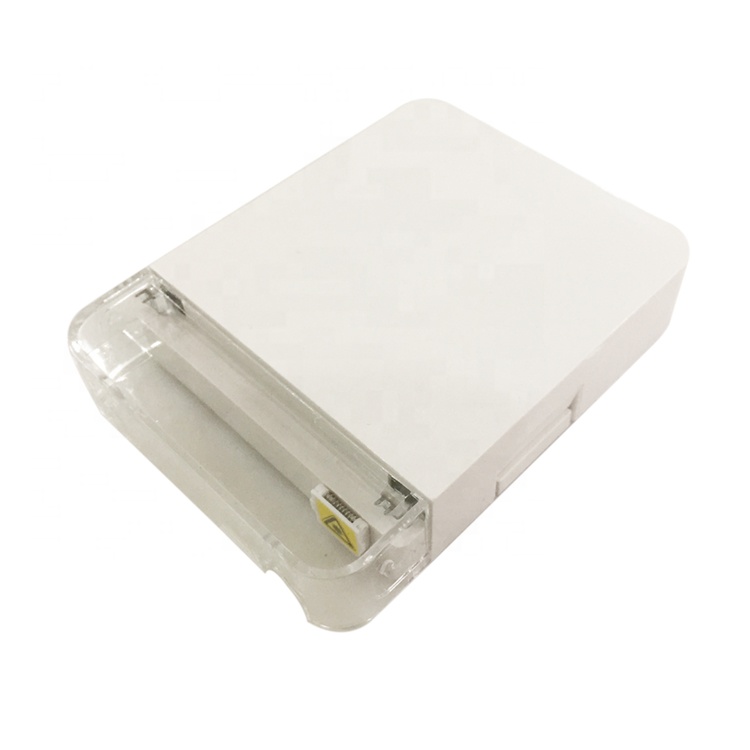

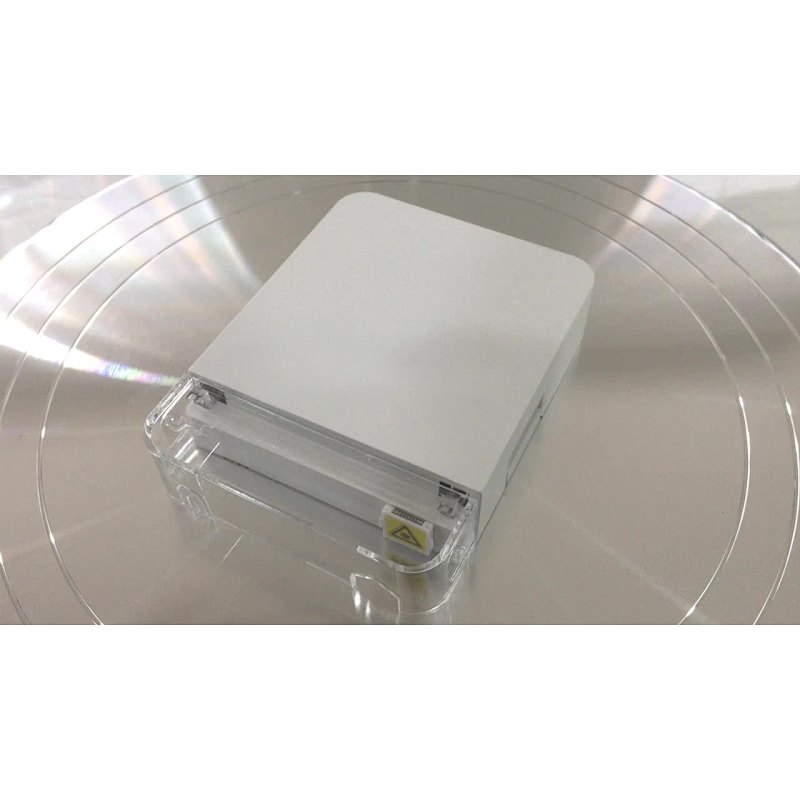

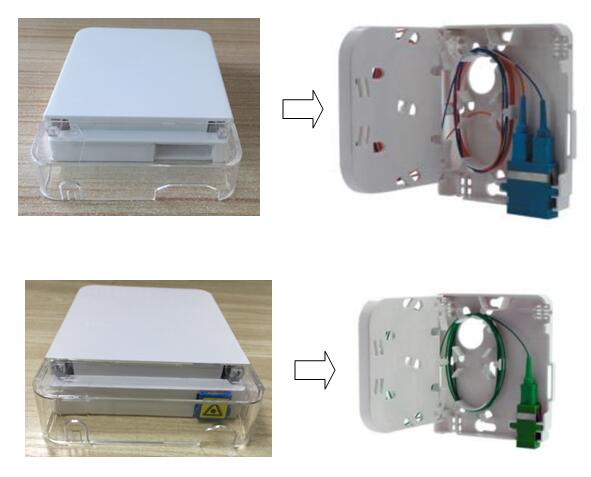

Huawei transparent dust cap ftth fiber optic termination box
Product Description

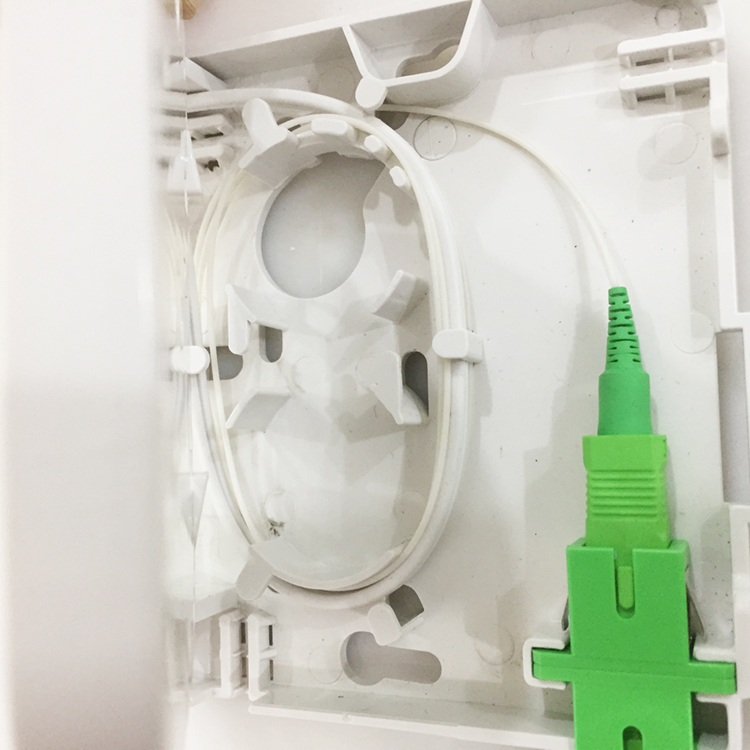

Fiber Optic Adapter Panel is a user terminal product that achieves fiber-to-desktop solutions with a reasonable design of internal space. For home or work area, complete dual-core fiber access and port output, can fully meet the requirementsof fiber bending radius, and protect the fiber out of the fiber core to provide safe protection. Appropriate radius of curvature, allowing a small amount of redundant fiber inventory, to achieve FTTD (fiber to desktop) system applications.


Features
- Small size and light weight for easy installation

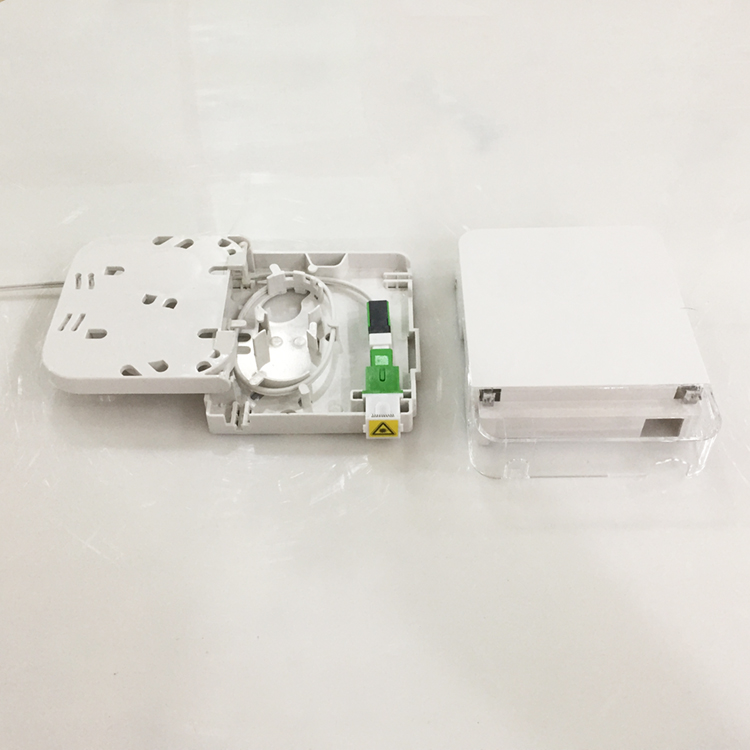

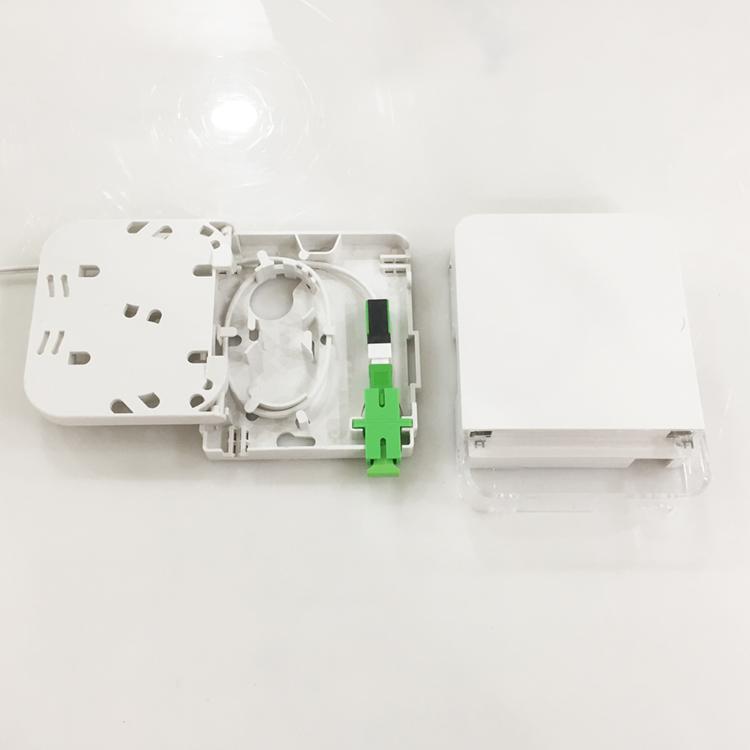

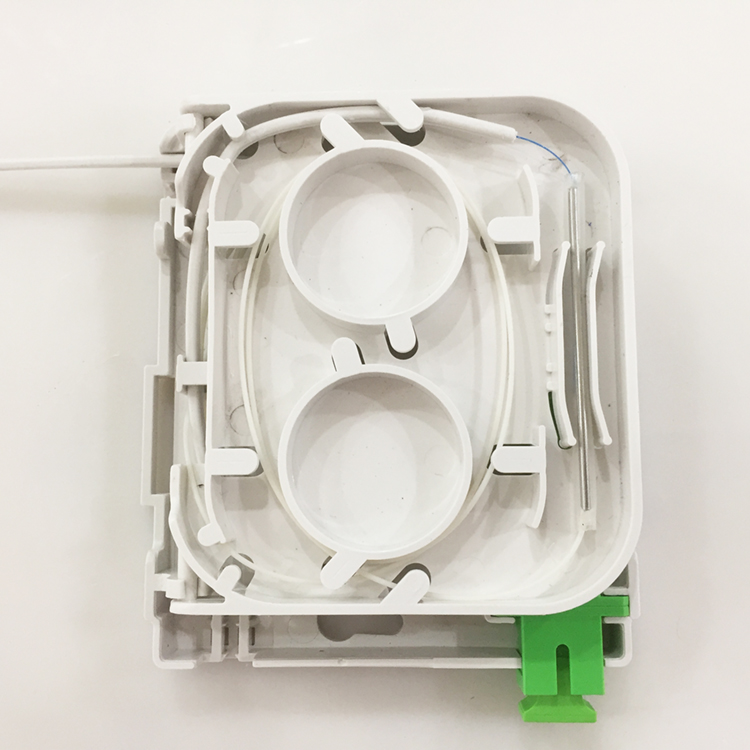

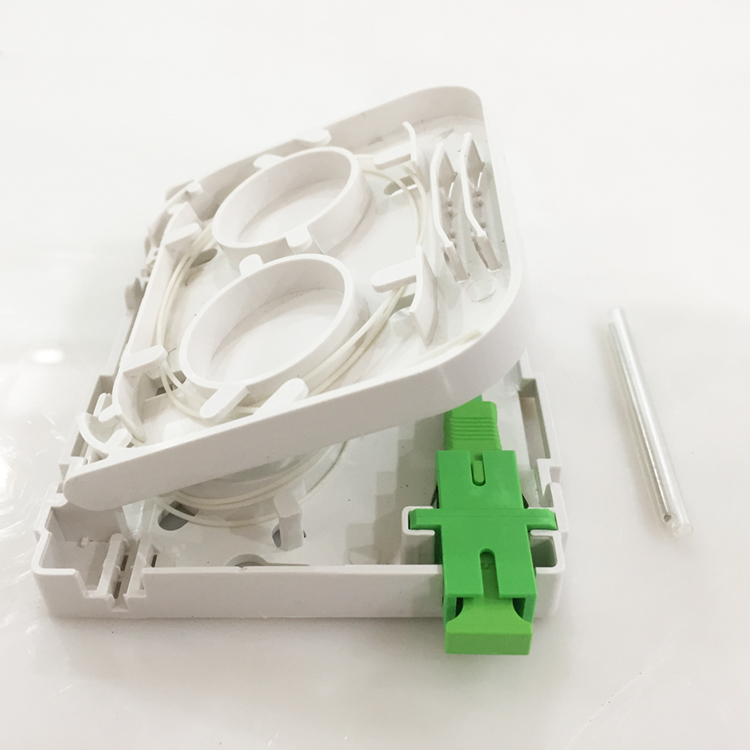

- Double-layer design for easy installation and maintenance
- Four cable entry, available from the top, bottom, right side into the line, easy to choose routing
- Single-core, dual-core fiber adapter can choose
- Using high-quality ABS material, with a certain fireproofing performance
- With dust-proof device to prevent dust
- With a logo bar, easy to manage number and maintain
- Applicable with fiber optic cable or indoor cable
- Adapter Type: SC, LC

Parameter | Value | Remark |
Model | WT-FTTD-ATB-H02 | |
Outside Dimension | 115*86*23mm | |
Material | Plastic | |
Color | White | |
Storage of fibers | G.657 fiber | |
Splice capacity | 2 Fiber | |

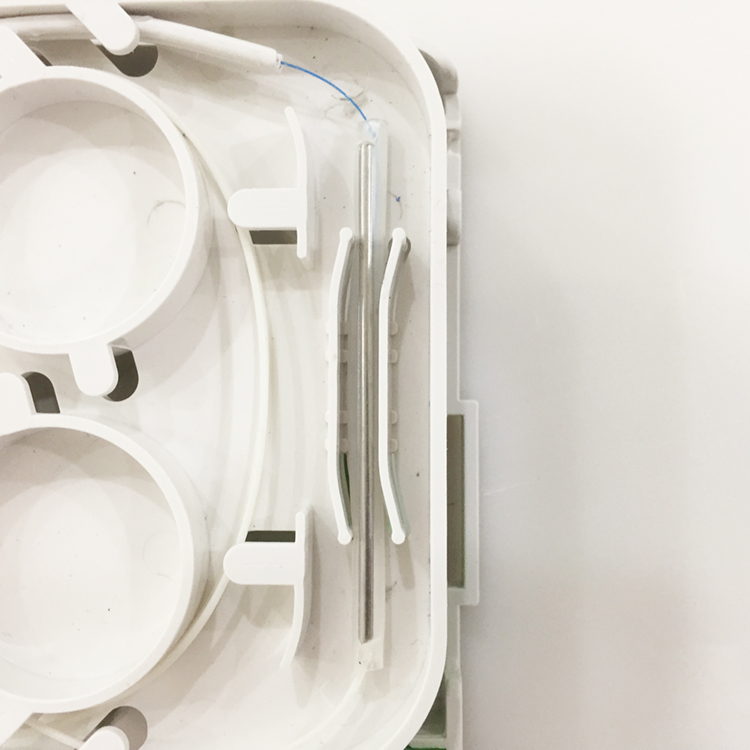

Splice Method | Fusion splice | 45mm sleeve |
Adaptor type and count | SC,2SC | |
Input cable | 3mm or Ftth cable(2*3mm) | From side or bottom |





- Fiber to the desk (FTTD)
- Fiber to the home(FTTH)
- Fiber to the building(TFFB)
- Local area networks
- Wide area networks
Accessories:

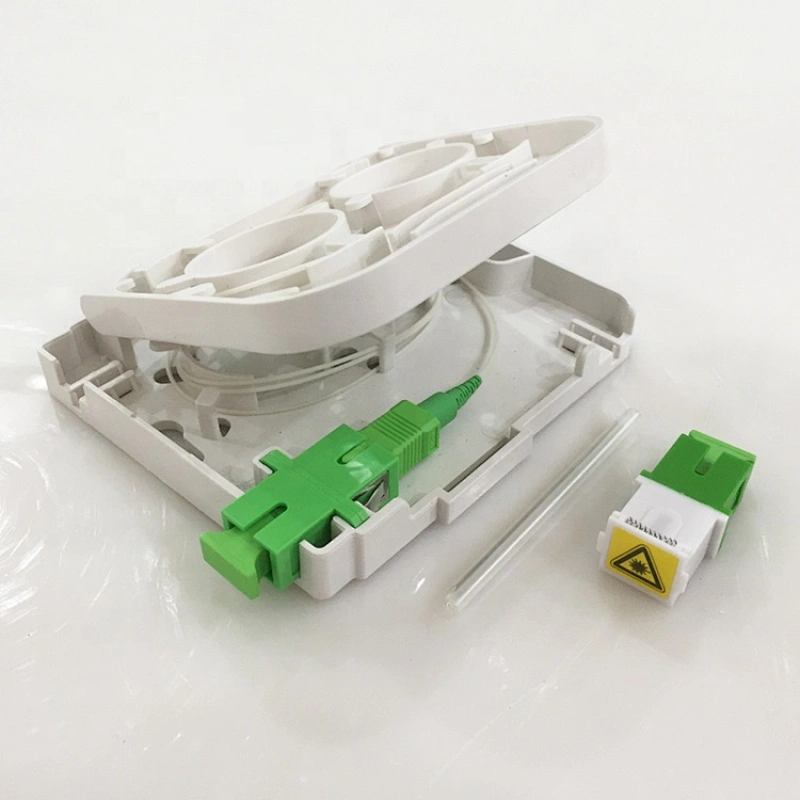

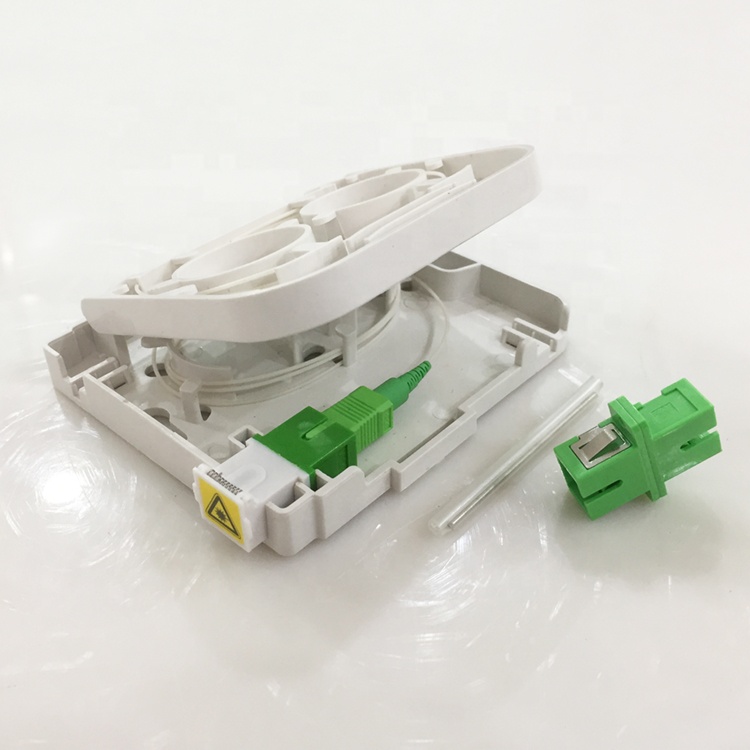

- Fiber splice protection sleeve 2pcs
- Expansion bolts for the outlet wall-mounted 2set
- Cable tie 4pcs
