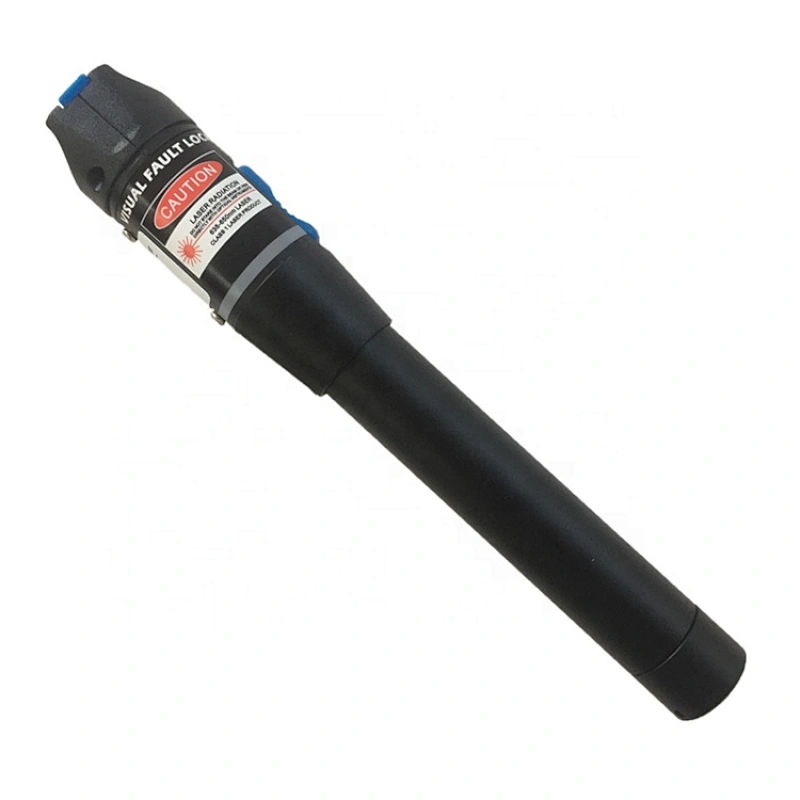

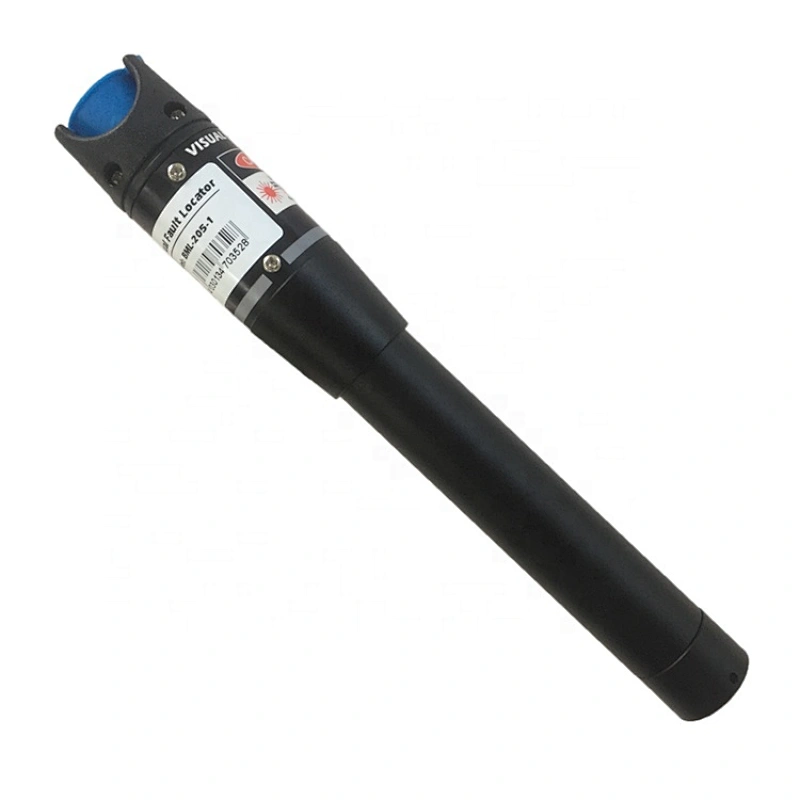

Network Test Pen Type FTTH Tool Kit 20mw Fiber Optic Visual Fault Locator
Network Test Pen Type FTTH Tool Kit 20mw Fiber Optic Visual Fault Locator
Network Test Pen Type FTTH Tool Kit 20mw Fiber Optic Visual Fault Locator
Network Test Pen Type FTTH Tool Kit 20mw Fiber Optic Visual Fault Locator
Network Test Pen Type FTTH Tool Kit 20mw Fiber Optic Visual Fault Locator

Network Test Pen Type FTTH Tool Kit 20mw Fiber Optic Visual Fault Locator

Model NO.
BML-205-20
Price:
US $ 28.90-30.00 / pieces
Delivery:
EXW
Minimum order quantity:
2 pieces
Supply Ability:
1000 pieces / Week
Country of Origin:
china
Quantity:

Network Test Pen Type FTTH Tool Kit 20mw Fiber Optic Visual Fault Locator

Product Description

product description

Pen-based red light source, which use 650nm semiconductor laser as a light emitting device, through the constant current drive, transmit the red light which power is stable. After connecting with optical interface, the red light can enter into the multimode and single mode fiber, achieve detecting function of optical fiber fault. It is an indispensable tool for fiber-optic construction, fiber-optic network maintenance, optical device production and research.

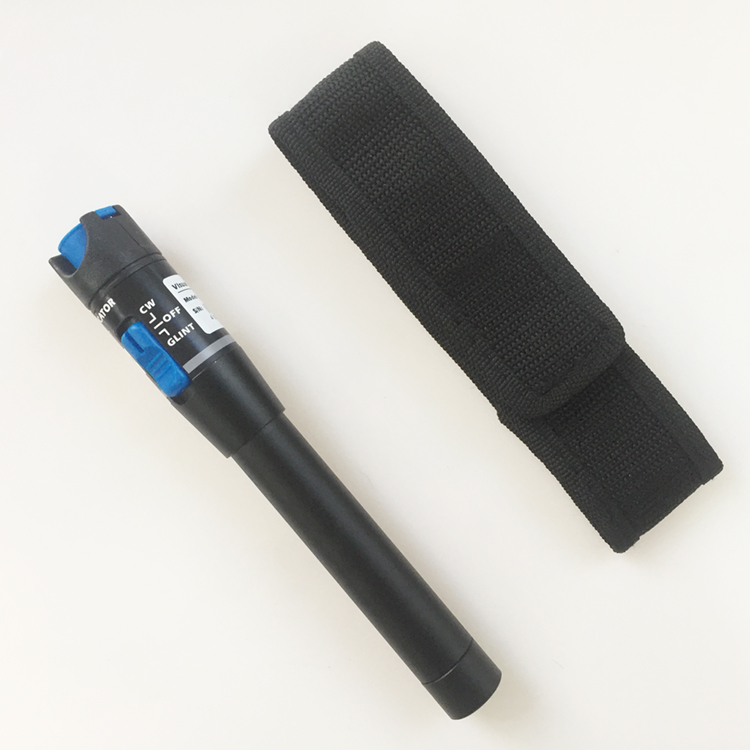

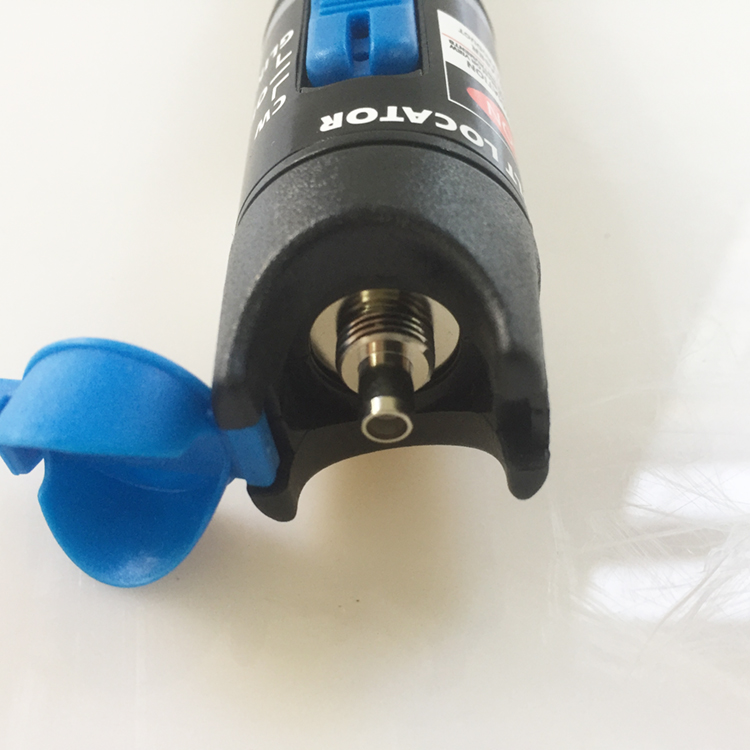

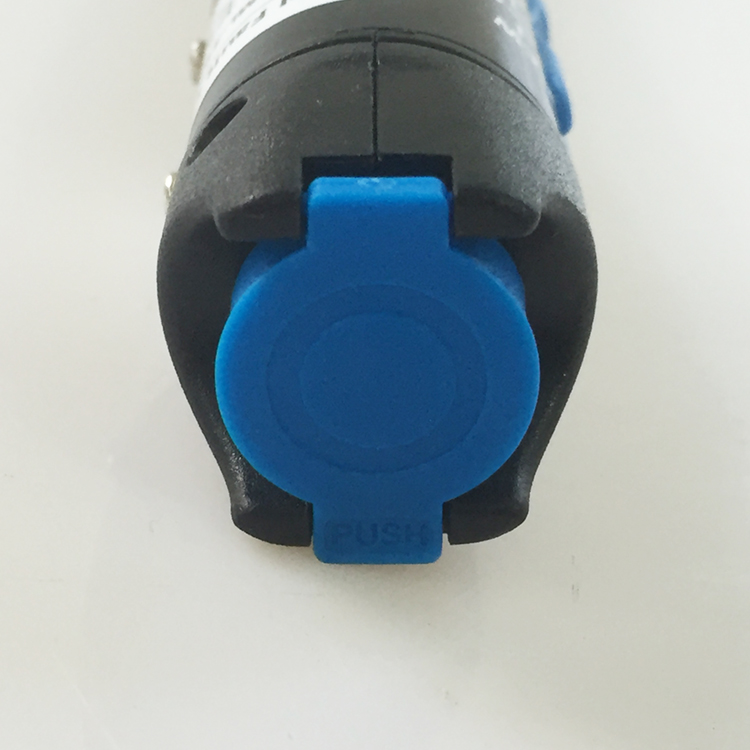

Pen type optical fiber tool kit fiber optic light source visual fault locatorPen type optical fiber tool kit fiber optic light source visual fault locator

Pen type optical fiber tool kit fiber optic light source visual fault locatorPen type optical fiber tool kit fiber optic light source visual fault locator

specification

BML-205-20
Wavelength650nm ± 20nm
Output Power>20mW
Dynamic Distance>15km
Connector2.5mm or 1.25mm Universal connector
Storage Temperature-20 -- +60 ℃, < 90%RH
Operating Temperature-10 -- +50 ℃, < 90%RH
Power SupplyAA * 2
WeightAbout 80g

Company Information

2_022_03

  • Place of Origin:China
  • Brand Name:WTT
