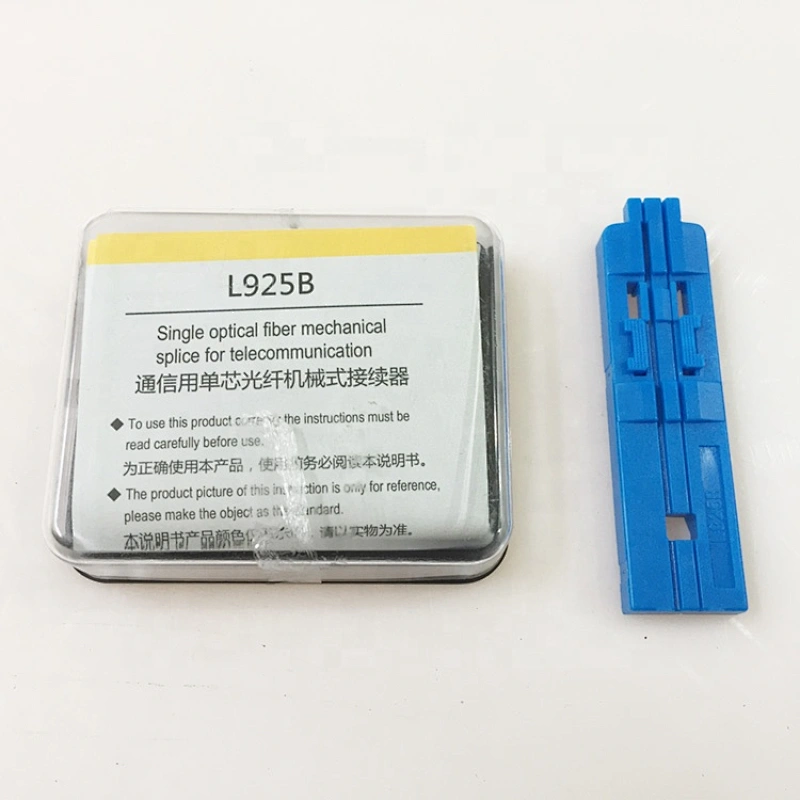

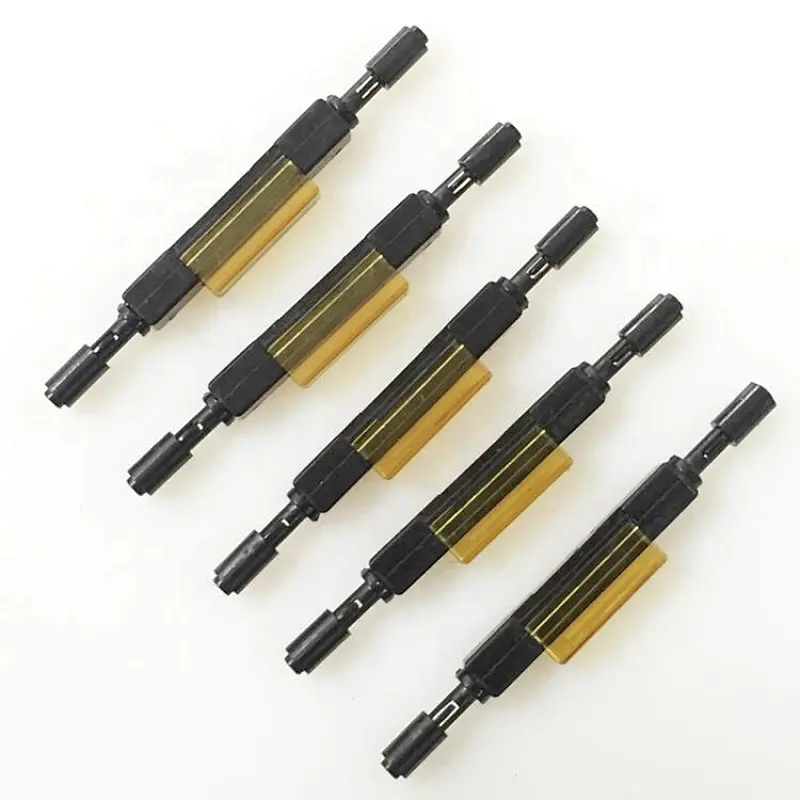

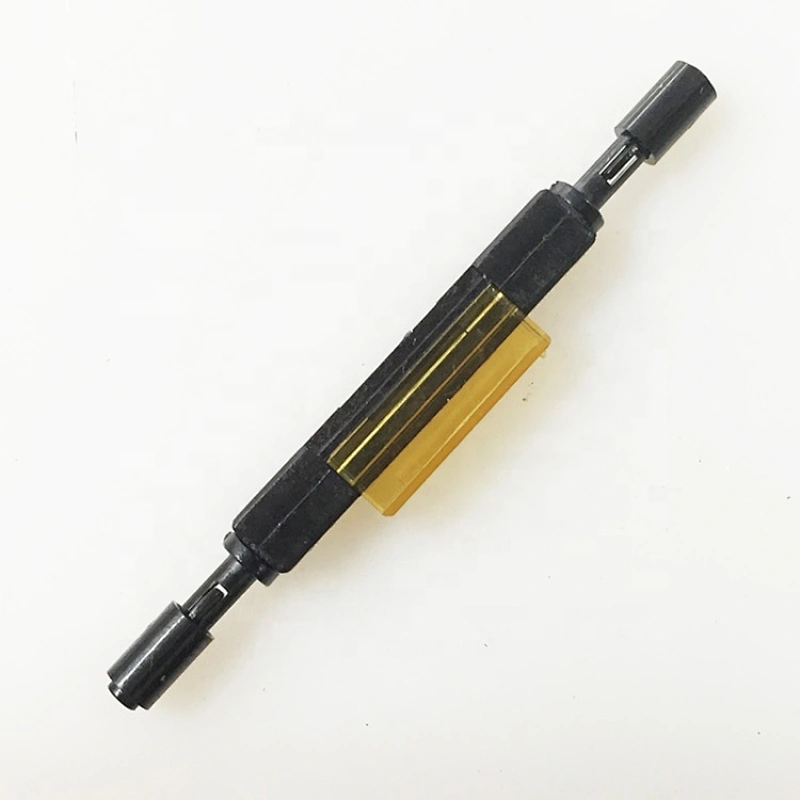

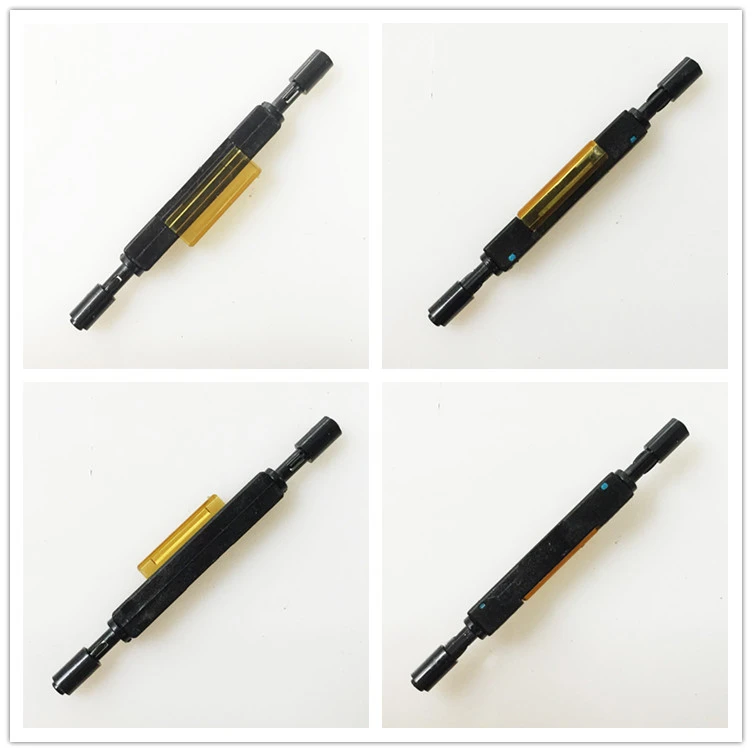

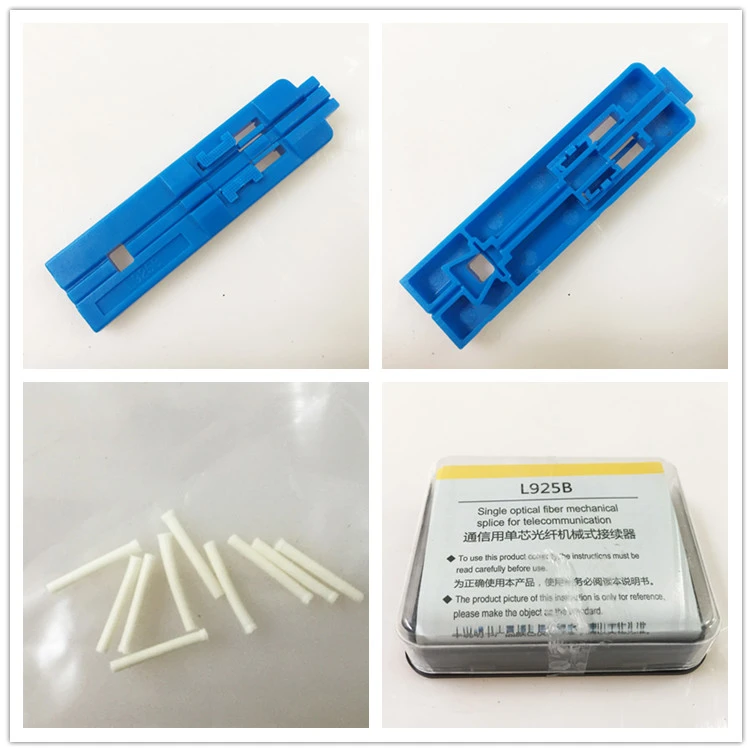

Single mode multimode cold splice fiber optic splicing kit quick connector fast
Single mode multimode cold splice fiber optic splicing kit quick connector fast
Product Description
Used for fiber butt fiber or fiber, optical fiber tail docking and fusion contrast, refers to the cable machinery through the"cold"in place of, the whole process can be finished within 2 min, succeeded by cold technology, its connection effect can weld and its insertion loss can achieve less than 0.1 dB, matching for the port to add liquid to reduce return loss, return loss to achieve less than - 60 dB, suitable for 0.9 mm and 0.25 mm fiber.
| Range | 0.25mm&0.9mm |
| Fiber diameter | 125μm(657A&657B) |
| Compact cladding diameter | 250μm, 900μm |
| Applicable mode | single mode&multimode |
| Insert loss | ≤0.1dB |
| Return loss | ≤-40dB |
| Bare fiber fastening force | >5N |
| Clamping force of tight cladding layer | >8N |
| Use temperature | -40~+75℃ |
| Repeat (10 times) | ΔIL≤0.2dBΔRL≤5dB |
- FTTH fiber to the home;
- Telecommunication, CATV engineering and maintenance;
- Construction and maintenance of integrated wiring;
- Reconstruction of optical fiber room lines
Matters needing attention
Keep hands dry and clean during installation. Use positive long guide rail and excellent tools during operation to reduce optical fiber section damage. When inserting optical fiber to connector, pay attention to method and force, so as to avoid fiber breakage.Attention to dust in construction site, too much may affect communication data
