FTTH Optical 1 24 Way Box Optical PLC 1x24 Fiber Optic Splitter
WN-AD-SC
FTTH Optical 1 24 Way Box Optical PLC 1x24 Fiber Optic Splitter
Delivery
FOB
minimum order
1 piece
Supply Ability
1000piece / Week
Country of Origin
china
Quantity:
US $7.80 - US $8.50
/ piece

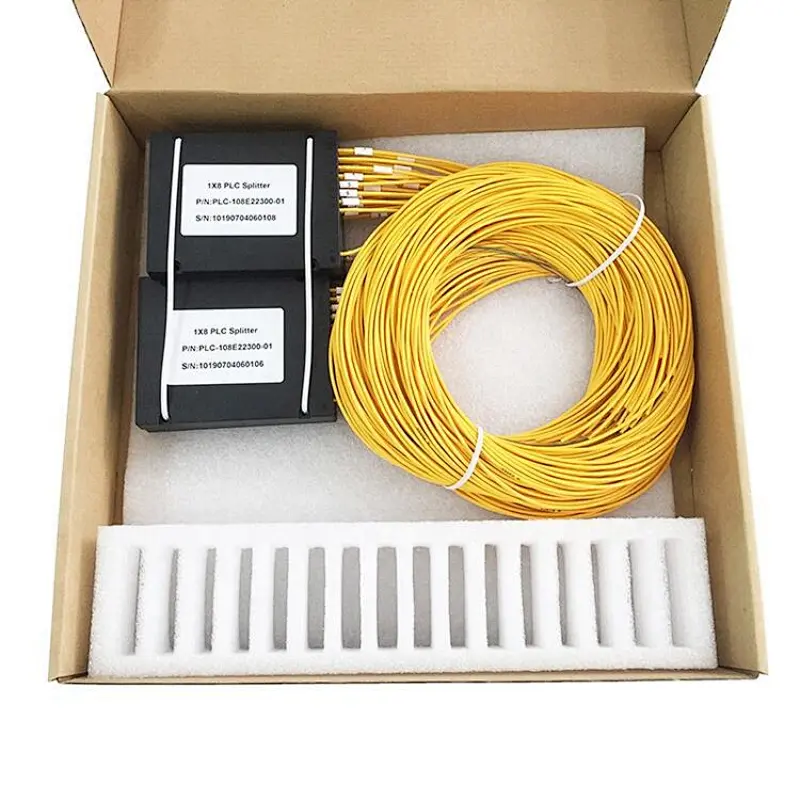

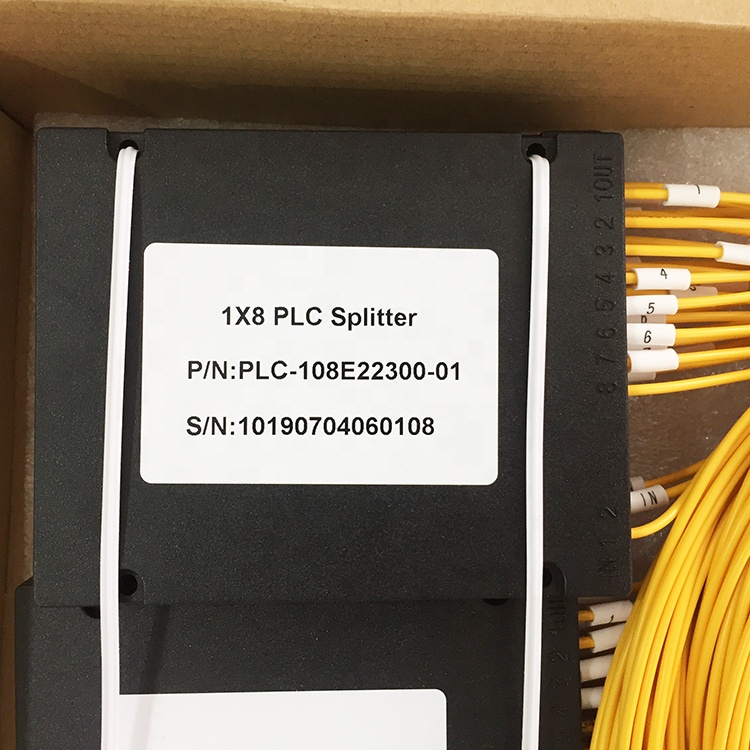

FTTH Optical 1 24 Way Box Optical PLC 1x24 Fiber Optic Splitter
Product Description
Professional custom all kinds of optical fiber branching device (cassette miniature cone inserted chip) 1, 2, 1, 4, 1 points 8 16, 32, 2 points, 1 points, 2, 2, 2, 4, 2 points 16 minutes and 32 fiber optical splitter can customize any length according to customer demand, customized various joint: FC, SC, ST, LC, etc., the client may choose any material: G652D, G657A1, G657A2, PVC, UPC, PC, APC, etc., can also be customized according to customer requirements and drawing processing.
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength(nm) | 1260~1650 | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
| Loss Uniformit(dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Return Loss(dB)(P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity(dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40~85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature(℃) | -40~+85 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Device Dimension(mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 50×7×4 | 60×12×4 | N/A |
| Module Dimension(mm) | 100×80×10 | 120×80×18 | 141×115×18 | ||||
| Mini-Module Dimension(mm) | 50×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | N/A | ||
