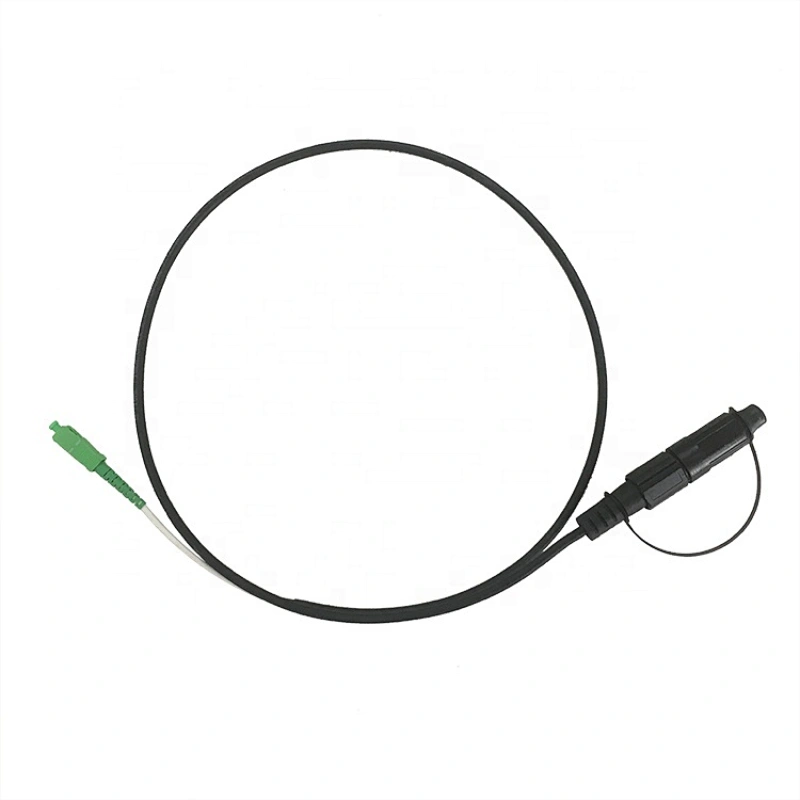

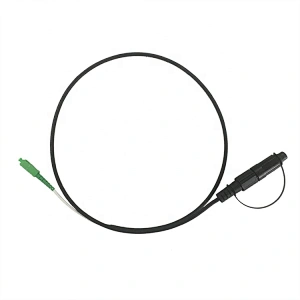

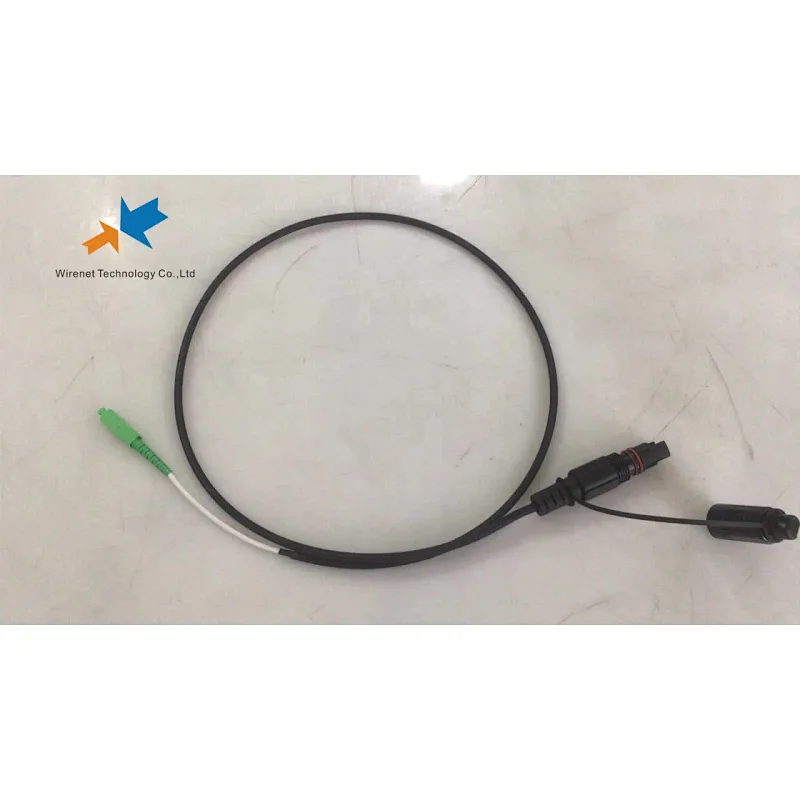

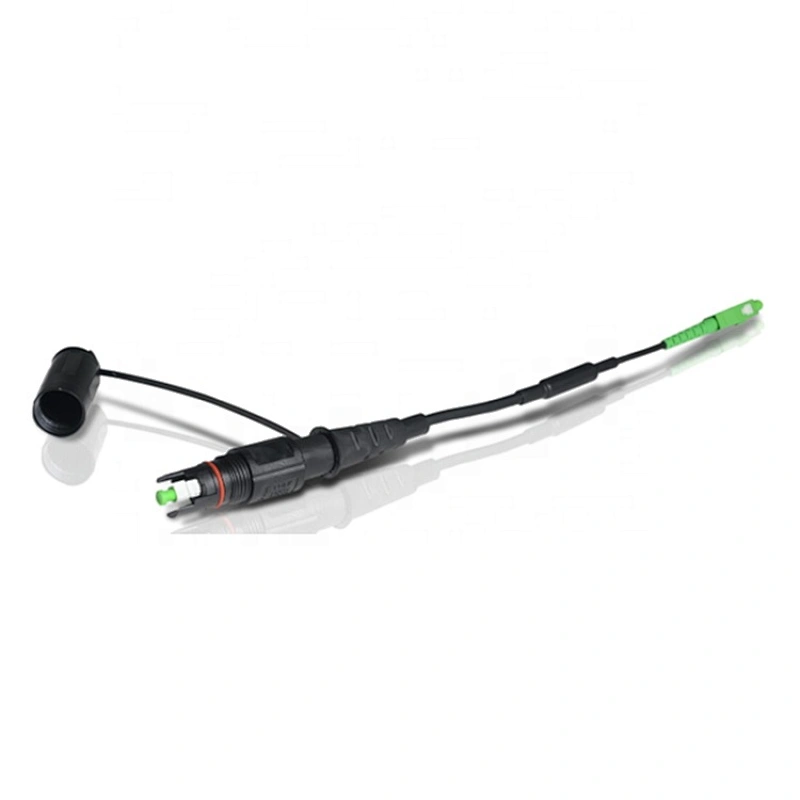

Outdoor 1 Core Mini IP SC APC SM Single Mode G657A1 LSZH Drop Cable Patch Cord with Waterproof Connector
SC APC-SC APC
Outdoor 1 Core Mini IP SC APC SM Single Mode G657A1 LSZH Drop Cable Patch Cord with Waterproof Connector
Delivery
FOB
minimum order
2 pieces
Supply Ability
1000pieces / Week
Country of Origin
china
Quantity:
US $35.00 - US $85.00
/ pieces
Outdoor 1 Core Mini IP SC APC SM Single Mode G657A1 LSZH Drop Cable Patch Cord with Waterproof Connector
Product Description
Features
- Cost effective solution for in house termination.
- Low insertion loss and added loss.
- Height of attenuation.
- IP67 water, dust proof and corrosion resistant
- The material in the jumpel cable are all-weather and UV-resistant.
- Mechanical performance: IEC 61754-4 standard.
- RoHS and REACH materials compliant.

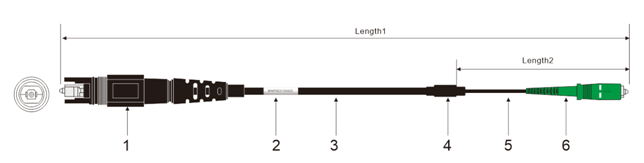

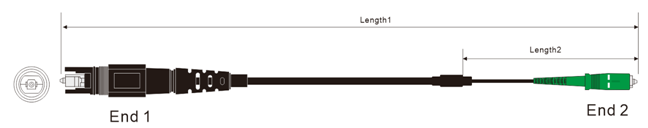

Schematic drawings
Specification for fiber optic patchcord

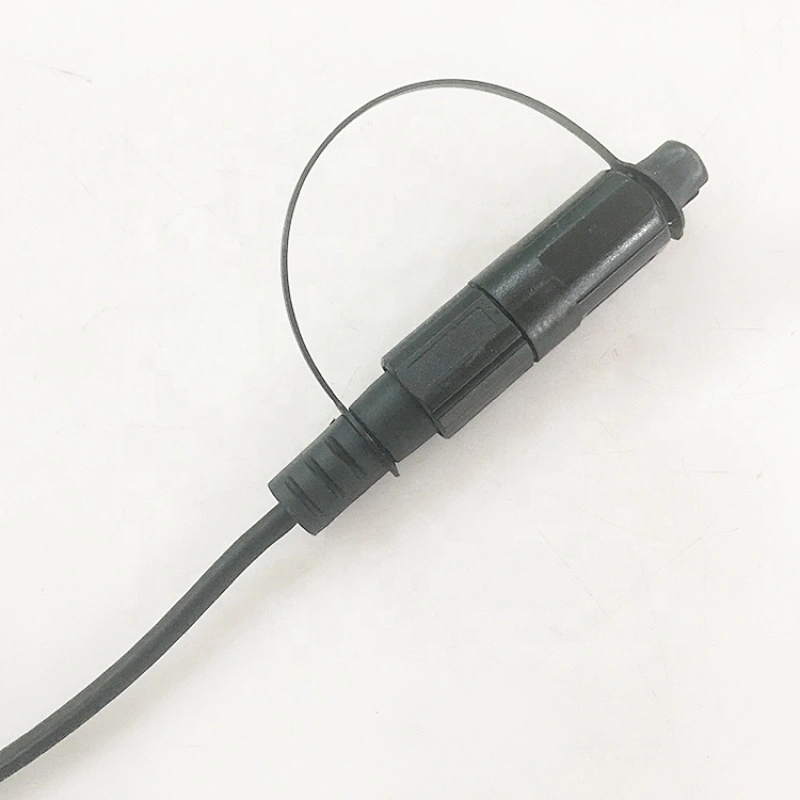

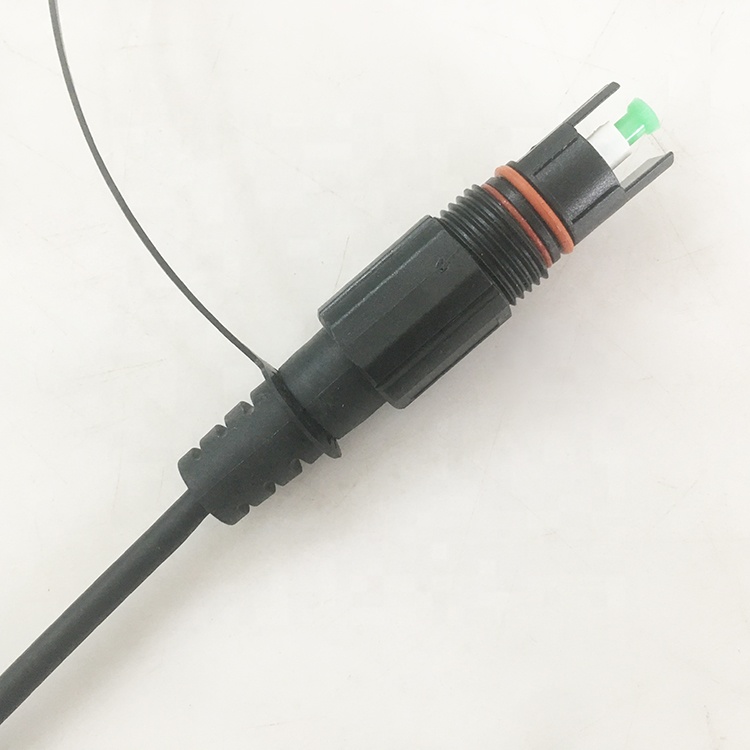

1.MINI IP SC/APC waterproot connector
2.SN label

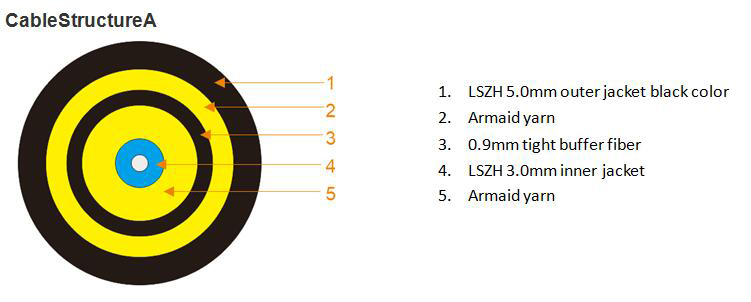

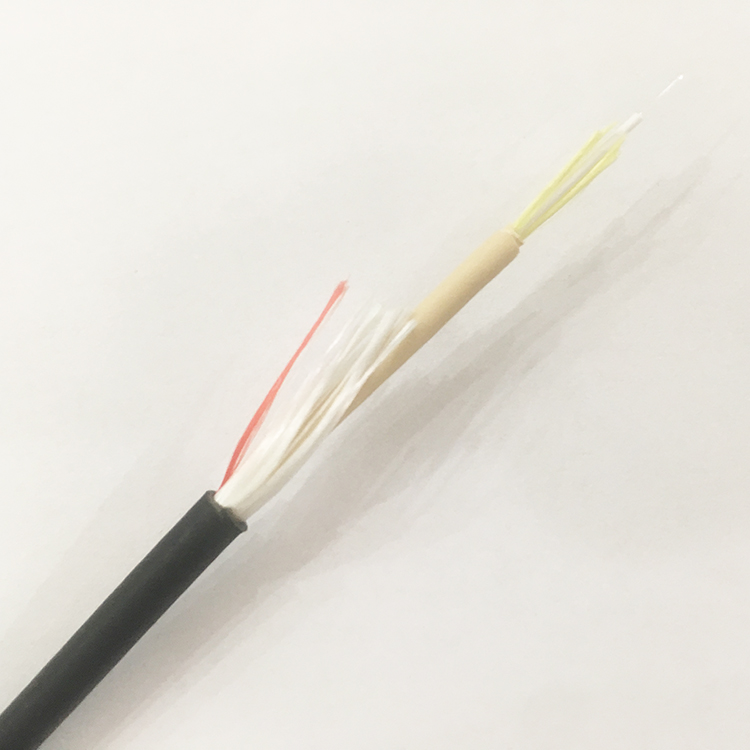

3.Outdoor Drop cable, 1core ,LSZH jacket, G.657A1 Fiber

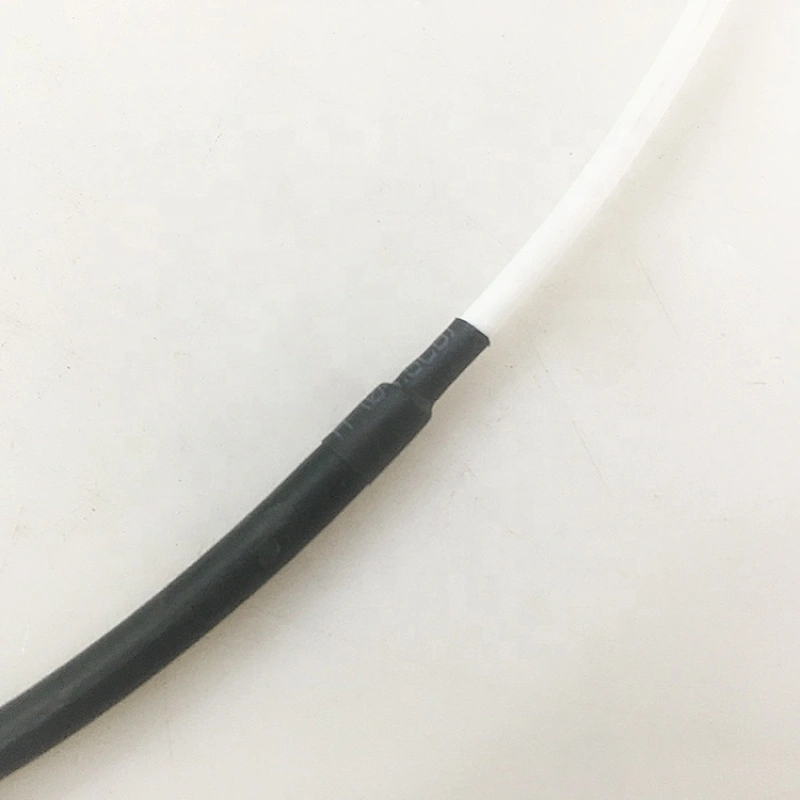

4.Heat-shrinkable protection tube

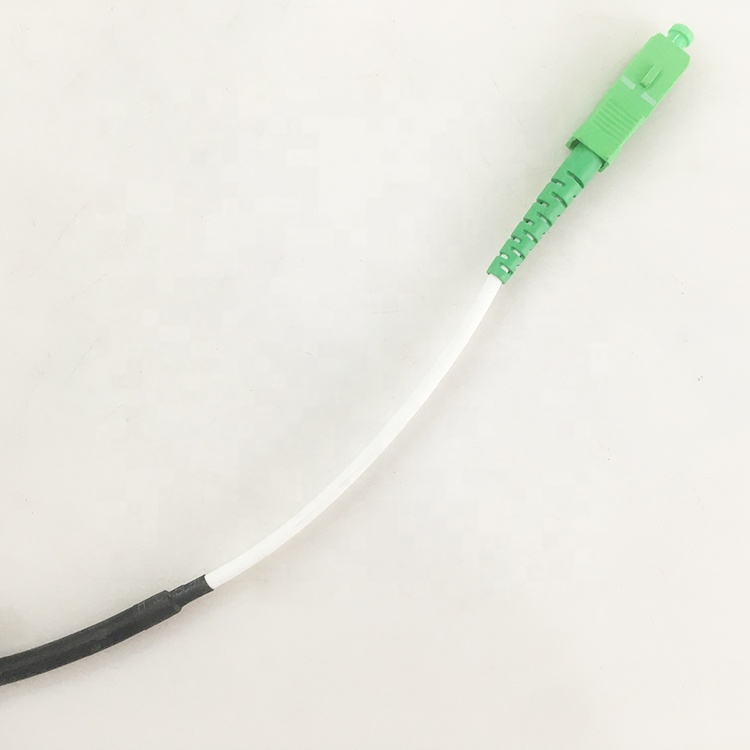

5.SC/APC simplex 3.0mm connector
* Length2=30cm
CableParametersA
Cable Count | Outsheath Diameter (MM) | Weight (KG) | Minimumallowable TensileStrength (N) | minimumallowable CrushLoad (N/100mm) | MinimumBending Radius (MM) | Storage temperature (℃) | |||
shortterm | longterm | shortterm | longterm | shortterm | longterm | ||||
1 | 5.0±0.2 | 27 | 800 | 400 | 2000 | 1000 | 20D | 10D | -20 to +60 |
- Multi-purpose Outdoor.
- For connection between distribution box and RRH.
- Deployment in Remote Radio Head cell tower applications.

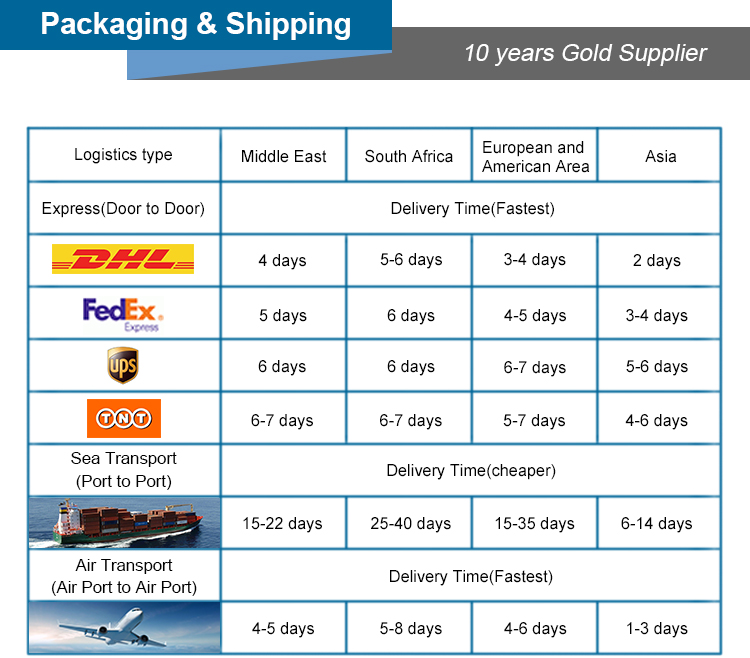

Packaging & Shipping
