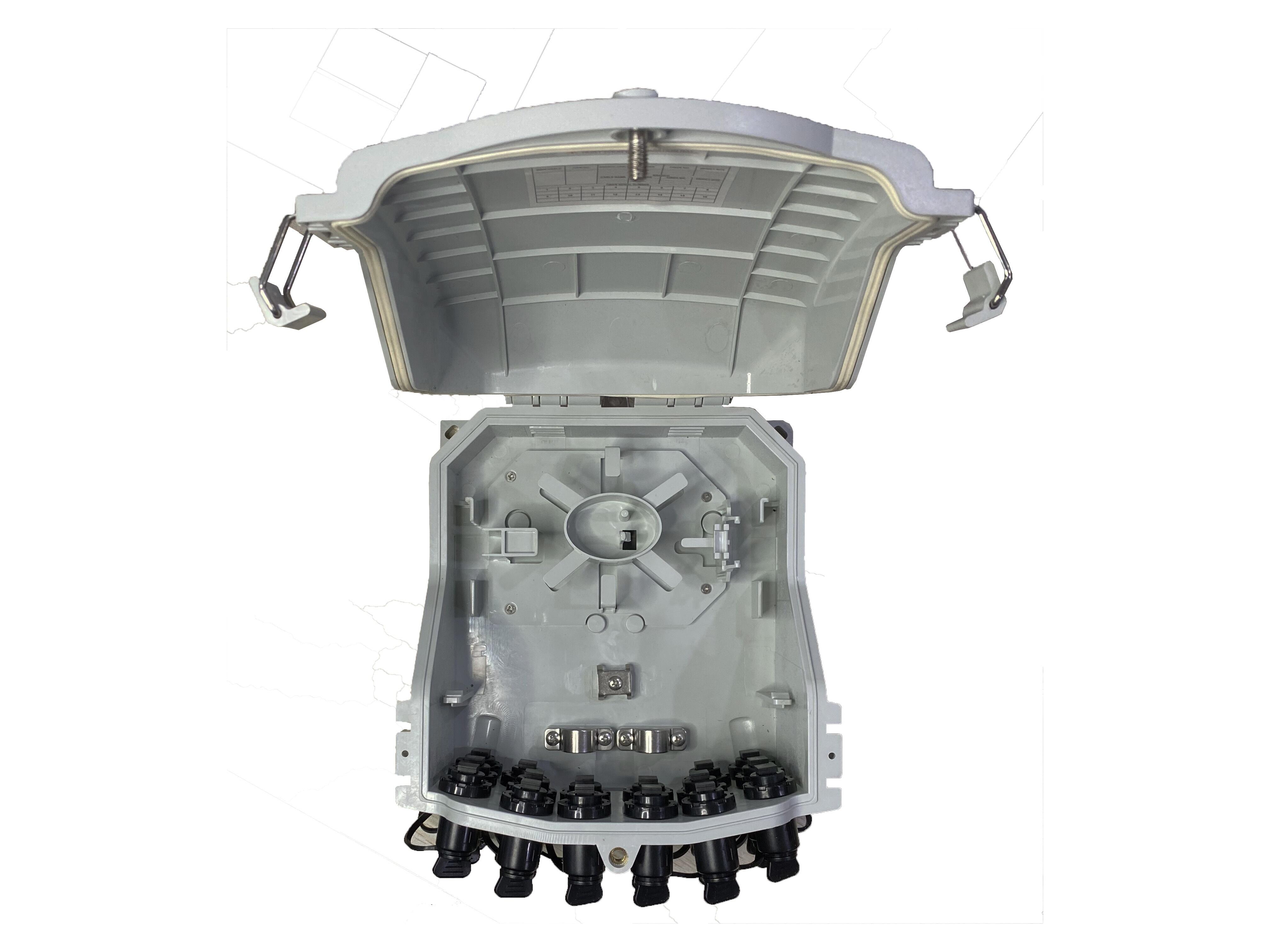

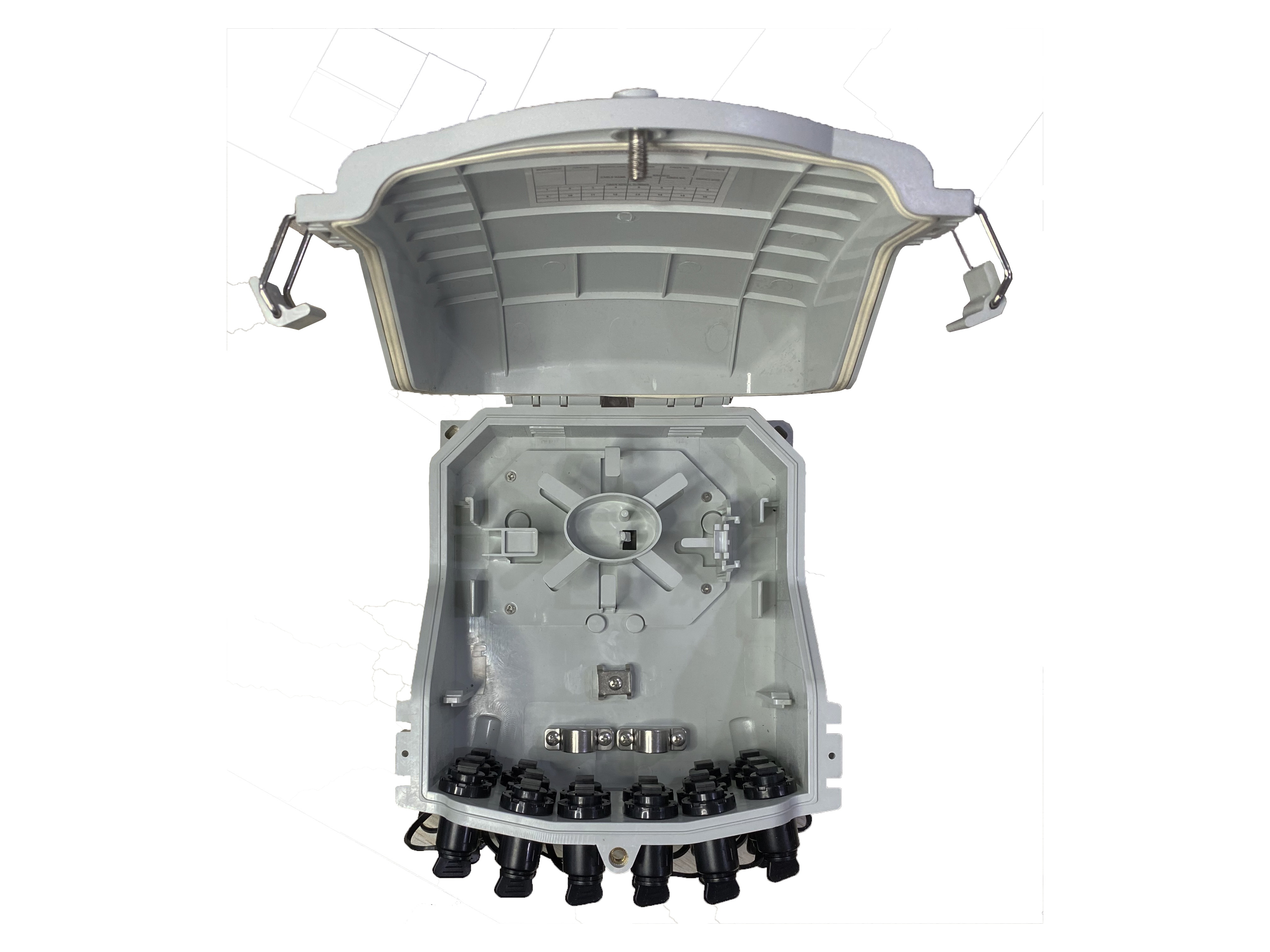

8 16 core outdoor ip68 ftth terminal box enclosure for mini SC Huawei waterproof patch cord
8 16 core outdoor ip68 ftth terminal box enclosure for mini SC Huawei waterproof patch cord

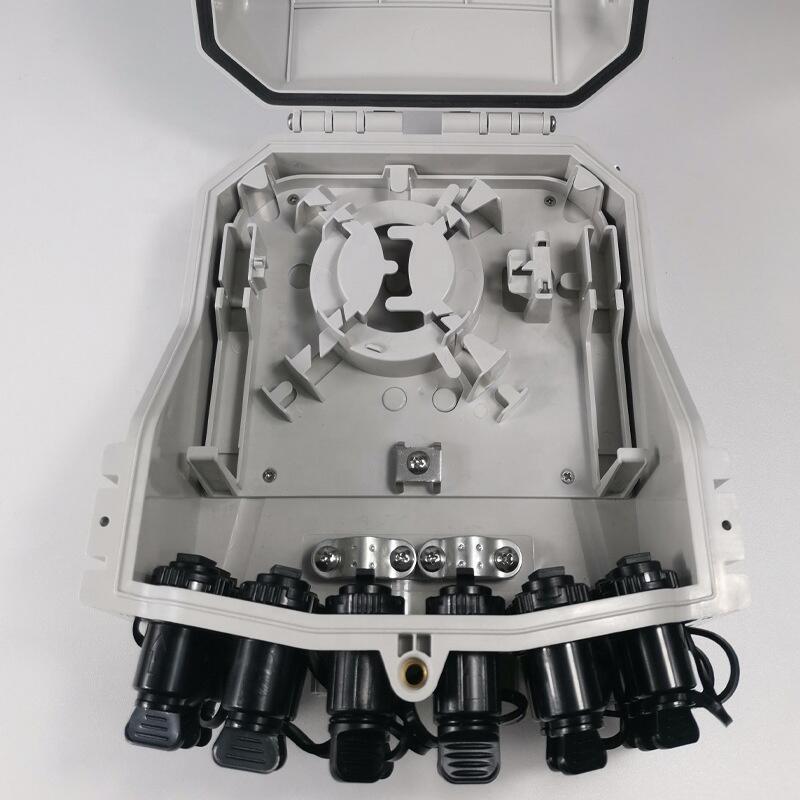

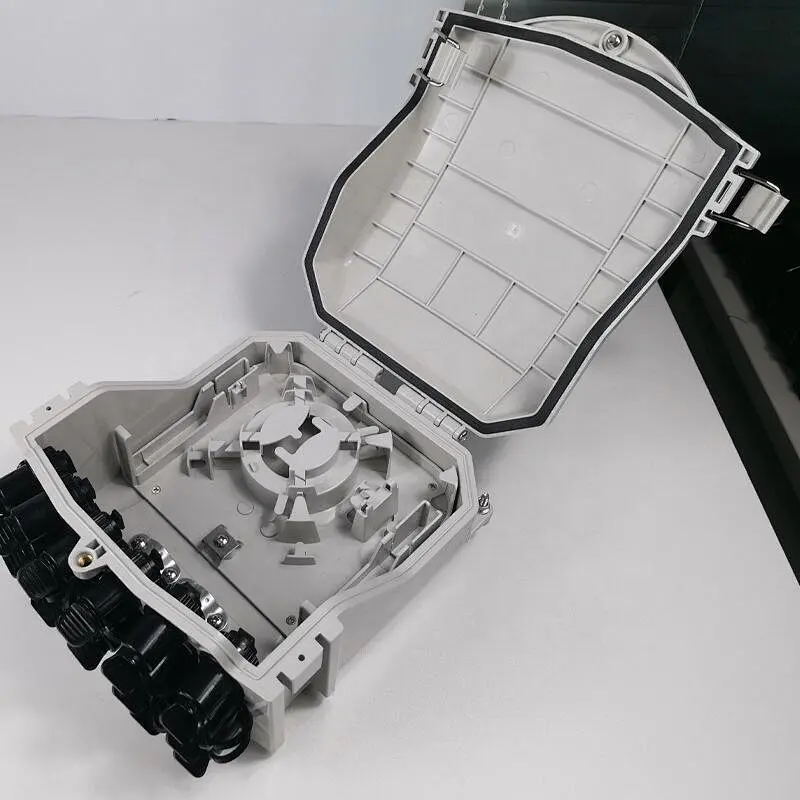

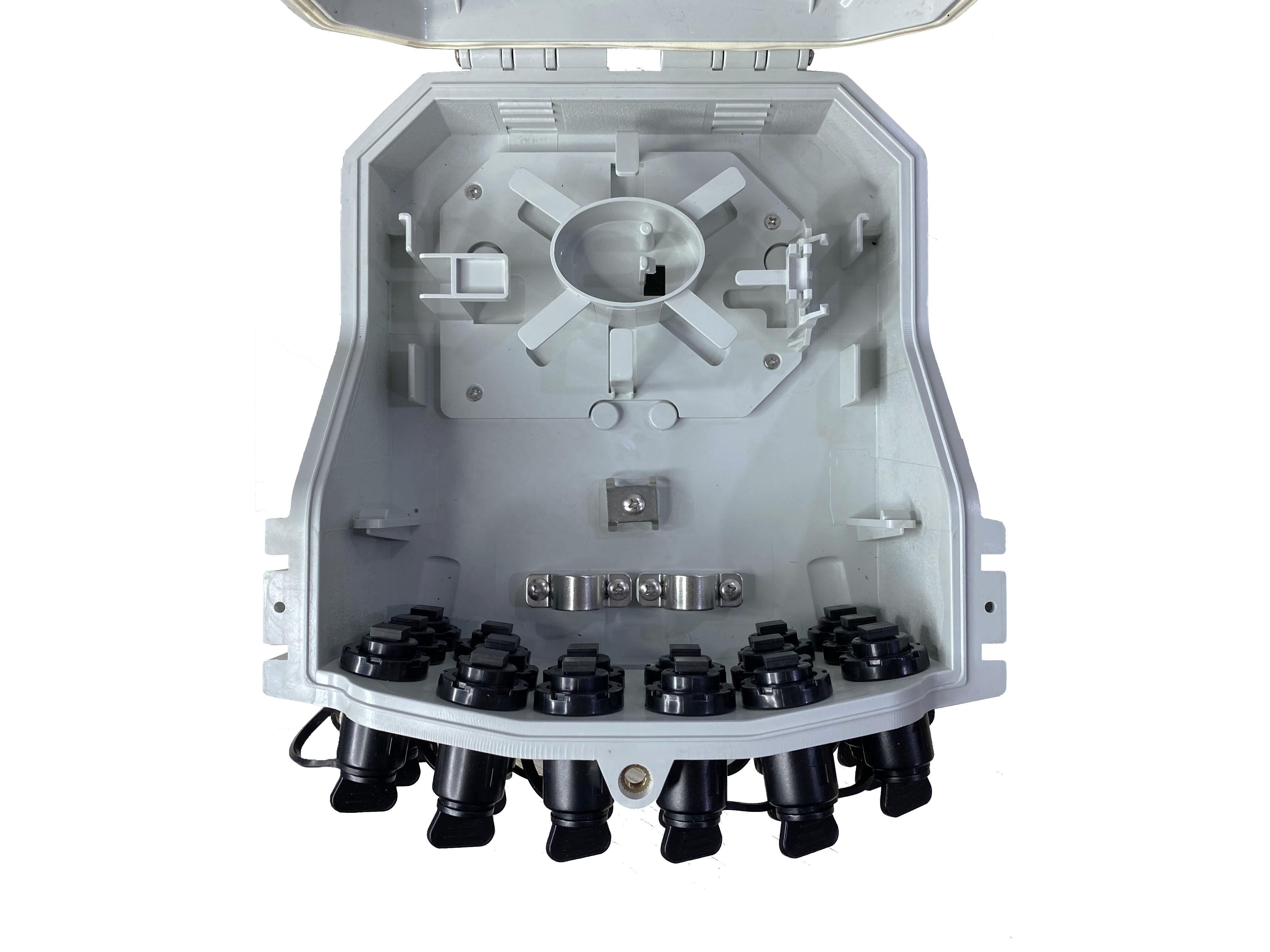

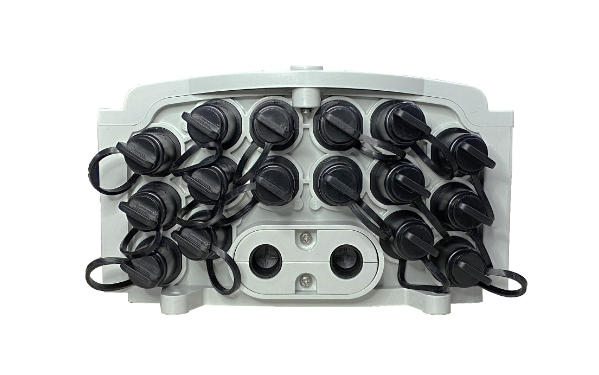

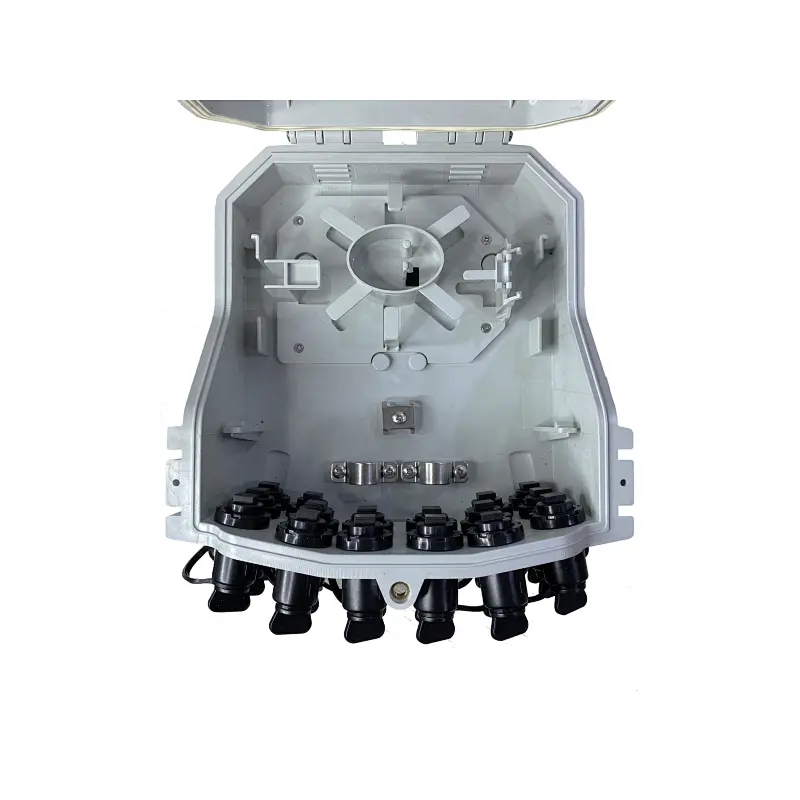

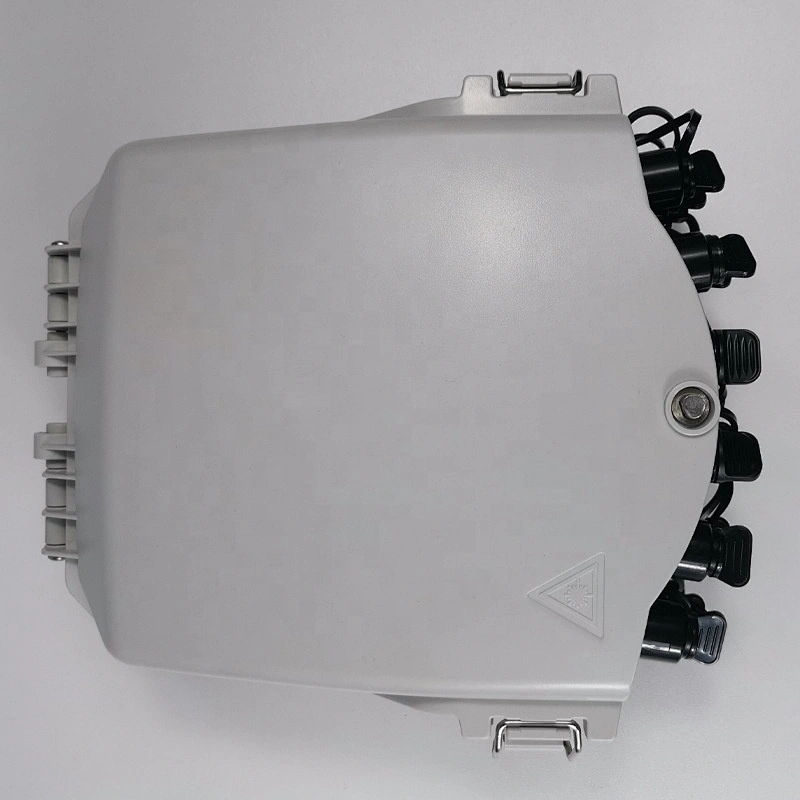

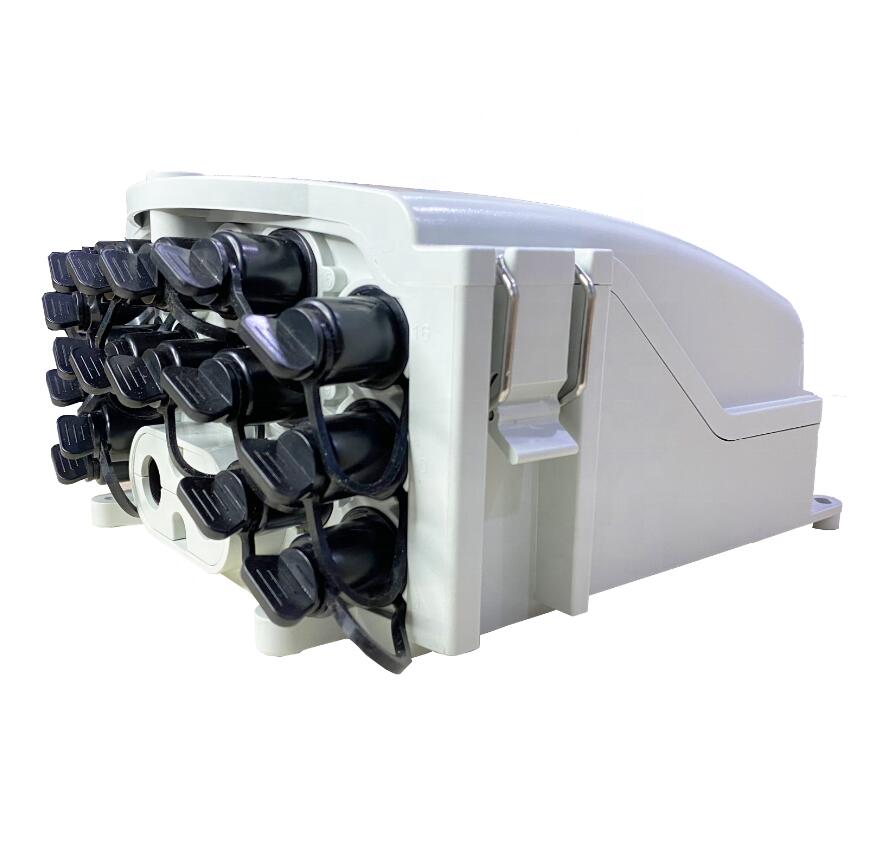

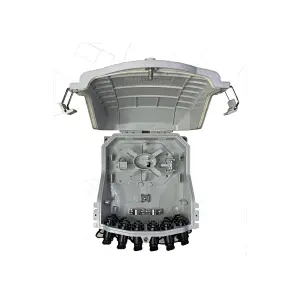

Product Description
The water proof terminal box is used as a termination point for the feeder cable to connect with water proof drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution all in one.
4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
Specification:
| Material | PC+ABS |
| Dimension (Pic 1) A*B*C(mm) | 208*241*117mm |
| Max Capacity | 16 ports SC |
| Input cable diameter(mm) | Max 18mm |
| Color | Grey |
| Working temperature | -40℃~+85℃ |
| Relative humidity | ≤85%(+30℃) |
| Atmospheric pressure | 70KPa~106Kpa |
| Installation Size(Pic 2) (mm) | D*E*F 179*212*126 |
Thunder-proof technical datasheet
1. The insulation resistance between the grounding device and the metal parts of the box is no less than 2 x 102 x 102 MΩ/500V(DC);IR≥2 x 102 x 102MΩ/500V
2. The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V

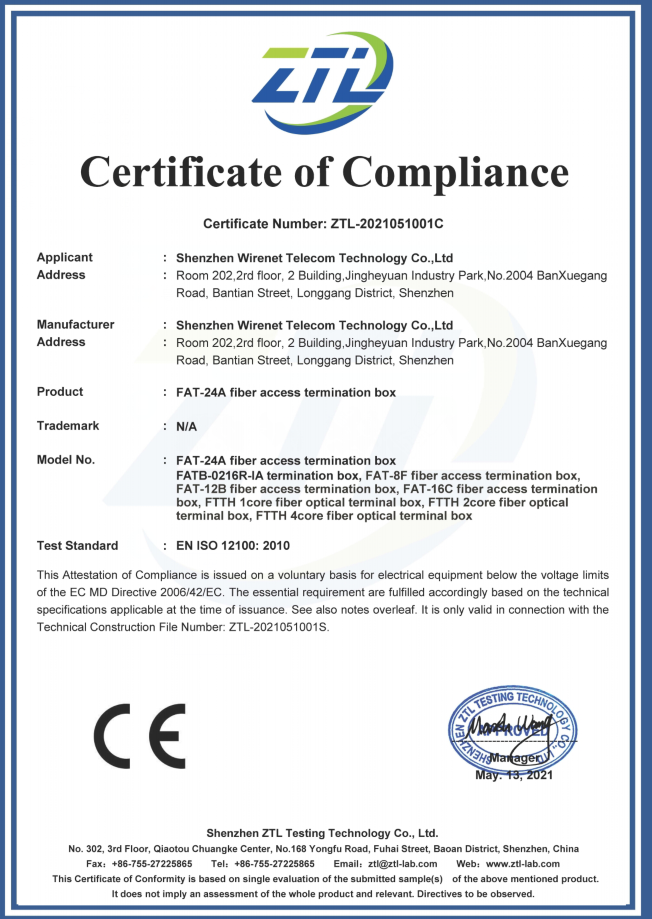

Certifications
