400G 100m OSFP112 SR4 Optical Transceiver
WTOS-854H-M1B
WTOS-854H-M1B is an four-Channel, Parallel, Pluggable, Fiber-Optic OSFP for 400Gigabit Ethernet applications. This transceiver is a high performance module for short-range data communication and interconnect application.It integrates four data lanes in each direction with 4x53.125GBd.
Quantity:
Product Description
Multimode Fiber,400G,100m,OM3/OM4
Product Features
* 4x100G PAM4 retimed 400GAUI-4 electrical interface
* MPO- 12 APC connector
* 4 channel VCSEL arrays and 4 channels PIN photo detector arrays
* Maximum link length of 60m on OM3 or 100m on OM4
* Hot Pluggable OSFP form factor
* Compliant to OSFP Module Specification Rev 5.0
* Compliant with CMIS 5.2
* Compliant with IEEE 802.3db
* Compliant to IEEE 802.3ck
* Less than 8W in temperature range of 0 to 70℃
Applications
* 400GBASE-SR4 400G Ethernet
* Data center
General Description
WTOS-854H-M1B is an four-Channel, Parallel, Pluggable, Fiber-Optic OSFP for 400Gigabit Ethernet applications. This transceiver is a high performance module for short-range data communication and interconnect application. It integrates four data lanes in each direction with 4x53.125GBd. The length of OSFP SR4 is up to 60 meters over OM3 MMF or 100 meters over OM4 MMF. This module is designed to operate over multimode fiber systems
using a nominal wavelength of 850nm.

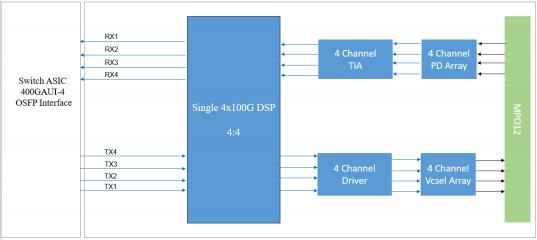

Functional Blcok Diagram

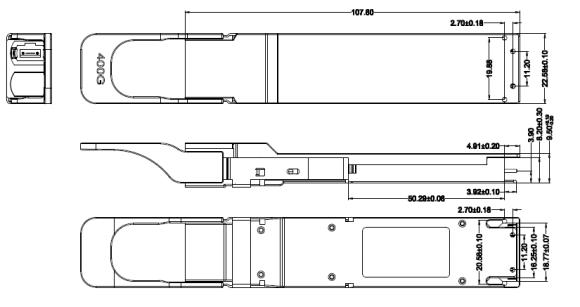

Mechanical Dimensions

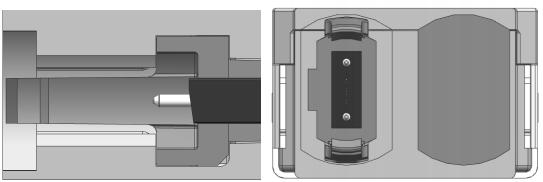

Optical interface requirement
The optical port provide MPO12 APC as follow
