QSFP56 Multi-mode Optical Transceiver

200G QSFP56 Multi-mode Optical Transceiver

WTQ5D-85F4-M1B
Multi-mode,200G,100m,850nm,MPO interface
Quantity:
Contact Now
add to cart

Product Description

Multi-mode,200G,100m,850nm,MPO interface

Product Features

*  Hot-pluggable QSFP form factor
*  Compliant to CMIS V4.0
*  Case temperature range of 0℃to +70℃
*  Maximum link length of 100m on OM4 fiber with KP4 FEC
*  +3.3V single power supply
*  Power dissipation < 6W l Operating case temp
*  Commercial: 0°C to +70 °C
*  MPO-12 APC connector
*  RoHS compliant

Applications

* 200GBASE-SR4 Ethernet

Ordering Information

     Part Number

Data Rate (Gb/s)

Wavelength (nm)

Transmission Distance(m)

Fiber Type

DDMI

Connector

Temperature (℃)

WTQ5D-85F4-M1B

212.5

850

100m

MMF

YES

MPO 1x12 APC

0℃~+70℃

Note:

1.OM4 fiber, 70m for OM3 fiber

2.Case Temperature after assembling

Electrical Characteristics

Parameter

Symbol

Unit

Min

Typ

Max

Notes

Transmitter

Signaling rate (each lane)

SR

GBPS

26.5625 ± 100 ppm

Differential data input voltage per lane

Vin,pp,diff

mV

900

-

-

Differential termination mismatchal

-

%

-

-

10

Single-ended voltage tolerance range

-

V

-0.4

-

3.3

DC common mode voltage

-

mV

-350

-

2850

Receiver

Signaling rate (each lane)

SR

GBd

26.5625 ± 100 ppm

Differential output voltage

-

mV

-

-

900

Near-end ESMW (Eye symmetry mask width)

-

UI

0.265

-

-

Near-end Eye height, differential (min)

-

mV

70

-

-

Far-end ESMW (Eye symmetry mask width)

-

UI

0.2

-

-

Far-end Eye height, differential (min)

-

mV

30

-

-

Differential termination mismatch

-

%

-

10

Transition time (min, 20% to 80%)

-

ps

9.5

-

-

DC common mode voltage

-

mV

-350

-

2850

Optical Characteristics

Parameter

Symbol

Unit

Min

Typ

Max

Notes

Transmitter

Signaling rate (each lane)

SR

GBd

26.5625 ± 100 ppm

Modulation format

-

-

PAM4

Lane wavelength

λ

nm

840

850

860

RMS spectral width

Δλ

nm

-

-

0.6

Average launch power, each lane

-

dBm

-6.5

-

4

Outer Optical Modulation Amplitude (OMAouter), each lane

-

dBm

-4.5

-

3

1

Launch power in OMAouter minus TDECQ, each lane

-

dBm

-5.9

-

-

Transmitter and dispersion eye closure for PAM4

(TDECQ), each lane

-

dB

-

-

4.5

Average launch power of OFF transmitter, each lane

-

dBm

-

-

-30

Extinction ratio

-

dB

3

-

-

Transmitter transition time, each lane

-

ps

-

-

34

Optical return loss tolerance

-

dB

-

-

12

Receiver

Signaling rate (each lane)

SR

GBd

26.5625 ± 100 ppm

Modulation format

-

-

PAM4

Lane wavelength

λ

nm

840

850

860

Damage threshold, each lane

PIN

dBm

5

-

-

Average receive power, each lane

-

dBm

-8.4

-

4

Receive power (OMAouter), each lane

-

dBm

-

-

3

Receiver sensitivity (OMAouter), each lane

-

dBm

-

-

Max(6.

5,SECQ-

7.9)

2

LOS Assert

-

dBm

-30

-

-10

LOS De-Assert

-

dBm

-

-

-9

LOS Hysteresis

-

dB

0.5

-

-

Note：

  1. Even if the TDECQ < 1.4 dB, the OMAouter (min) must exceed this value.
  2. Bit Error Ratio < 2.4x10-4, Pattern PRBS31Q

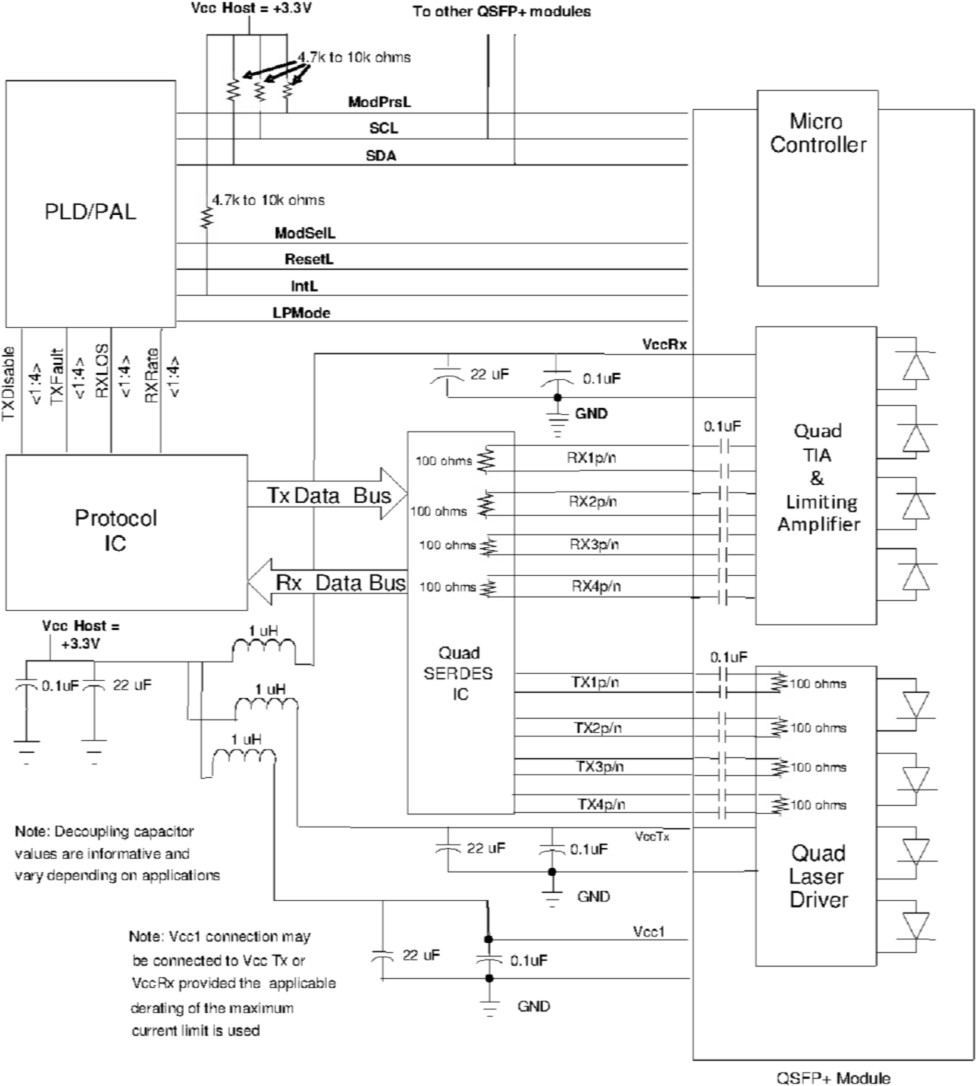

Recommended Interface Circuit

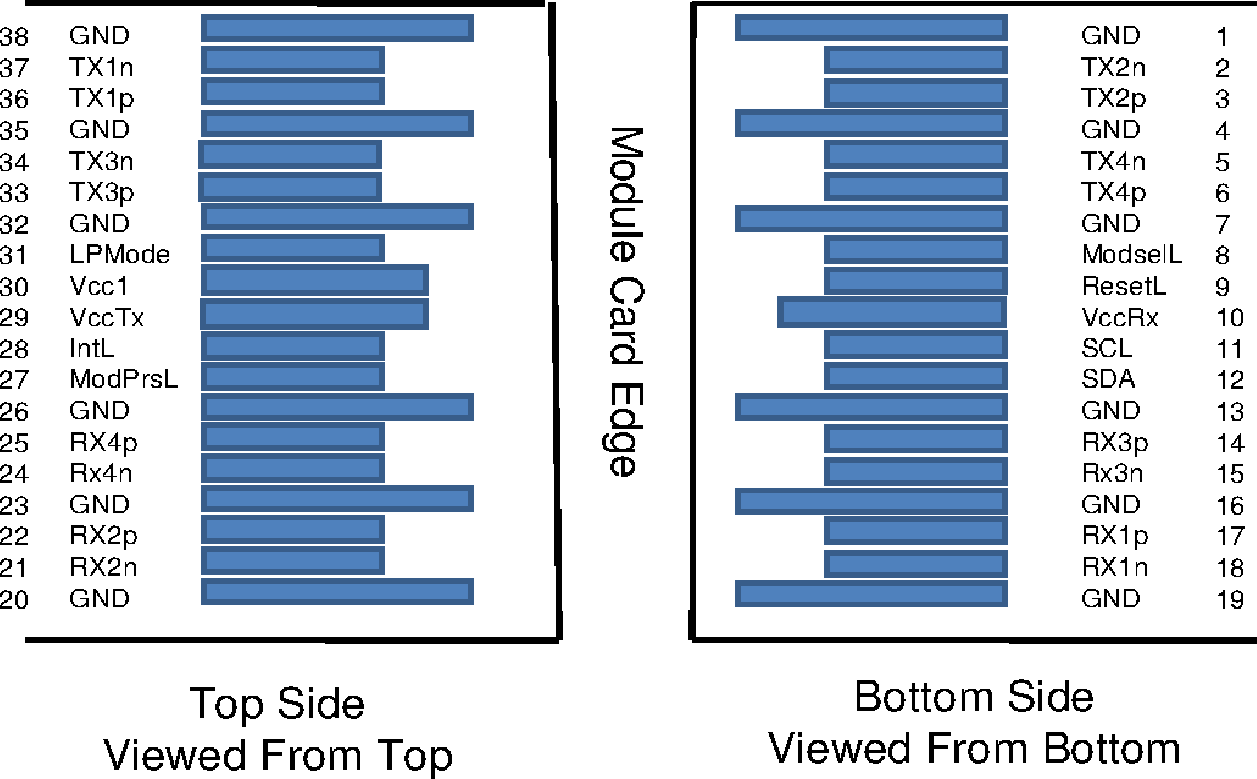

Pin arrangement

Opticalinterface arrangement

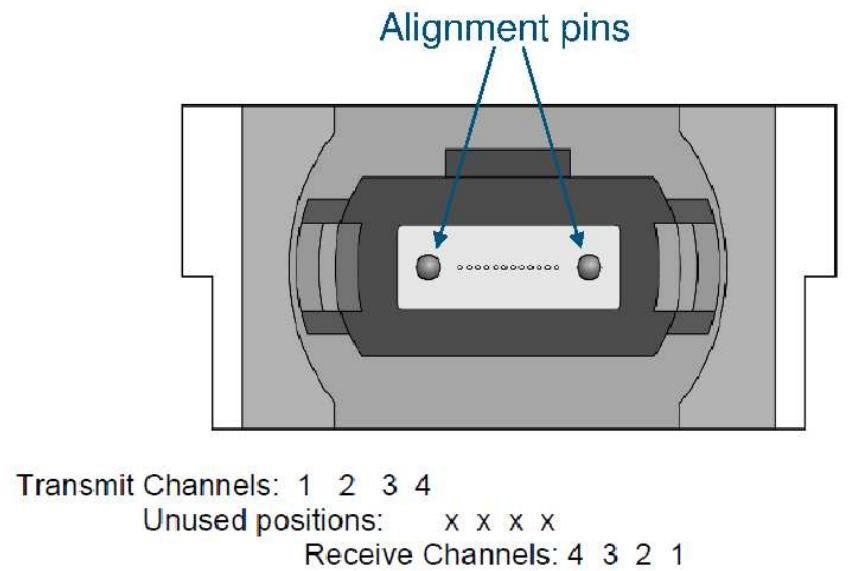

The optical port is a male MPO connector receptacle, with fiber lane assignments as shown in Figure1

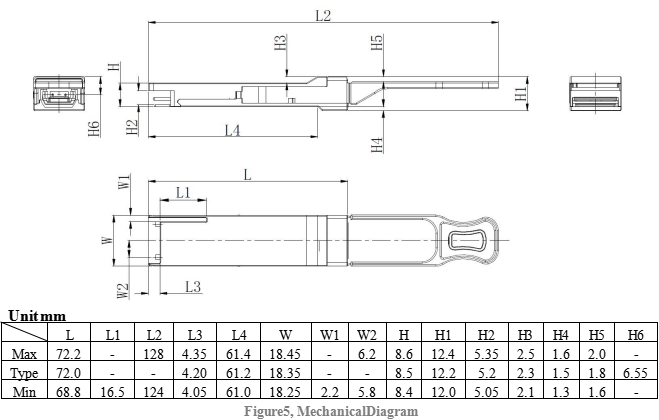

Mechanical Dimensions
