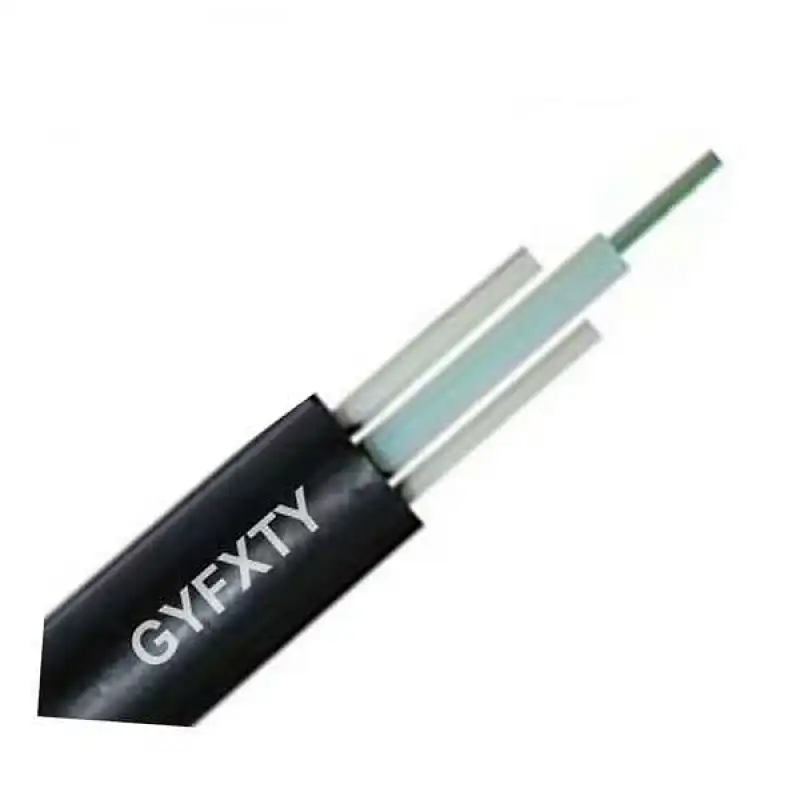

GYFXTY Outdoor Single Mode SM G652D 12f Fiber Optic Cable for Underground Pipeline
GYFXTY

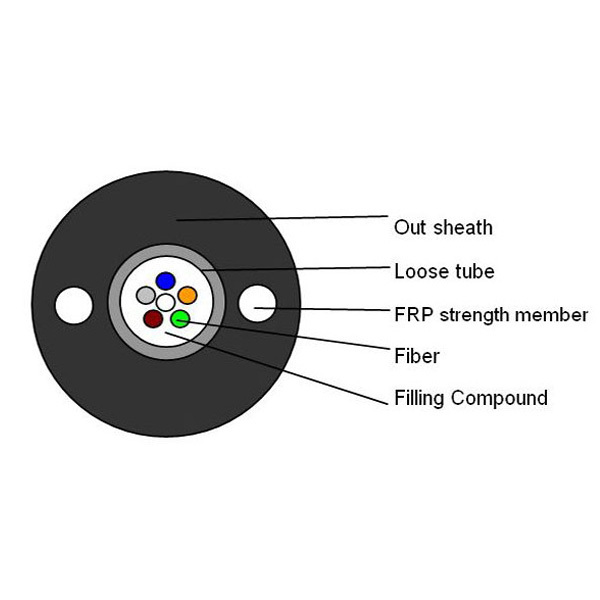

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking system. Two parallel FRP are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.
Quantity:
GYFXTY Outdoor Single Mode SM G652D 12f Fiber Optic Cable for Underground Pipeline
GYFXTY cable GYFXTY outdoor cable GYFXTY fiber optic cable G652D
Quick Details
Fiber count:12
Number of Conductors:≥ 10
Application:Underground
Fiber Type:G652D
Storage Temperature:-20~+60
Operating Temperature:-20~+60
Out sheath Diameter:12 mm
Weight:155 kg
Minimum allowable TensileStrength (N):3000 Short term/ 1000Long term
Application
GYFXTY cable GYFXTY outdoor cable GYFXTY fiber optic cable G652D
Quick Details
Fiber count:12
Number of Conductors:≥ 10
Application:Underground
Fiber Type:G652D
Storage Temperature:-20~+60
Operating Temperature:-20~+60
Out sheath Diameter:12 mm
Weight:155 kg
Minimum allowable TensileStrength (N):3000 Short term/ 1000Long term
Characteristics:
- Good mechanical and temperature performance.
- High strength loose tube that is hydrolysis resistant.
- Special tube filling compound ensure a critical protection of fiber.
- Crush resistance and flexibility.
- FRP ensure tensile strength.
- Small diameter, light weight and friendly installation.
Cable Count | Out sheath Diameter | Weight | Minimum allowable TensileStrength (N) | Minimum allowable Crush Load (N/100nm) | Minimum Bending Radius(MM) | Storage Temperature | |||
(MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | (℃) | |
12 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
Application
- Adopted to Outdoor distribution.
- Adopoted to trunk power transmission system.
- Access networ and local network in high electromagnetic interfering places
