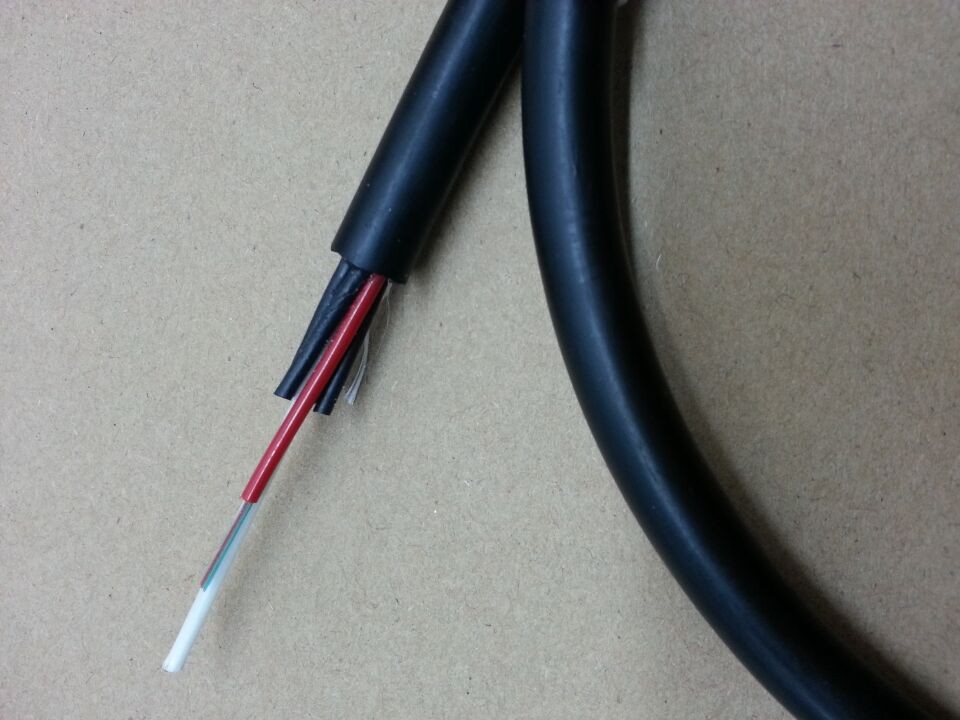

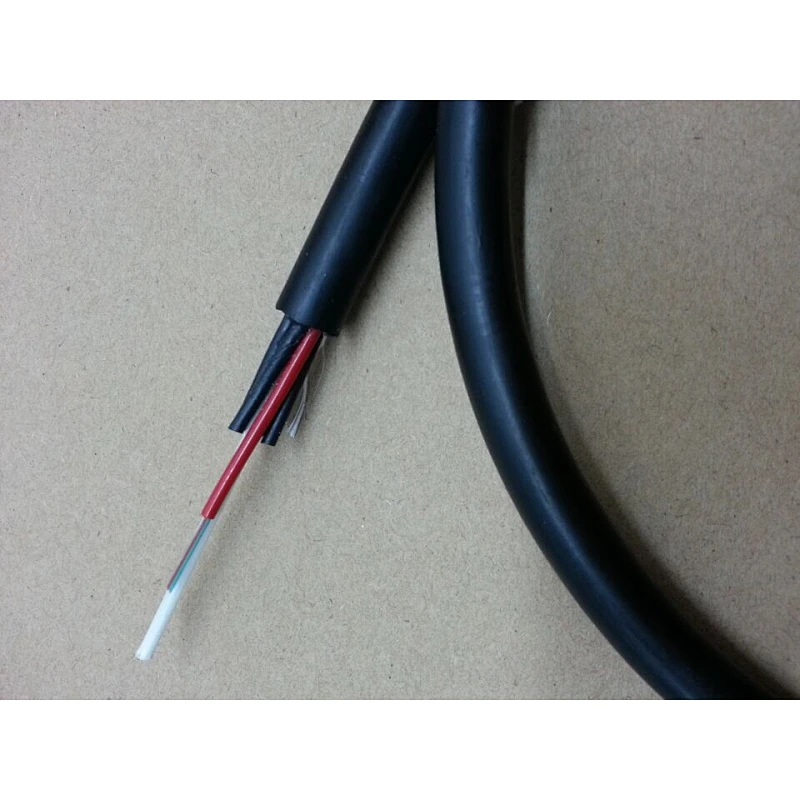

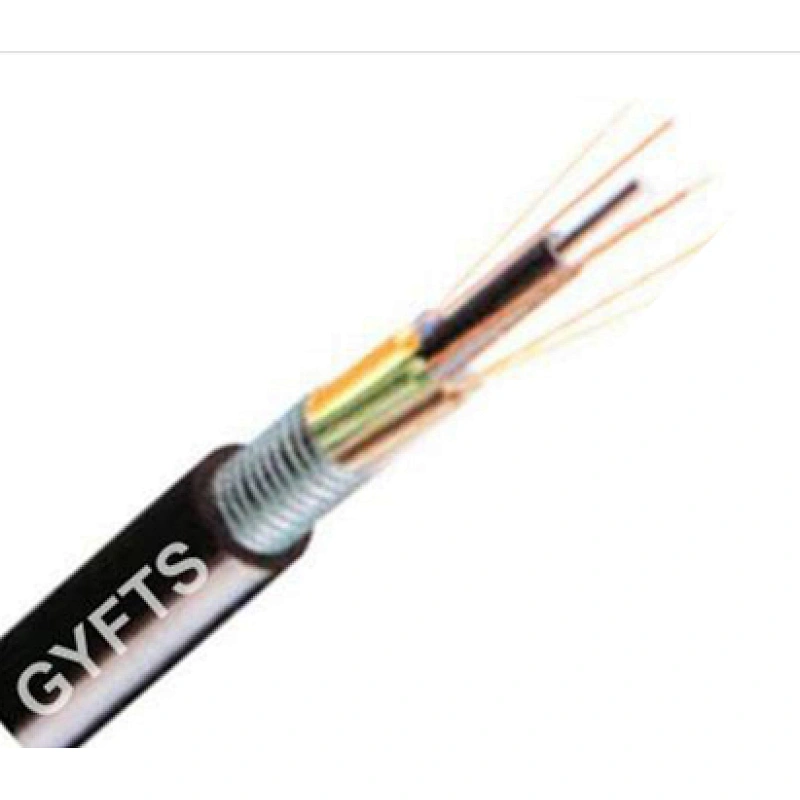

GYFTS 24f single mode sm 24 core direct buried fiber optic cable

GYFTS 24f single mode sm 24 core direct buried fiber optic cable
GYFTS cable  direct buried fiber optic cable  GYFTS fiber optic cable

Quick Details:

Number of Conductors:≥ 10
Fiber Count:24 48
Minimum allowable TensileStrength:Short term 1500N ; Long term 600N
Strength number:Corrugated Steel


Characteristics:

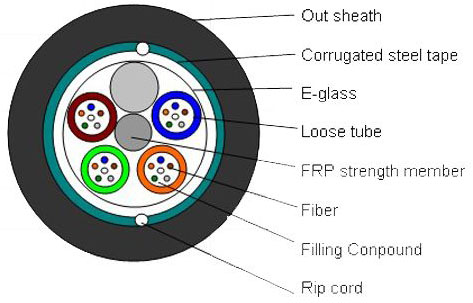

1.  FRP strength filler protect tube fiber steel tape armord.
2.  Good ultra violet radiation resistant property
3.  Good ultra violet radiation resistant property

Cable  Count	Out sheath Dia.	Weight	Minimum allowable TensileStrength   (N)		Minimum allowable Crush Load (N/100nm)		Minimum Bending Radius(MM)		Storage Temperature
	(MM)	(kg)	Short term	Long term	Short term	Long term	Short term	Long term	(°C)
24	10.5	150	1500	600	1000	300	20D	10D	-40+60
48	12.0	150	1500	600	1000	300	20D	10D	-40+60



 Application:

1.   Adopted to Outdoor distribution.
2.   Suitable for aerial .pipeline laying method
3.   Long distance and local area network communication.

 Method of installation:

•  Direct burial preferred, other methods of installation are also available
