GYXTW53
GYXTW53
Quantity:

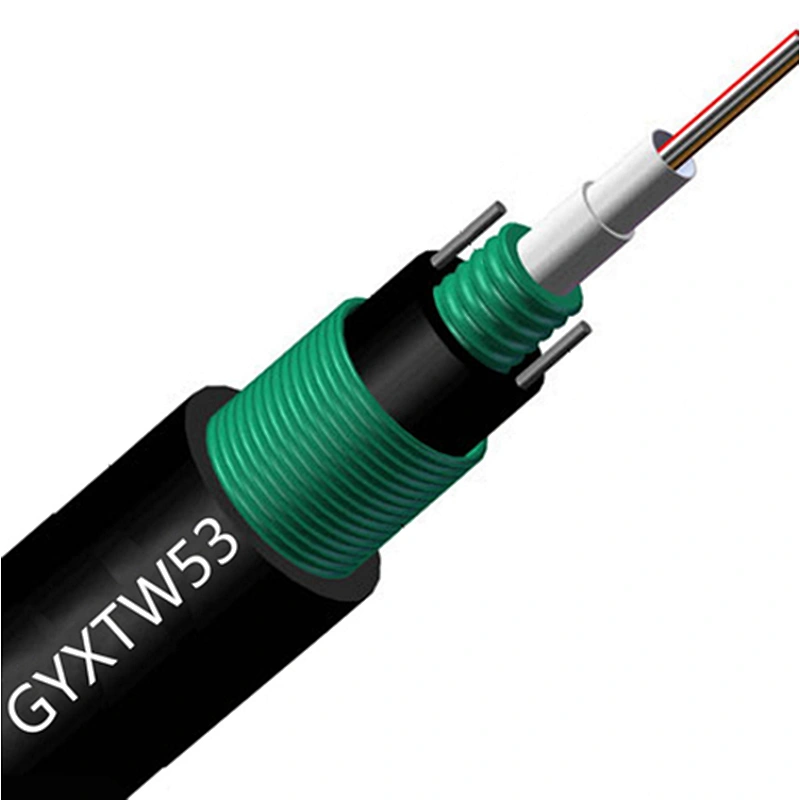

Structure
Technical Parameters
Cable Count | Out sheath Diameter | Weight | Minimum allowable TensileStrength （N） | Minimum allowable Crush Load (N/100nm) | Minimum Bending Radius(MM) | |||
(MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | |
2-12 | 12 | 165 | 3000 | 1000 | 1500 | 500 | 20D | 10D |
Packing Information
Model No. | OD(mm) | Km/Reel | N.W./Reel(kg) | Reel Size(kg) | Weight for Package by Drum | Weight for Package by Polywood |
GYXTW53 | 12 | 1 | 145 | 55*100 | 205 | 195 |
2 | 290 | 55*110 | 352 | 340 | ||
3 | 435 | 68*120 | 510 | 500 | ||
4 | 580 | 68*130 | 670 | 660 | ||
5 | 725 | 28*150 | 840 | 830 |
Remark:
Package by Drum needs to be fumigated or provide fumigation certificate when exporting
While, package by Polywood can be exported directly.
Packing pic
