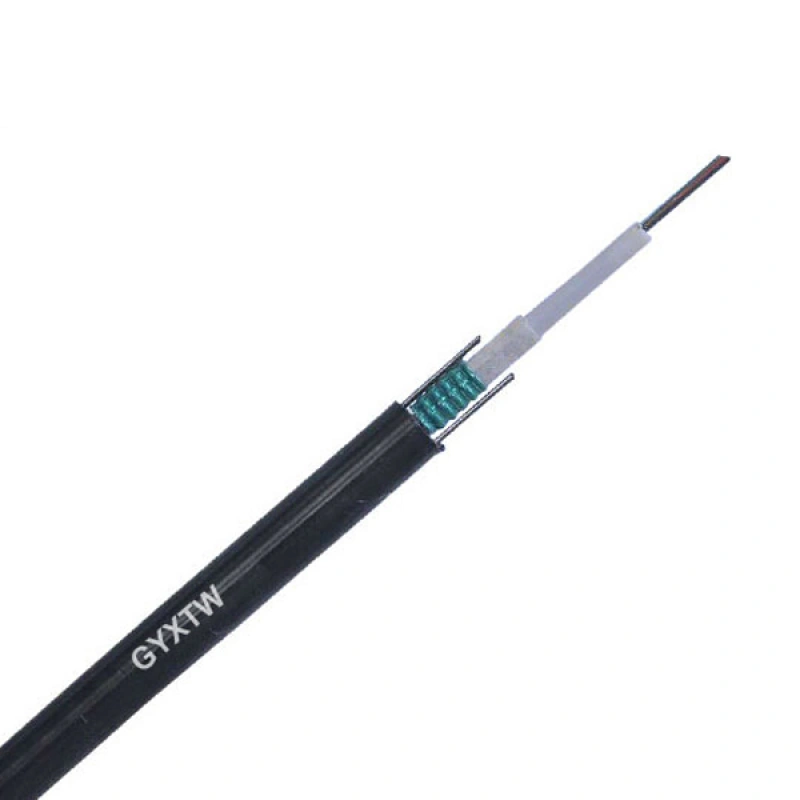

GYXTW
GYXTW
Quantity:
Structure
Technical Parameters:
Cable Count | Out sheath Diameter | Weight | Minimum allowable TensileStrength （N） | Minimum allowable Crush Load (N/100nm) | Minimum Bending Radius(MM) | Storage Temperature | |||
(MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | (℃) | |
2-12 | 8.3 | 78 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
Packing Information
Model No. | OD(mm) | Km/Reel | N.W./Reel(kg) | Reel Size(kg) | Weight for Package by Drum (kg) | Weight for Package by Polywood (kg) |
GYXTW | 8.0 | 1 | 72 | 55*75 | 103 | 100 |
2 | 144 | 55*75 | 175 | 172 | ||
3 | 216 | 55*100 | 276 | 260 | ||
4 | 290 | 55*110 | 352 | 340 | ||
5 | 360 | 55*120 | 430 | 420 |
Remark:
Package by Drum needs to be fumigated or provide fumigation certificate when exporting
While, package by Polywood can be exported directly.
Packing pic
