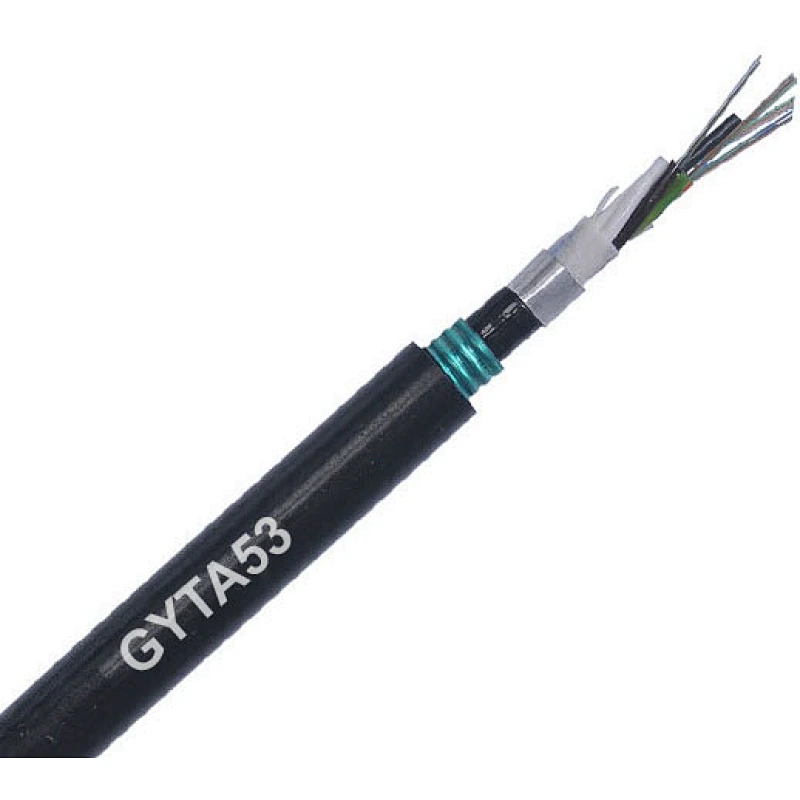

GYTA53
GYTA53
Quantity:
Structure
Technical Parameters:
Cable Count | Out sheath Diameter | Weight | Minimum allowable TensileStrength （N） | Minimum allowable Crush Load (N/100nm) | Minimum Bending Radius(MM) | |||
(MM) | (kg) | Short term | Long term | Short term | Long term | Short term | Long term | |
24-42 | 14.5 | 155 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
48-72 | 15.5 | 210 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
96 | 16.5 | 275 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
144 | 19.6 | 345 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
Packing Information
Model No. | OD(mm) | Km/Reel | N.W./Reel(kg) | Reel Size(kg) | Weight for Package by Drum (kg) | Weight for Package by Polywood (kg) |
GYTA53 | 14.0 | 1 | 155 | 55*100 | 215 | 200 |
2 | 310 | 68*110 | 375 | 365 | ||
3 | 465 | 68*130 | 550 | 540 | ||
4 | 620 | 68*145 | 725 | 715 | ||
5 | 780 | 68*160 | 910 | 900 |
Remark:
Package by Drum needs to be fumigated or provide fumigation certificate when exporting
While, package by Polywood can be exported directly.
Packing Pic
