Fiber Optic Pigtail 12 color 0.9mm
Fiber Optic Pigtail 12 color 0.9mm

Fiber Optic Pigtail 12 color 0.9mm

Model NO.
12C
Quantity:

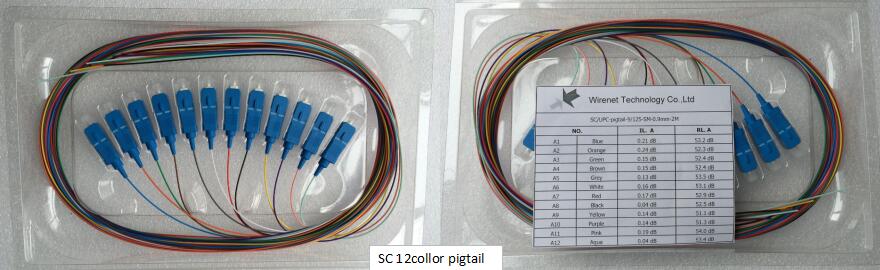

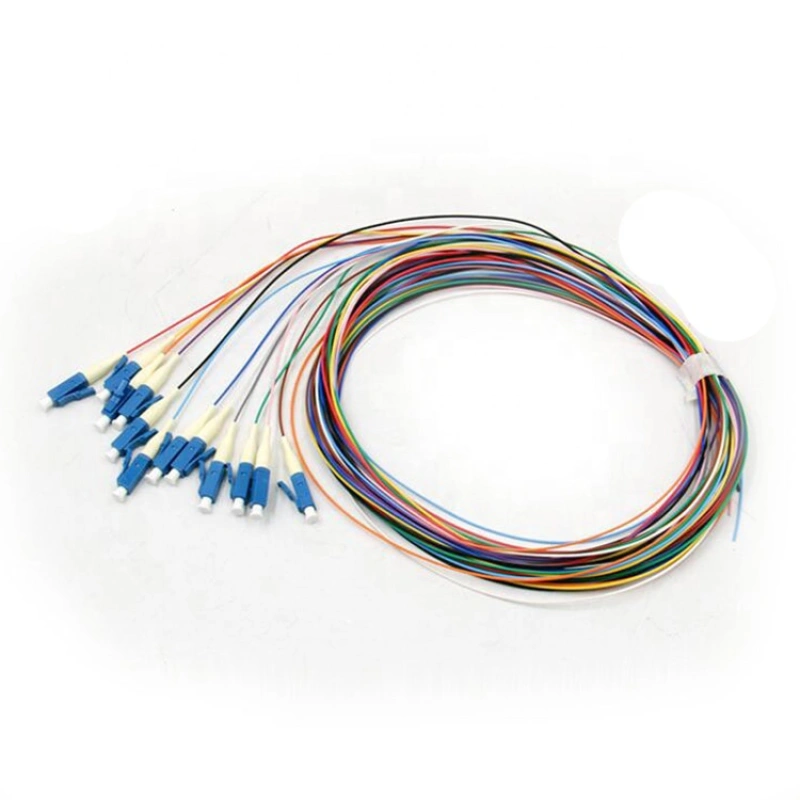

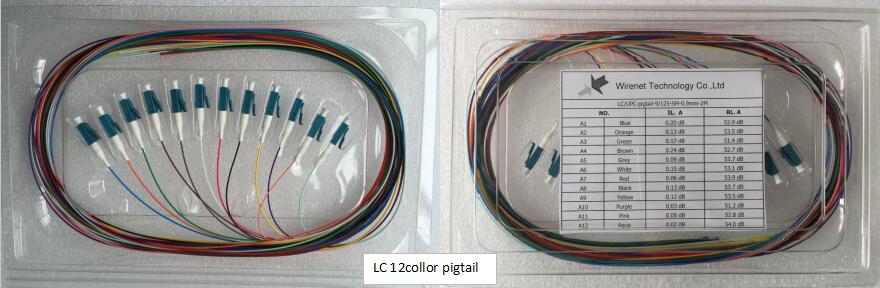

SC 12 color pigtailLC 12 color pigtail

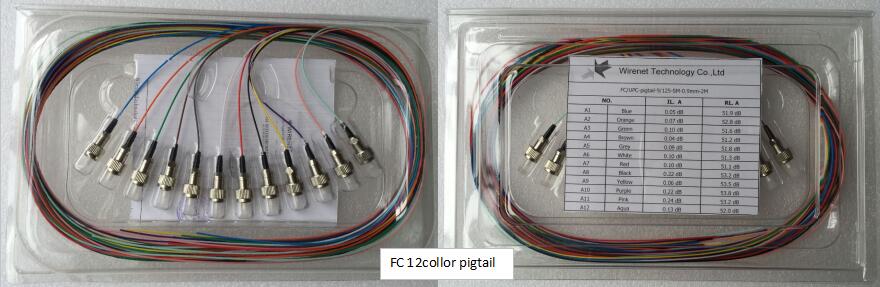

FC 12 color pigtail

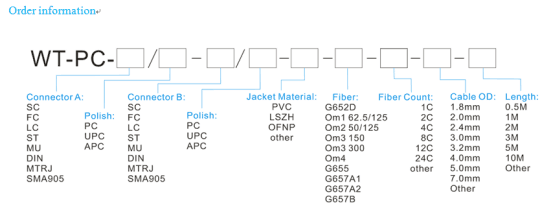

12 color pigtail Order information

12 color pigtail  Specification

Items

Single mode

Multimode

PC

UPC

APC

62.5/125

50/125

50/125 10G/40G

Insertion Loss

<0.2dB

<0.3dB

Return Loss

≥45dB

≥50dB

≥60dB

≥35dB

Durability

<0.1dB typical change, 500 matings

Operation temperature

-40~+75(℃)

Ferrule hole size

125.0+1/-0um, Conentricity:≤1um

125um,Conectricity:1≤3um

125.0+1/-0um, Conentricity:≤1um

127um,Conectricity:1≤3um

125.5+1/-0um, Conentricity:≤1um

128um,Conectricity:1≤3um

126.0+1/-0um, Conentricity:≤1um

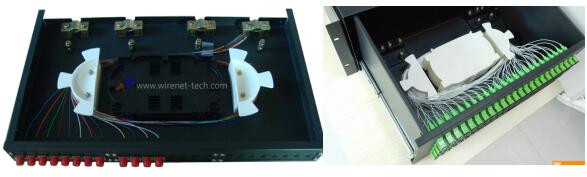

12 color pigtail  Use Sence Display

12 color pigtail Use Sence Display

12 color pigtail  Use Sence DisplaOrdering Information

Cable Diameter:              0.9mm

0.9mm Buffer:                 tight buffer, easy loose, semi-tight buffer

Connector:                      LC/SC/FC/ST/E2000/MTRJ/SMA

Polishing way:                 APC/UPC

Fiber type:                       SM 9/125, MM 50/125, 62.5/125, OM3,OM4

Sheath Material:              PVC, LSZH

Length:                             XX Meter
