Air-Blown Ribbon Fibre Optic Cable
Air-Blown Ribbon Fibre Optic Cable

Air-Blown Ribbon Fibre Optic Cable

Model NO.
Air-Blown Ribbon
Quantity:

2_08

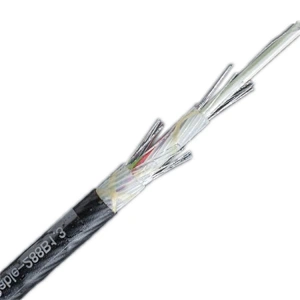

The fibers are positioned in a loose tube made of a high modulus plastic(PBT). The tubes are filled with a water-resistant filling GEL. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member, water blocking yarns on the FRP. The tube is wrapped with a layer of water blocking yarns. The cable is completed with a HDPE sheath. Ripcord inside the outer jacket.


Characteristics:

  1. Central Strength Member(CSM): glass fiber reinforced plastic rod (FRP) with water blocking yarn.
  2. Loose Tube: thermoplastic material, containing up to 12 fibers and filled with a
  3. Suitable water tightness compound.
  4. Filler Elements: thermoplastic rods, where needed.
  5. Stranding: loose tubes (and fillers), SZ stranded around the CSM.
  6. 1 Ripcord.
  7. Outer Sheath: HDPE.

Fiber Count

Nominal Diameter (mm)

Nominal Weight (kg/km)

Max Fibers per Tube

No. of

(Tubes )

Allowable Tensile

Load (N)

Allowable Crush

Resistance (N/100mm)

Short Term

Long Term

Short Term

Long Term

24

5.6±0.5

35±5

12

2

750

300

1000

500

48

5.6±0.5

35±5

12

4

750

300

1000

500

72

5.6±0.5

35±5

12

6

750

300

1000

500

96

6.7±0.5

42±5

12

8

750

300

1000

500

144

8.6±0.5

56±5

12

12

750

300

1000

500

  1. This micro cable for blowing into micro ducts.
  2. Suitable for wiring in multiple minefields and places with severe electromagnetic interference
  3. Suitable for overhead and laying
  4. Long distance communication, inter-office communication
