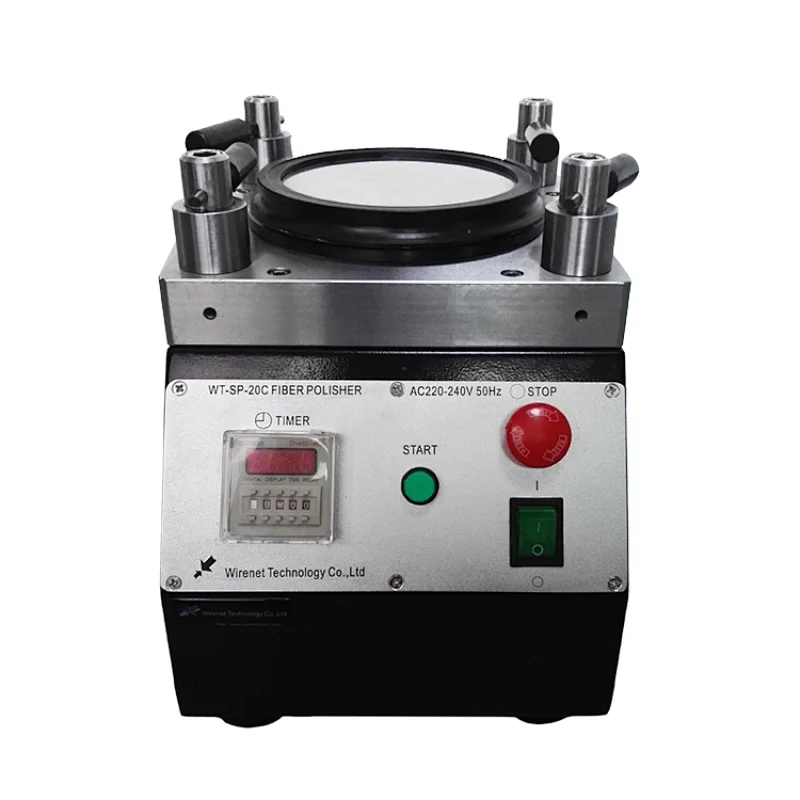

Square Pressure Polishing Machine
Square Pressure Polishing Machine

Square Pressure Polishing Machine

Model NO.
WT-SP-20C
Quantity:

This Square Pressure Fiber Optic Polishing Machine strength controlled by four angle, thus the pressure is more precise to control and the final products has higher precision. For PC terminations above 95% could pass 3D interferometer test, while for APC terminations this rate keep 90%.

Each polishing jig for this machine is available as LC,SC, ST,FC,MTRJ,E2000 PC connector as well as angle polishing. May process each kind of standard fiber optic connectors, such as FC/UPC/APC,SC/UPC/APC, ST/UPC/APC, LC/UPC/APC, ,MU/UPC/APC, MTRJ,E2000/UPC/APC etc.

Feature

  1. May process each kind of standard fiber optic connectors, such as FC/UPC/APC,SC/UPC/APC, ST/UPC/APC, LC/UPC/APC, MU/UPC/APC, MTRJ,E2000/UPC/APC etc
  2. Convenience for adjusting pressure, unloading and replacing jigs
  3. Excellent connector and face polishing quality, the percentage of products sent back for repair is very low.
  4. Save material and low cost for grinding
  5. Easy to use and stable
  6. Display grinding speed which can be adjusted any time
  7. Control the direction with pro and con, convenience for Adjustment
  8. Toothed gearing, more stable and deep-set

High Effciency optical polisher square ferrule fiber optic equipment polishing machineHigh Effciency optical polisher square ferrule fiber optic equipment polishing machine

High Effciency optical polisher square ferrule fiber optic equipment polishing machineHigh Effciency optical polisher square ferrule fiber optic equipment polishing machine

Specification

Item

step

Person to match

1

Cutting cable

1

2

first assembling, strip cable, fiber, and clean

3

3

glue

4

dry glue

5

prepare for polishing(getting off the glue, put connectors to the plate)

1

6

polishing

1

7

termination test

1

8

crimping, assembling

2

9

IL/RL testing

1

10

termination test II

1

11

repairing

1

12

package

1
