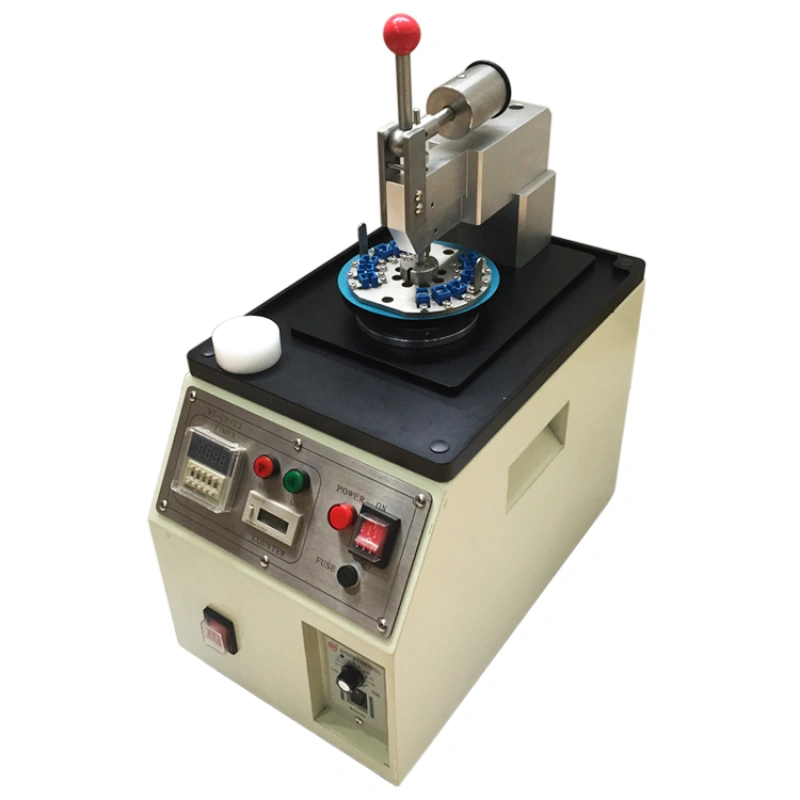

Central Pressure Fiber Optic Polishing Machine

This machine is designed for mass production needs, and could process LC,SC, ST,FC,MTRJ,E2000 PC connector as well as angle polishing.

Main feature

1. May process each kind of standard fiber optic connectors, such as FC/UPC/APC,SC/UPC/APC, ST/UPC/APC, LC/UPC/APC, ,MU/UPC/APC, MTRJ,E2000/UPC/APC etc.
2. Convenience for adjusting pressure, unloading and replacing jigs.
3. Excellent connector and face polishing quality, the percentage of products sent back for repair is very low.
4. Save material and low cost for grinding.
5. Easy to use and stable.
6. Display grinding speed which can be adjusted any time.
7. Control the direction with pro and con, convenience for Adjustment.
8. Toothed gearing, more stable and deep-set.

Ferrule diameter:

2.5 mm (0.0984 inch)1.25mm(0.0492 inch)

Ferrule material:

Zirconia (ZrO2),Quartz capillary, Glass materials, Colophony material Stainless steel and titanium alloy

Specification
