Through Wall patch cord

SC/APC - MTC/SC Through Wall pullable pashable fiber optic connector patch cord

SC/APC - MTC/SC
Through wall/conduit SCII type connector is a new type of connector developed . Use Easy FTTH/conduit installation. The end face of the pin mostly adopts PC or APC type grinding method.
Delivery
EXW
minimum order
1 piece
Country of Origin
China Shenzhen
Quantity:
Contact Now
add to cart

SC/APC - MTC/SC Through Wall pullable pashable fiber optic connector patch cord

FTTH Drop cable Connector（Push & Pull）

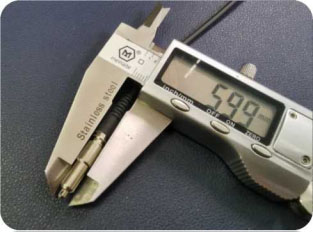

SC/APC & SC/UPC - SCII type 6mm

Description
Through wall/conduit SCII type connector is a new type of connector developed . Use Easy FTTH/conduit installation. The end face of the pin mostly adopts PC or APC type grinding method, and the fastening method adopts the plug-in latch type and rotates. This type of connector is made of alloy material, which is easy to plug and unplug, with small fluctuation in insertion loss, high compressive strength, high installation density, high temperature resistance, and not easy to oxidize.

Features:

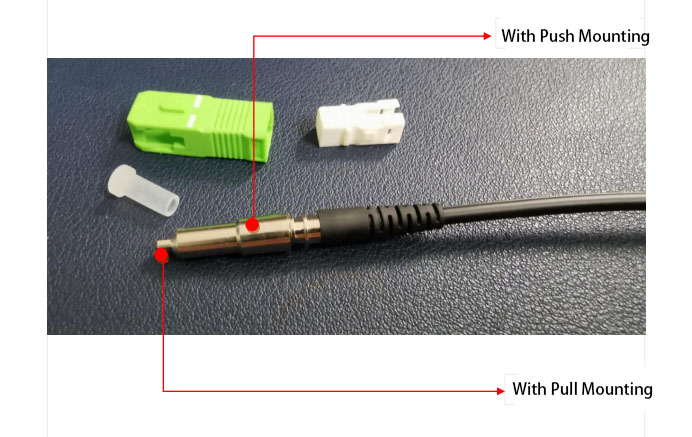

*Metal protected mounting head, can use 2.8mm round cable
* Can used for small pipelines or small wall holes
* Both singlemode and multimode fiber , UPC and APC polishing
* Fast installation without special tool
* Multiple insttaltion methods


Application：
* Telecommunication
* FTTR
* CATV
* LAN & WAN
* Network Broadband
* Building and home cable installation





Items
Single mode
Multimode
PC
UPC
APC
62.5/125 50/125 50/125 10G
Insertion Loss
<0.2dB
<0.3dB
Return Loss
>45dB
>50dB
>60dB
>35dB
Durability
<0.1dB typical change, 500 matings
Ferrule Concentricity
<1um &<0.5 um
<4um
Ferrule inner diameter tolerance
125.0+1/-0um & 125.5+l/-0um
126+3/-0um& 127+3/-0um
Operating Temperature
-40 to +75°C
Housing Color
Blue/Green/Beige/Aqua/Pink
Boot clolor
Black,white,Red, Green
cable
2*3mm FTTH drop cable, 3.0mm Round cable
