SC UPC

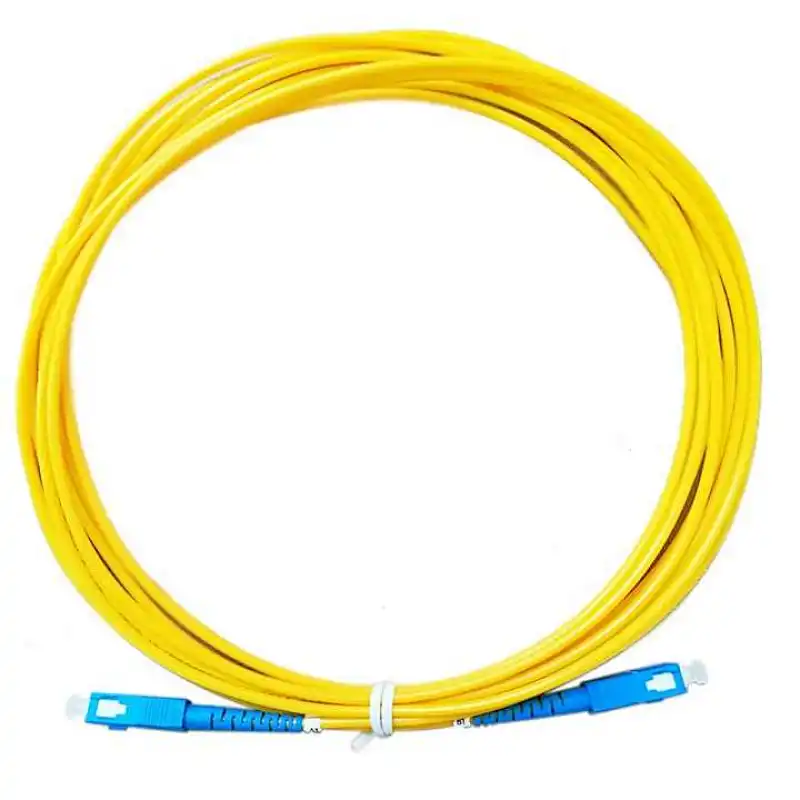

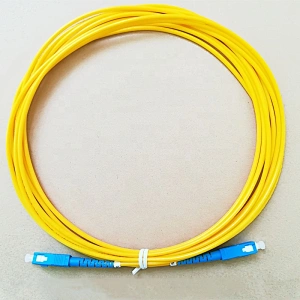

SC UPC Single Mode Simplex 3.0mm Fiber Optic Patch Cord

SC UPC Patch Cord
SC UPC Single Mode Simplex 3.0mm Fiber Optic Patch Cord
Quantity:
Contact Now
add to cart

SC UPC Single Mode Simplex 3.0mm Fiber Optic Patch Cord

Feature:

  • Low insertion and back reflection loss
  • Good exchangeability
  • Good durability
  • High temperature stability
  • Standard: Telcordia GR-326-CORE
Item                                   Single mode                                                             Multi mode
PCUPCAPC62.5/12550/12550/125 10G
Insertion Loss<0.2dB<0.3dB
Return Loss≥45≥55≥60≥35
Durability<0.1dB typical change,500 matings
Operating Temperature-40 to +75-40 to +75
Ferrule Hole Sizes125.0+1/-0um, Conentricity:≤1um125um,Conectricity:1≤3um
125.3+1/-0um, Conentricity:≤1um127um,Conectricity:1≤3um
125.5+1/-0um, Conentricity:≤1um128um,Conectricity:1≤3um
126.0+1/-0um, Conentricity:≤1um

Application
  • CATV;
  • Active device termination;
  • Telecommunication networks;
  • Metro;
  • Local Area Networks;
  • Data processing networks;
  • Test equipment; Premise installation; Wide Area Networks;
