Fiber Optic Single Mode SM Simplex SX LSZH SC APC FTTH Drop Cable Patch Cord

Fiber Optic Single Mode SM Simplex SX LSZH SC APC FTTH Drop Cable Patch Cord

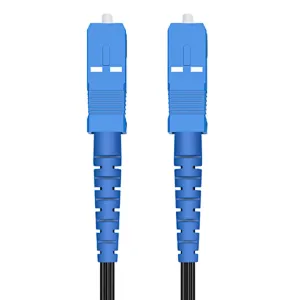

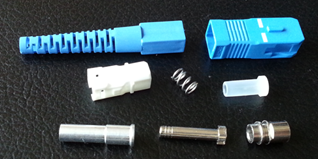

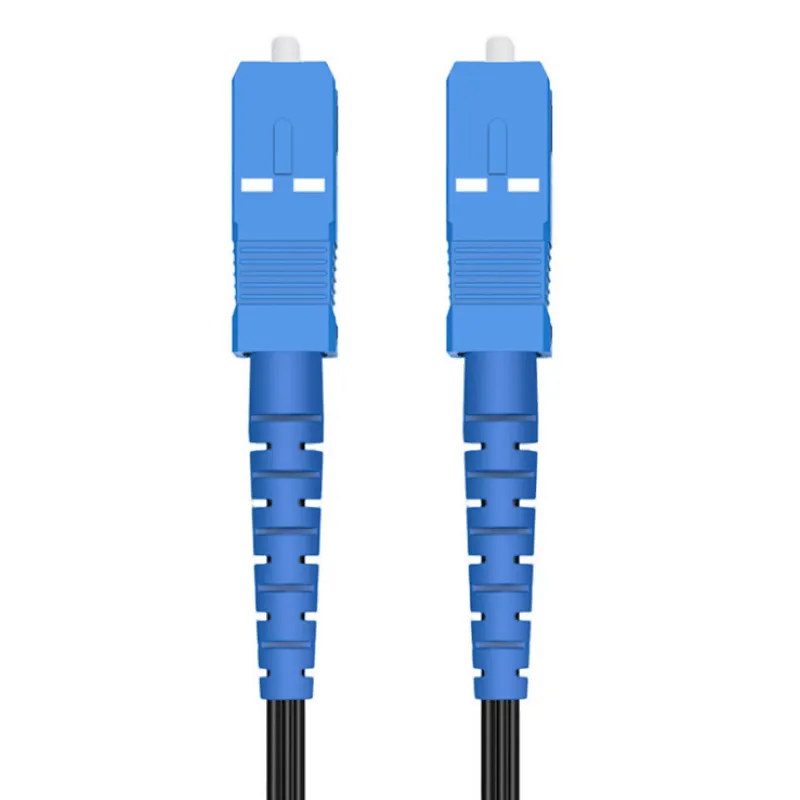

1. Connector  Structure SC Housing color: Blue SC Boot color: Blue

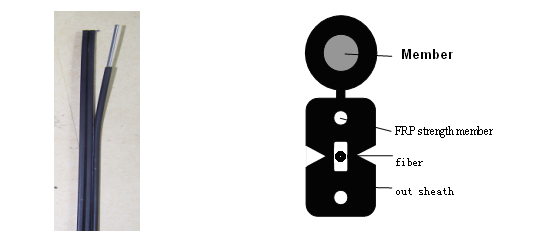

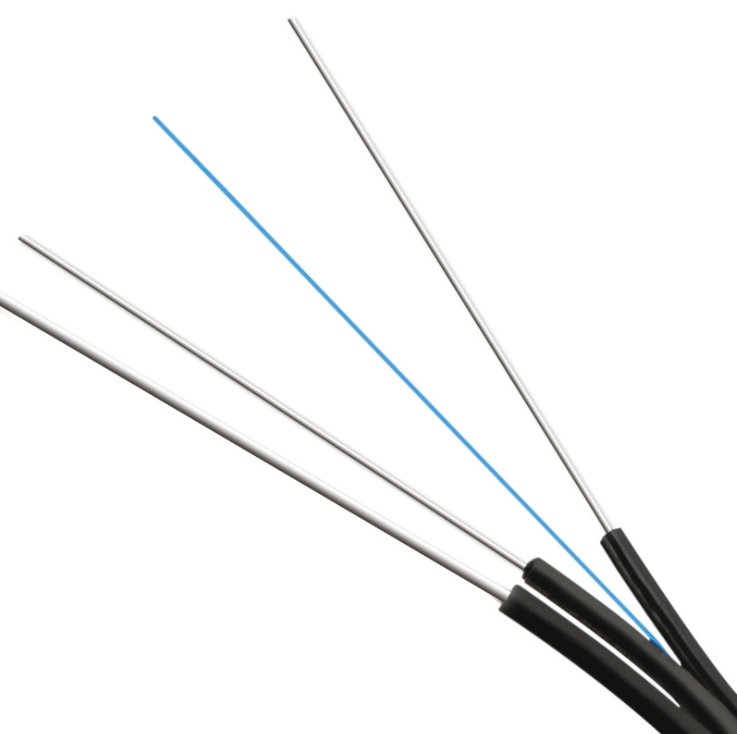

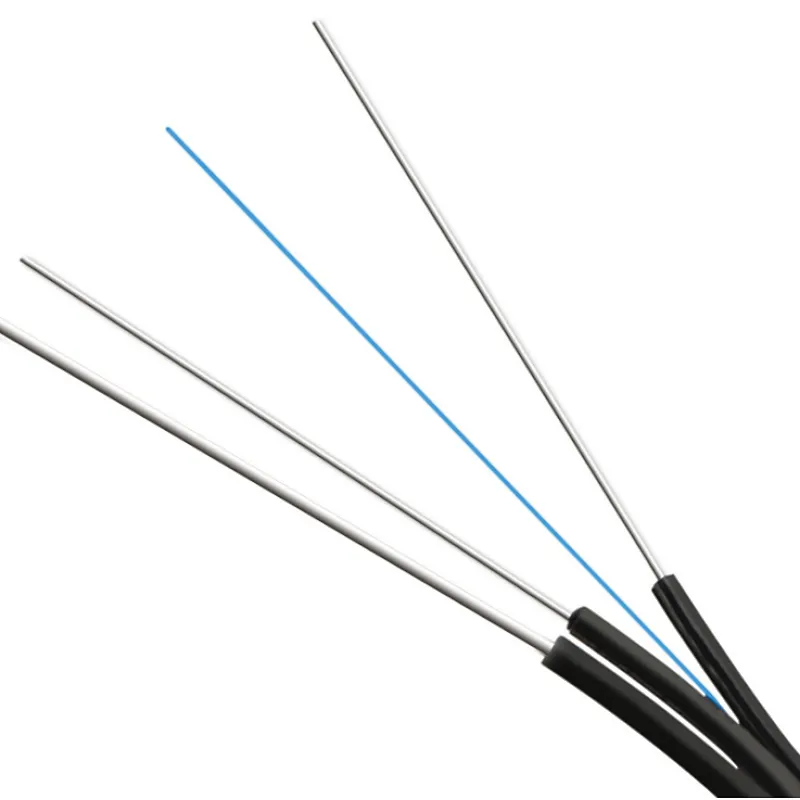

2. FTTH cbale Structure

   ITEM		CONSTRUCTION
   FIBER COUNT		1
   CABLE DIAMETER		5.3*2.0MM
   CABLE WEIGHT		21.7KG/KM

3. fiber parameter:

4. 	1		Blue
   NO		Item				Specifications
   						G.657A1
   1		Cladding Diameter (μm)				125±0.7
   2		Cladding non-circularity (%)				≤0.7
   3		Core-cladding concentricity error(μm)				≤0.5
   4		Mode field Diameter @1310 (μm)				(8.6～9.5)±0.4
   5		Cladding -coating concentricity error(μm)				≤12.0
   6		Coating Diameter(μm)				245±0.5
   7		Fiber Cutoff Wavelength (nm)				λccf≤1260
   8		Attenuation(max.)(dB/km)		1310nm		≤0.4
   				1550nm		≤0.3
   9		Bend Loss(dB)		Bend Radius		10	15
   				Bend Turns		1	10
   				1550nm		≤0.75	≤0.25
   				1625nm		≤1.5	≤1.0

Parameter
1, Single mode fibers (9/125 SM G652A)
2, Test wavelength: 1310/1550nm
3, Insertion Loss (Max): -0.3dB
4, Return Loss (RL): UPC>50
5, Durability: <0.1dB typical change,1000 repeatability
