Model NO.
Corning wall mount ODF patch panel
Quantity:

Corning sc lc fc 12 24 48 96 port OTB fiber optic wall mount ODF patch panel


Product Description

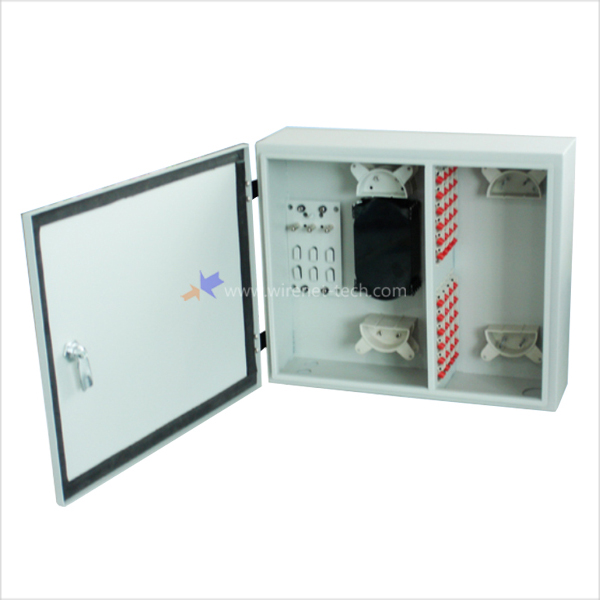

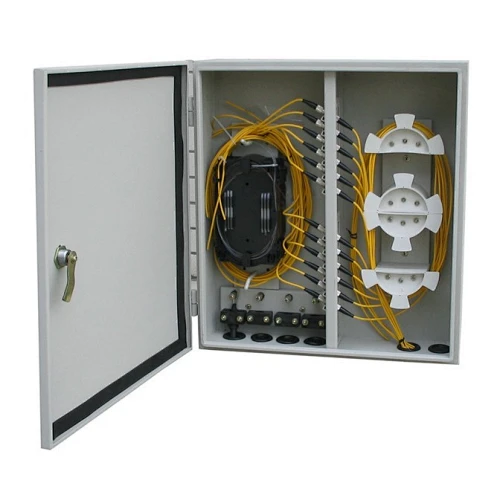

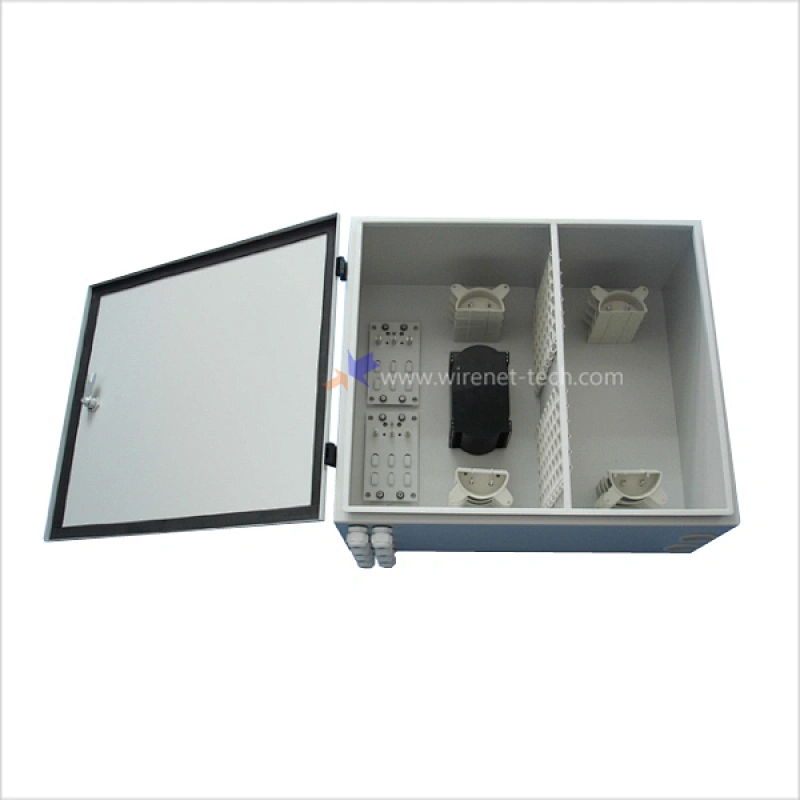

Optical Terminal Box (OTB) is mainly used for connecting the indoor/outdoor optical cables, optical patch cords and optical pigtails.

Features and advantages:
  1. Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.
  2. The box are Rack Mounted, which is convenient to install and dismantle;
  3. The splice tray could be piled one upon another, flexible to turn;
  4. The curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray;
  5. The box is of unique structure, reasonable layout, and has adequate room for operation;
  6. Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly;
  7. The indoor type is of excellent seal performance, which could prevent water from entering effectively;


Environmental temperature:

-25 - 55°C

Relative humidity:

<85%(when the temperature is below 30°C)

Atmosphere pressure:

70~106Kpa

Insulating resistance:

>2×104 MΩ/500VDC

Voltage-resistance strength:

Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.



Types:

  • Rack-mount fixed type
  • Rack-mount drawer type
  • Rack mount ODF
  • indoor wall-mount type
  • Outdoor waterproof wall-mount type

Properties:

  • Suitable for the protective connection between cables and pigtails
  • Suitable for the connection between optical cables and optical communication device
  • unique structure, easy installation, for indoor use

Classification:

Rack Mount, Wall Mount. Suitable for FC adapter,ST adapter,SC adapter, LC adapter etc.

  • capacity: 12,24,32,48,64,72,96 splices
  • 19 inches; 1U for 12 splices, 24 splices,2U installation for 32 splices, 48 splices, and 3U for 64, 72 & 96 splices.
  • Adapters installed: FC adapter ,ST adapter,SC adapter, LC adapter etc
  • Suitable for ribbon and bunchy fiber cable

Components:
Cover, inner components, fiber connecting protector Inner components

a. Cover: the cover should be easily opened for easy installation; it should be provided with an outlet device for fiber metal high voltage protective earthing;

b. Inner components as follows:

  • Bracket: supporting the inner structure.
  • Fiber Optic Splice Tray: storing fiber connectors (together with the protective components) and the spare fibers, with the length being about no less than 1.6m; the curve radius of the coiled spare fiber should be no less than 37.5mm; makes that are easily recognizable should be provided for reconnection of fibers; should have adequate room for convenient operation;
  • Fixing Device: used for the fixation of fiber protective tubes and the fixation of pigtails.

Heat shrink protective sleeves are used to protect fiber connectors.


Material:

All components of the box should be made of materials which are of excellent anti-corrosion performance, if not, then it should be static plastic sprayed; the physical and chemical capabilities of the material should be stable and should be compatible.

  • The melting temperature for the material used for the heat shrinkable protective sleeves and the stuffing should be no less than 120°C, the intenerate temperature should be higher than 90°C, and could be used under -25 - 40°C;
  • 4.2 All material should be innocuous, none-corrosion, no side effects to human being or other equipments.
