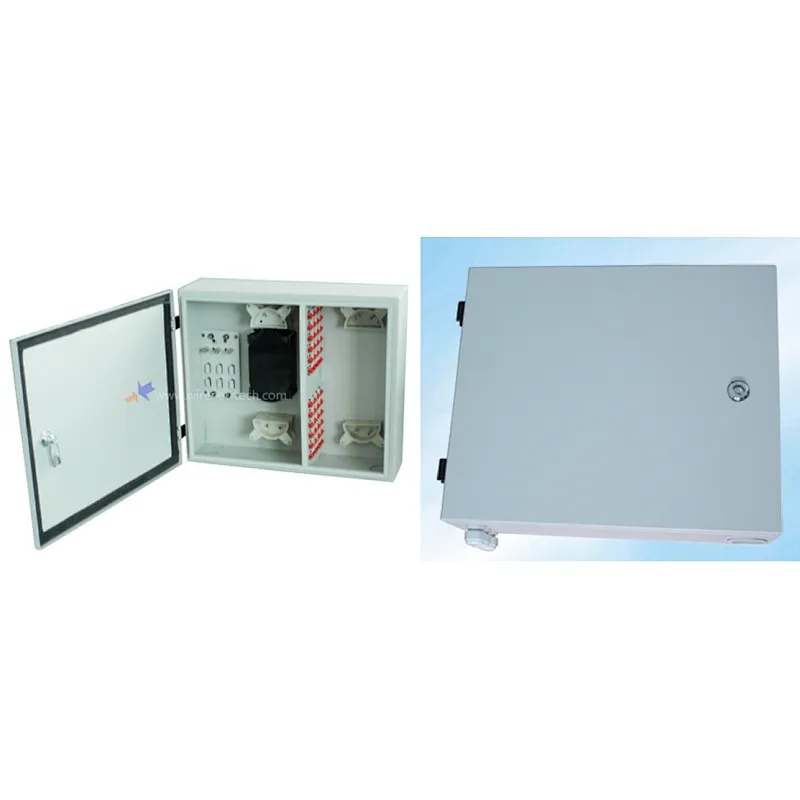

24 core Outdoor Wall Mount Fiber Optic Patch Panel
Wall Mount Fiber Optic Patch Panel
19 inch 24 core optical distribution frame wall mount fiber optic patch panels with LC SC FC ST adapter
Quantity:
24 core Outdoor Wall Mount Fiber Optic Patch Panel
product introduction
This series optical distribution box can be used in the connection and dispatch of outdoor optical fiber communication links, available for the connection of optical cable, optical fiber and patch cord, with the advantages of artistic appearance, convenient operation and long service life.
features

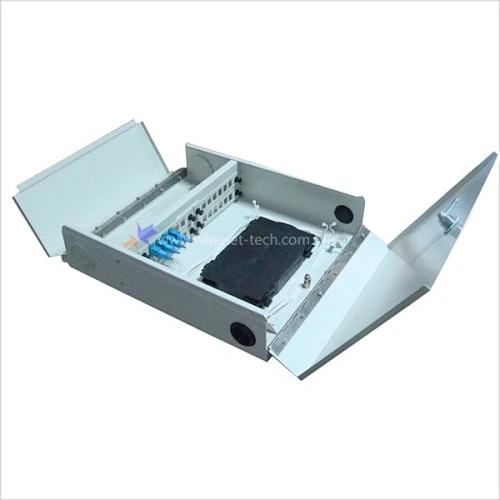

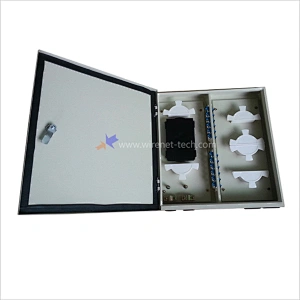

- it is composed of case body, fiber optical splice tray and adaptor fixing frame.

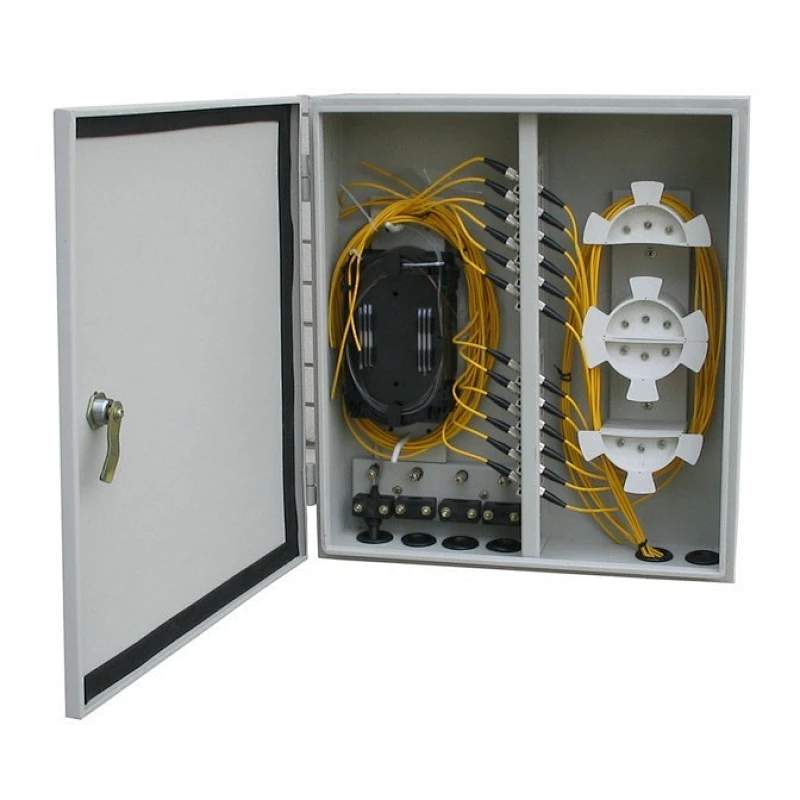

- it is devided into two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord. Combine fusion and connection, surplus fiber holding, and patch cord holding in integration

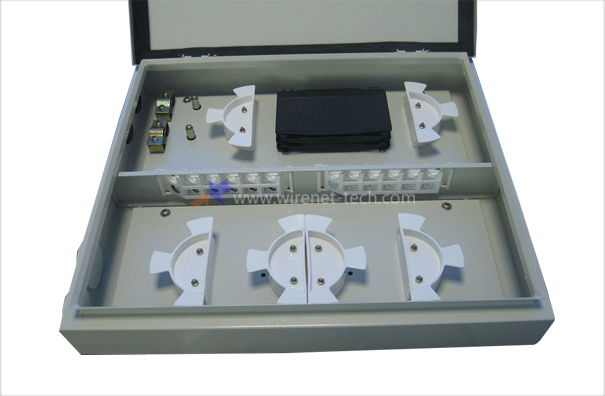

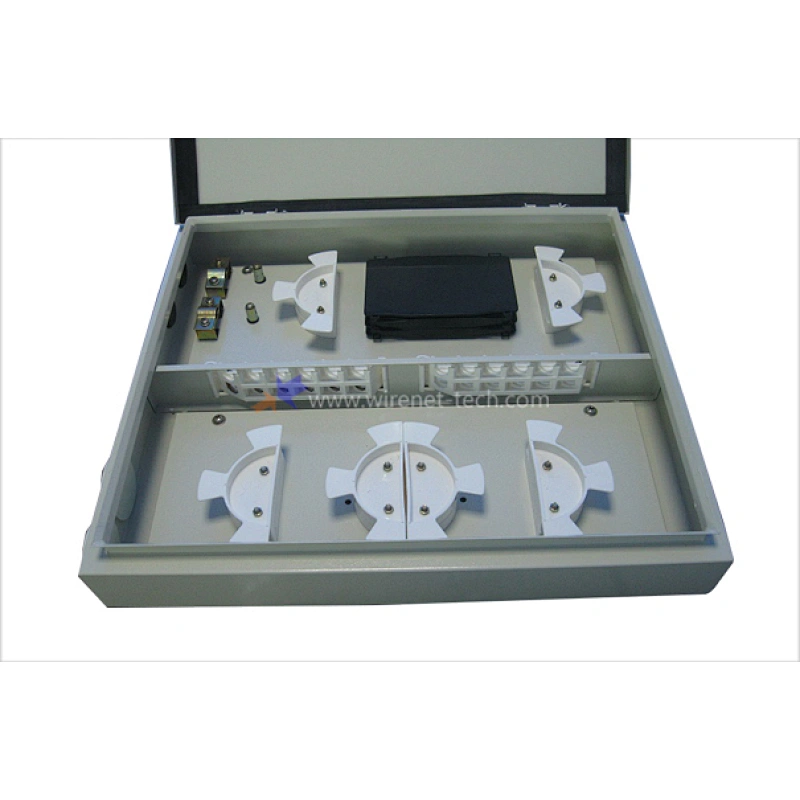

- surplus fibers can be twisted around two special plastic rings, which ensure the bending radius is bigger than 40mm.
- adopt 6 ports adaptor fixing frame to fix adaptors which available for different types of adaptors, easy for operation and avoid any unexpected damage to fiber,

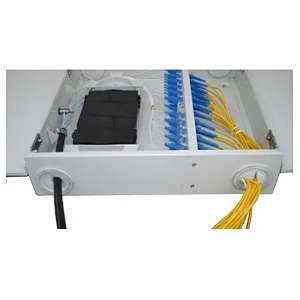

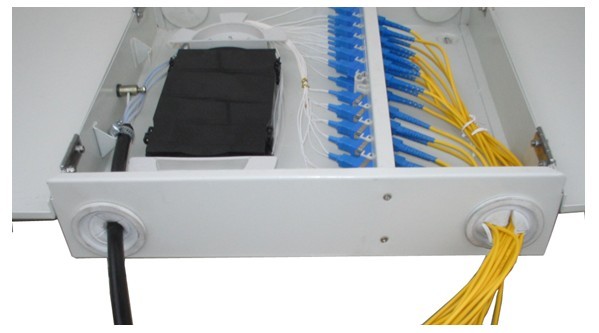

- cable can lead in from the bottom of the box, the entry is under the protection of special rubber parts.
Quick Details
Material:Cold-rolling steel
Adapter:Simplx&Duplex SC,LC,FC,ST Adapters
Features:Standard size for in 19'',23''D frame
Atmosphere pressure:70-106Kpa
Environmental temperature:-25 - 55°C
Insulating resistance:≥2x104 MΩ/500VDC
Relative humidity:≤85%((when the temperature is below 30°C))
Voltage-resistance strength:Under the effect of 15kv/DC/1min, non-puncture, and no are-over
| item | value |
| Model Number | Fiber Optic Patch Panel |
| Type | Fiber optic patch panel |
| Place of Origin | China |
| Guangdong | |
| Brand Name | wirenet |
| Use | fttx |
| Warranty Time | 12 months |
| Mode Type | 24 core Outdoor Wall Mount Fiber Optic Patch Panel |
| Material | Cold-rolling steel |
| Type | Fixed & Sliding Type |
| Adapter | Simplx&Duplex SC,LC,FC,ST Adapters |
| Features | Standard size for in 19'',23''D frame |
| Atmosphere pressure | 70-106Kpa |
| Environmental temperature | -25 - 55°C |
| Insulating resistance | ≥2x104 MΩ/500VDC |
| Relative humidity | ≤85%((when the temperature is below 30°C)) |
| Voltage-resistance strength | Under the effect of 15kv/DC/1min, non-puncture, and no arc-over |
