OTDR WT-358T
OTDR WT-358T
OTDR WT-358T

OTDR WT-358T

Model NO.
WT-358T
Quantity:

As fiber optics plays more and more important role in modern telecommunication and CATV networks, the requirements to the construction,test and maintenance of fiber optics links also become more prominent.

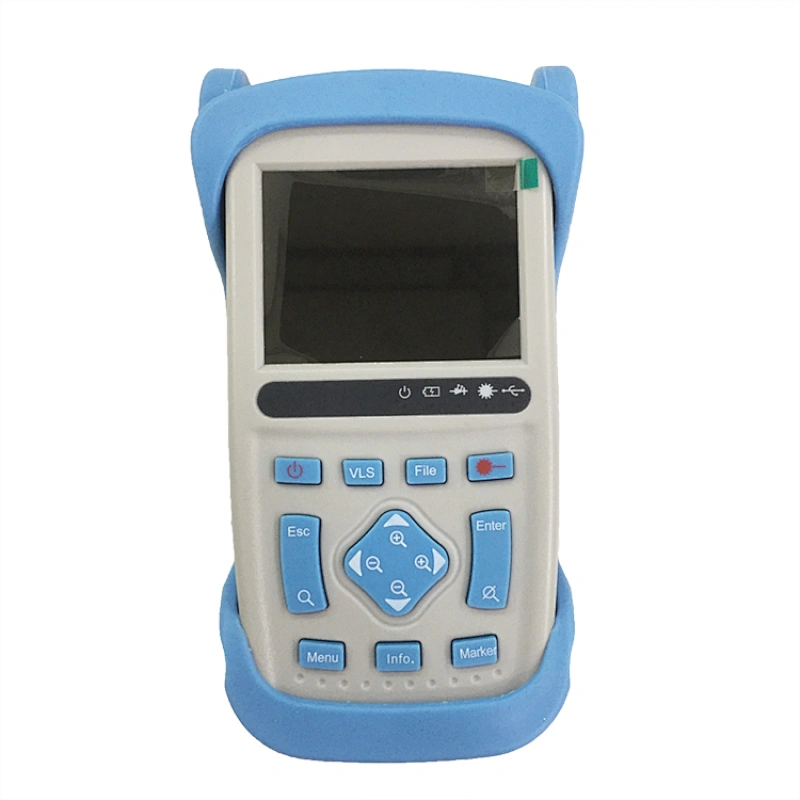

Wirenet cute OTDR WT-300 is a unique mainly designed for construction and maintenance of telecommunication and CATV networks.Cute OTDR 300 can be widely used in engineering construction,maintenance test and emergency repair of all fiber optics related systems. Comparing with a regular OTDR,Cute OTDR-WT-300 is more compact in size and easier for field use.

Cute OTDR WT-300 handheld design,compact and lightweight ,easy ti carry.Event information through color display and data storage capabilities .Through the USB interface,the test data can be uploaded to the PC,to facilities the post-processing,achieve abd printing.

Features

  1. Hand-held design, compact and lightweight; Anti-seismic, shockproof and appropriate for field operation.
  2. Unique hotkey design
  3. Starting in 3 seconds and measuring immediately
  4. Narrow event blind zone, simple test of fiber patch cord
  5. Automatic and manual test function
  6. High Capacity SD card
  7. Low-power design, optional lithium battery or AA-size alkaline batteries
  8. Simple, fast, without complex training VFL (Visual Fault Location) function
  9. Multiple light outputs, FC / ST / SC exchangeable
  10. OTDR Viewer software for data analysis
  11. Light alarm function, preventing the device from being damaged by the signal light


Specification

Wavelength

1310/1550nm

Model

Cute OTDR-300C

Wavelength

1310/1550

Sensing Fiber

Single mode fibers

Dynamic Range(dB)

28/26

32/30

Pulse Duration(ns)

10ns/20/50/100/200/500/1000/2000/5000/10000/20000

Dead Zone(m)

2m

Attenuation Detect Accuracy(dB/dB)

±0.05

Loss Threshold(dB)

0.01

Sampling Resolution(m)

0.16~5

Distance Measure Accuracy(m)

±(1 m + 5×10- 5×distance + sampling space)

Max Measuring Distance(Km)

1-120Km

Data Storage

>10000records

Averaging Time

5s,15s,30s,1min,2min,3min

Dimensions (H×W×T)

210× 112× 67mm

Weight

1kg

Temperature

Operating Temperature 0℃~50℃

Storage Temperature -20℃~60℃

Relative Humidity

0%~95%(non-condensing)

Battery Life

>8 hours

Connector

FC(ST/SC Interchangeable)/PC

Connectivity

USB/ SD card

Visible Fault Locator

Wavelength:650nm; Farthest distance test:5Km

Stable light Source Module

Wavelength (±20nm):The work of OTDR with wavelength

Application

  • Telecommunication construction and maintenance
  • CATV construction and maintenance
  • Cabling System
  • Optical components production and research
  • Other fiber-optics projects
