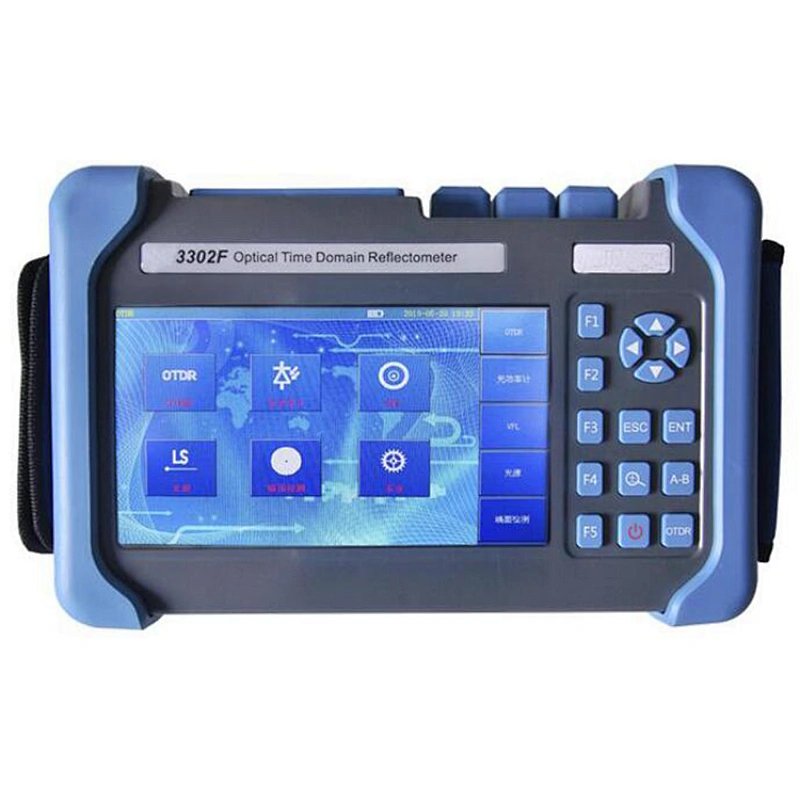

JW3302F is a high performance, multi-functional test instrument with excellent test performance, which can support VFL, OPM, fiber optic microscope (FIP) and other test modules.This product is mainly used for measuring the length, transmission loss, joint loss and other optical fiber physical properties of optical fiber and cable. It is widely used in FTTH network, local optical fiber network, urban optical fiber network, PON network construction, deployment, maintenance, certification and optical communication teaching and research.

JW3302F has novel, bright and durable appearance.Double operation with touch and button, easy and intuitive operation style;The optimized parameter configuration can simplify the test operation to the maximum extent.The product has a rich external interface;The whole machine adopts the intelligent power management mode, and the large capacity lithium battery makes the working time of the whole machine more than 10 hours.


Features

  1. Max. 45dB large dynamic range, 128k data sampling point;
  2. ≤0.8m ultra-short event blind area, easy to test fiber jumper;
  3. Maximum support 4 wavelength measurement: 850/1300/1310/1490/1550/1625/1650 nm;
  4. The line has light detection and warning: avoid the signal light damage equipment in the tested fiber;
  5. With Ethernet remote control function;Built-in optical power meter function;
  6. Built-in visual red light fault location (VFL) function;
  7. Built-in optical fiber terminal detection function;

Specification

Range accuracy

±(1m+Sample interval+0.0025%×distance)(Index placement error is not included)

Range resolution

0.05,0.1,0.2,0.5,1,2,4,8,16m

The test range

0.4,0.8,1.6,3.2,6.4,16,32,64,128,256,512km(Single Mode);

0.4,0.8,1.6,3.2,6.4,16,32(850nm Multimode)

The test pulse width

5,10,30,100,275,500,1000,5000,10000,20000ns

5,10,30,100,275,500,1000(850nm Multimode)

Loss threshold

0.01dB

The sampling points

128k

linearity

0.05dB/dB

Loss resolution

0.001dB

Waveform storage capacity

≥1000

From the unit

Kilometers, meters, thousands of feet, feet

Display

800×480,7inch TFT Color LCD(With touch screen)

External interface

USB, min-usb, Ethernet, headphones,SD

Optical output interface

FC/SC/ST(replaceable)

VFL

650nm±10nm,2mW;

Optical power meter

Wavelength range :1200nm ~ 1650nm

Power range :-60 ~ 0dBm,Test uncertainty :±5%(-10dbm,CW)

The power supply

AC/DC adapter: voltage allowed range :100V~240V(1.5a), frequency allowed range: 50/60hzTo: dc 12 v + 1 v (2 a)Internal lithium battery: 8.4v, battery working time :12 hours (normal temperature)

Interface language

Simplified Chinese,English and other languages are available

Environmental adaptability

Working temperature:-5℃~50℃(The battery:5℃~40℃)

Storage temperature:-40℃~70℃(The battery:-20℃~60℃)

Installation dimensions

253×168×73.6mm

Weight

1.5kg (battery included)
