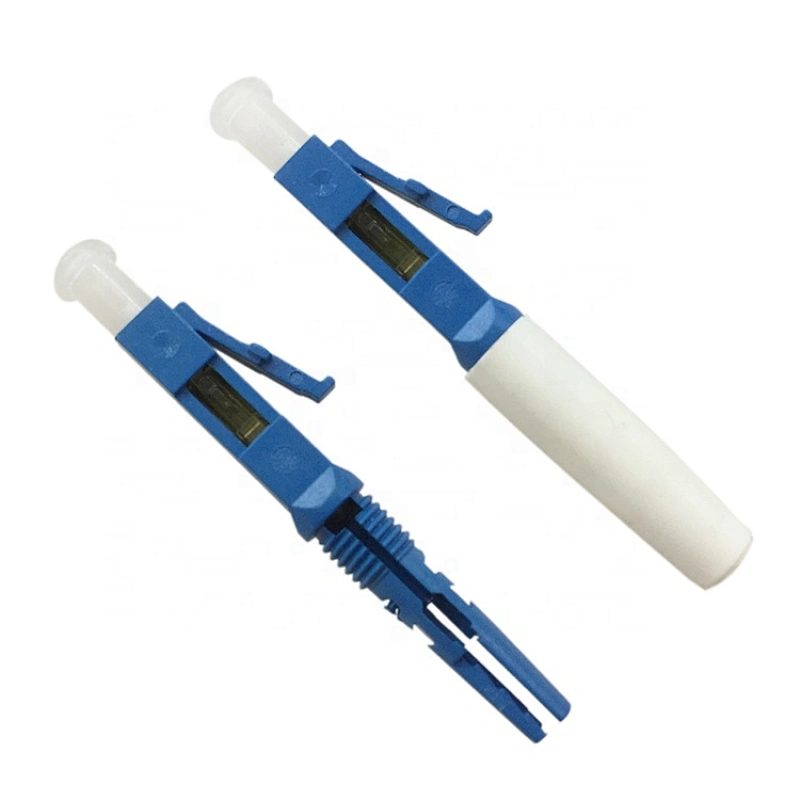

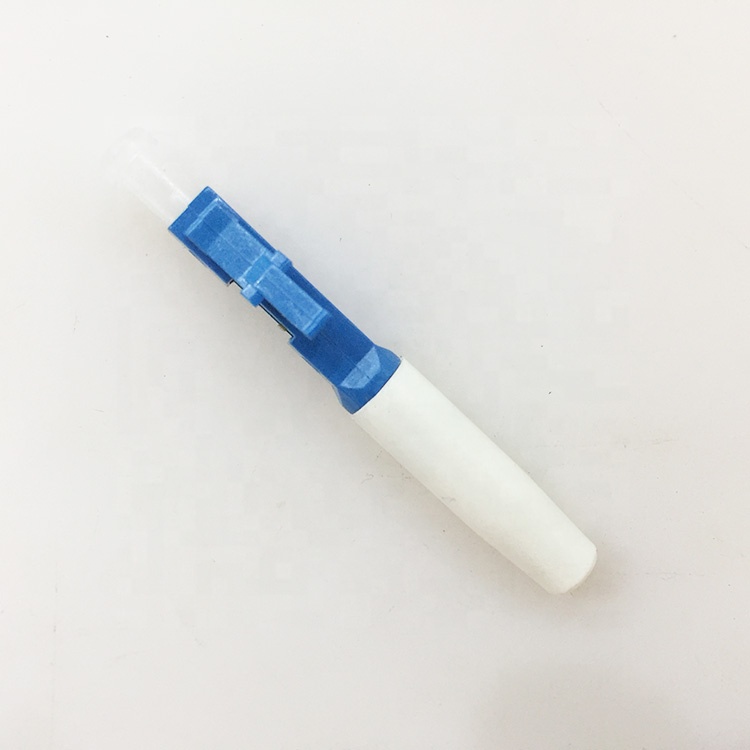

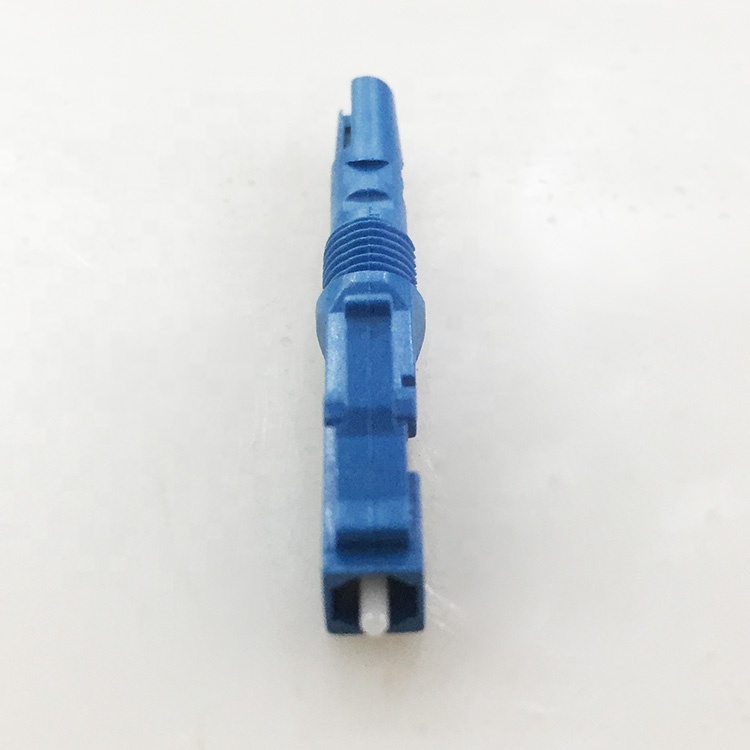

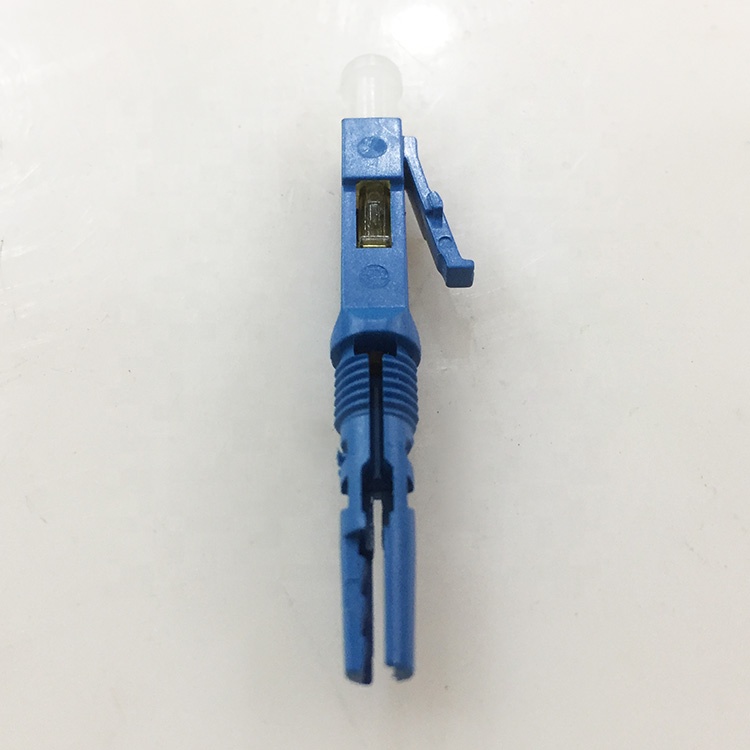

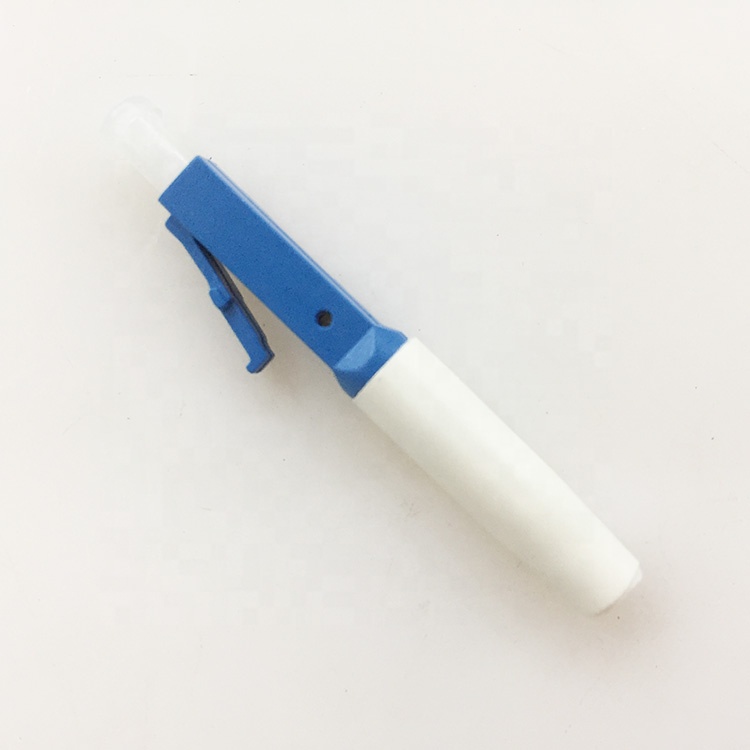

LC UPC Fast Connector
L45
Single mode sm fiber optic quick connector lc upc fast connector
Quantity:
Features
- Low insertion loss and back reflection loss;
- Ferrule end surface predomed;
- Boots in a variety of colors;
- 100% interferometer measurement;
- Various fiber cable option; G652D, G657A, G657B3, OM1, OM2, OM3, OM4 option;
Specification
Mode | SM | MM | |
Polish | UPC | APC | PC |
| Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
Interchangeability | ≤0.2dB | ||
Repeatability | ≤0.1dB | ||
Durability | ≤0.2dB (500 times mating) | ||
Tensile Strengh | ≥50N | ||
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
