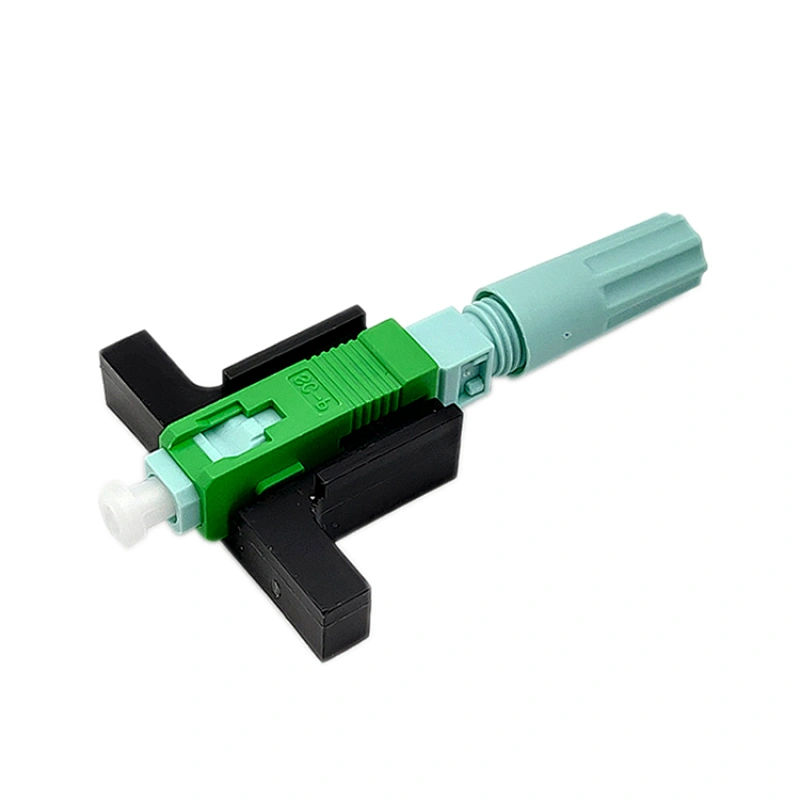

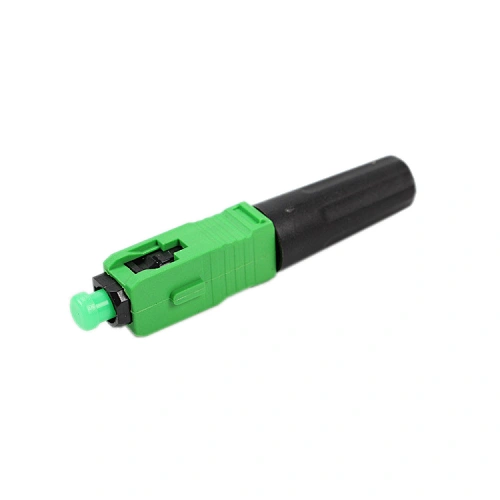

SC Pre-embedded Fast Connector

ITEM

Technical Parameters

Connector type

SC

Applicable for

Indoor cable2.0mm,3.0mm; Drop cable(2.0*3.0mm)

Optical fiber diameter

125μm(SM&APC)

Fiber mode

Single mode(G657A);

Polishing Type

UPC ; APC

Operation time

About 120s（no fiber cut）

Insert loss

≤ 0.5dB（1310nm & 1550nm）

Return loss

≥50dB

Fastening strength of naked fiber

>5 N

Fastening strength of naked fiber holder

>10 N

Tensile strength

>50 N

Using temperature

-40～+75℃
