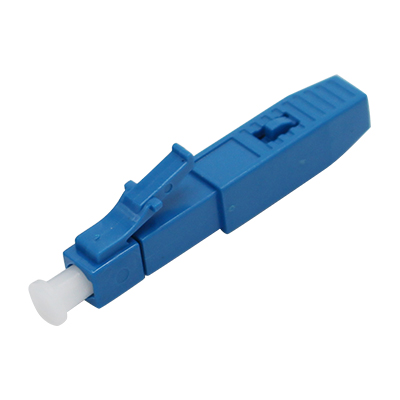

LC Pre-embedded Fast Connector
LC Pre-embedded Fast Connector

LC Pre-embedded Fast Connector

Model NO.
LC Pre-embedded
Quantity:

Field Assembly LC fast connector Pre-terminal type can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fiber enderface inspection.

Features

  1. Factory-installed fiber;
  2. No epoxy or polishing required;
  3. Quick and easy fiber termination in the field;
  4. Eliminates cable excess length and pigtail splice storage;
  5. Cost effective;

Specification

Applicable for

 0.9mm indoor cable

Optical fiber diameter

 φ125um (657A&657B)

Tight buffer diameter

 φ250um

Fiber mode

 Single mode/Multimode

Operation time

 About 100s (exclude fiber cut)

Insert loss

 ≤0.3dB (1310nm & 1550nm)

Return loss

 ≥-45dB

Fastening strength of naked fiber

 ≥ 4N

Tight clamping force cladding

 ≥ 8N

Tensile strength

 ≥ 10N

anti-pressing standing velvet (20N)

 IL<=0.5db      RL<=5B

Mechanical durability (500 times)

 IL<=0.5db     RL<=5B

Using temperature

-40°C~+75°C
