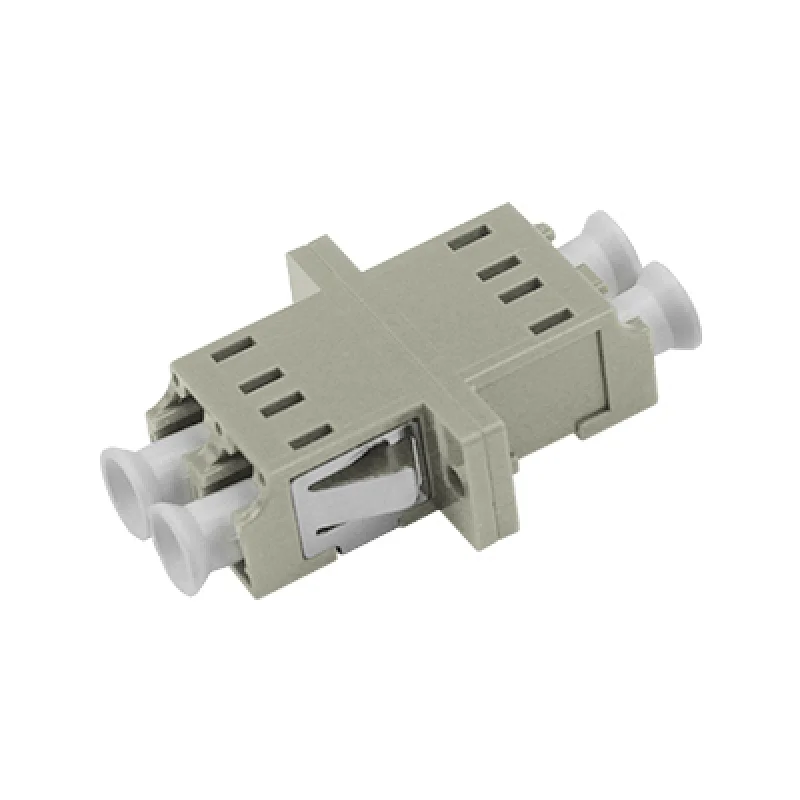

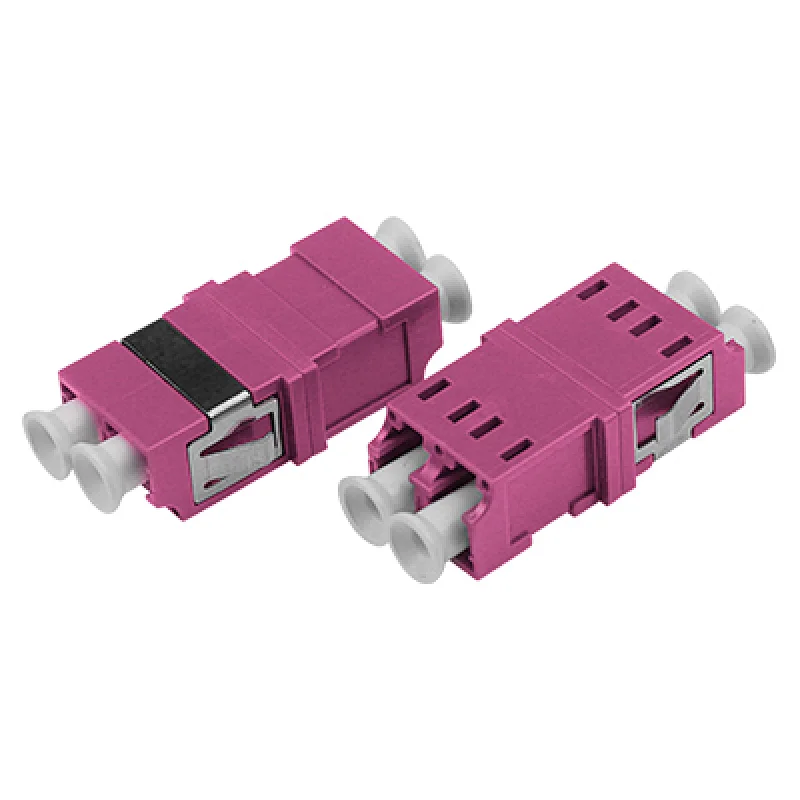

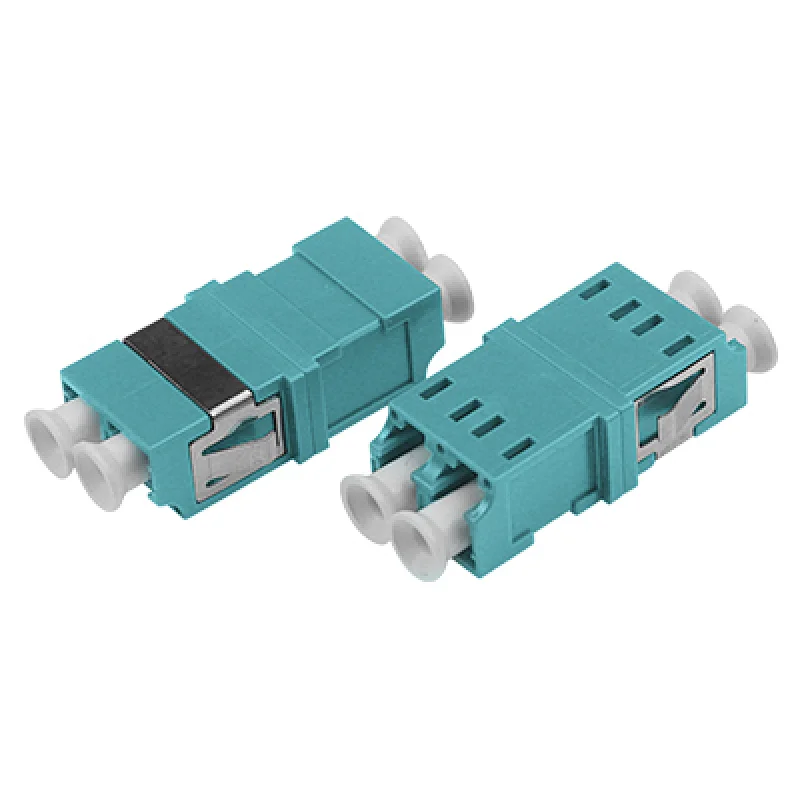

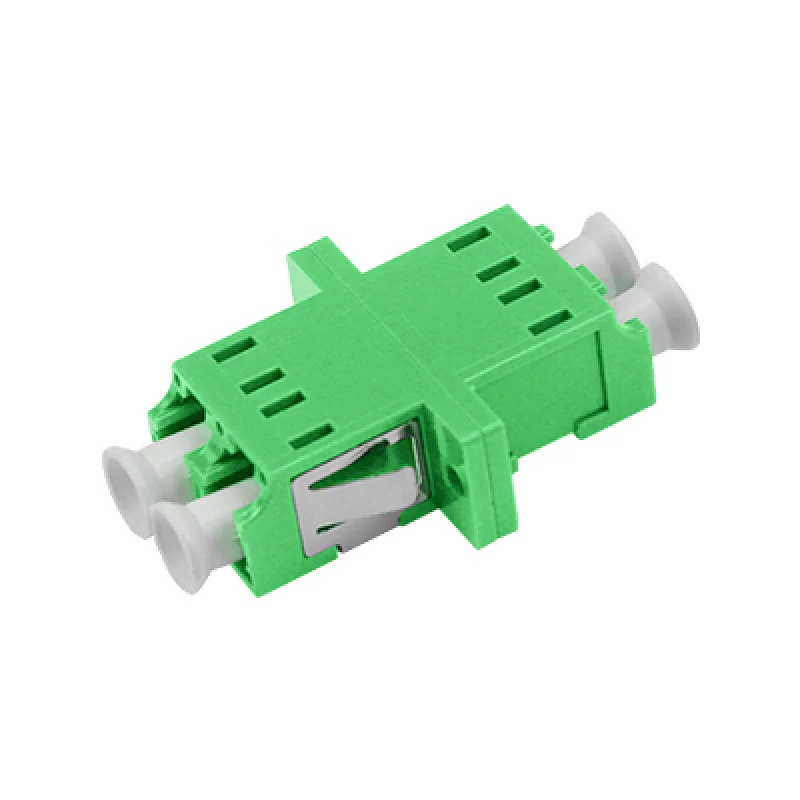

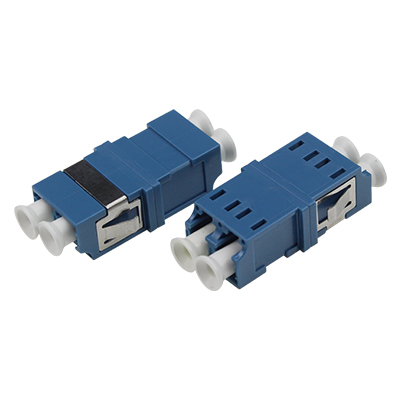

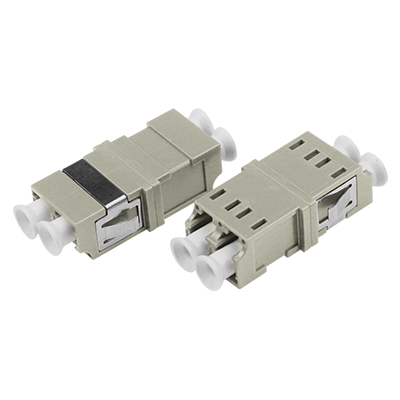

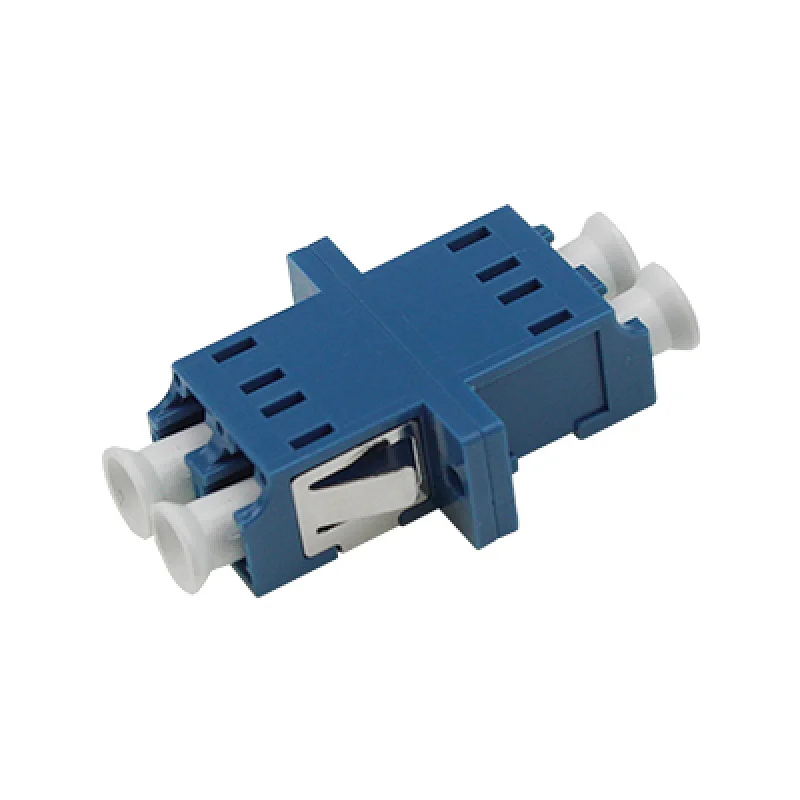

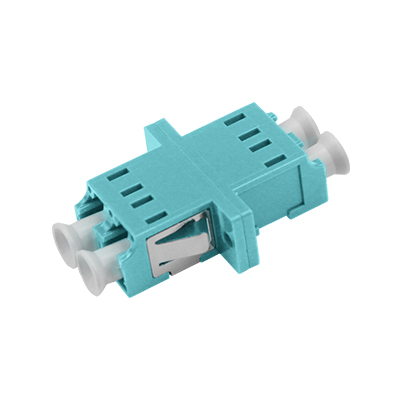

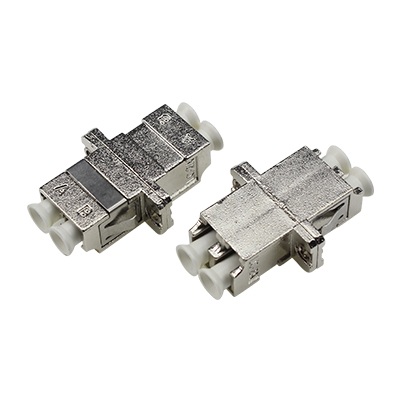

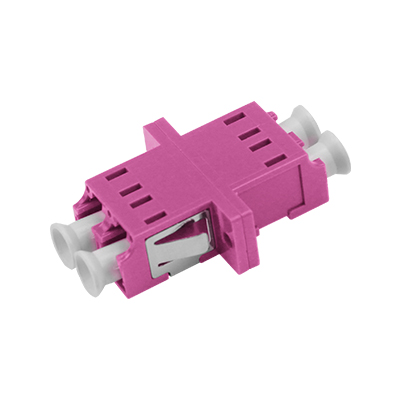

LC Duplex Welding Symmetry-type Adapter
LC DX Welding Symmetry-type
The LC connector is developed by the famous BELL Research Institute. It is made by using the convenient modular jack (RJ) latch mechanism.
Quantity:
Adapter Type: LC | Body Style: QUAD |
Connector Polish Type: APC | Connector Fiber Mode: Single mode |
Insertion Loss: ≤0.2dB | Durability: >1000times |
Mounting Type: With/Without Flange | Aligment Sleeve Material: Ceramic |

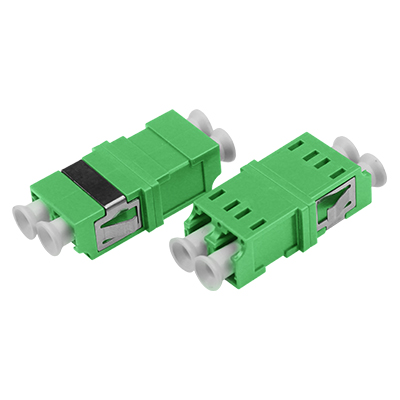

Color: Green | RoHS Compliancy Status: Compliant |
Specification
| parameter | LC Adaptor | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Alternationg loss | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Durability | The change of 1000 interpolation times is less than 0.2dB | |||
| Working temperature | -40~85°C | |||
| Storage temperature | -40~85°C | |||
Application
Telecommunication Networks Local Area Networks (LANs) Communication System | Premise Installations Wide Area Networks (WANs) Video Transmission | Connections Between Patchcords FTTX, CATV Connections Between Devices |
