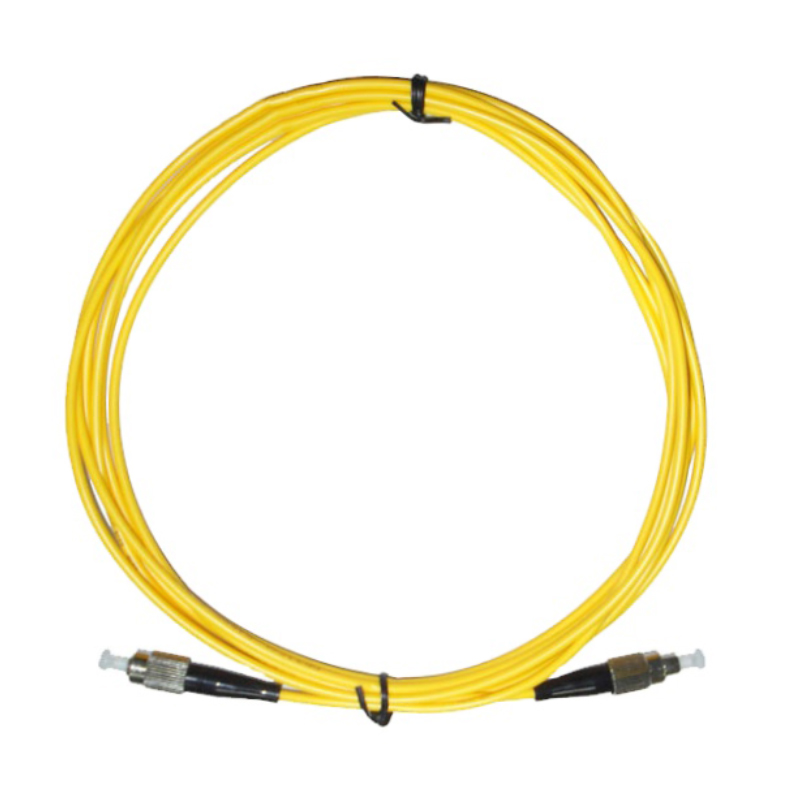

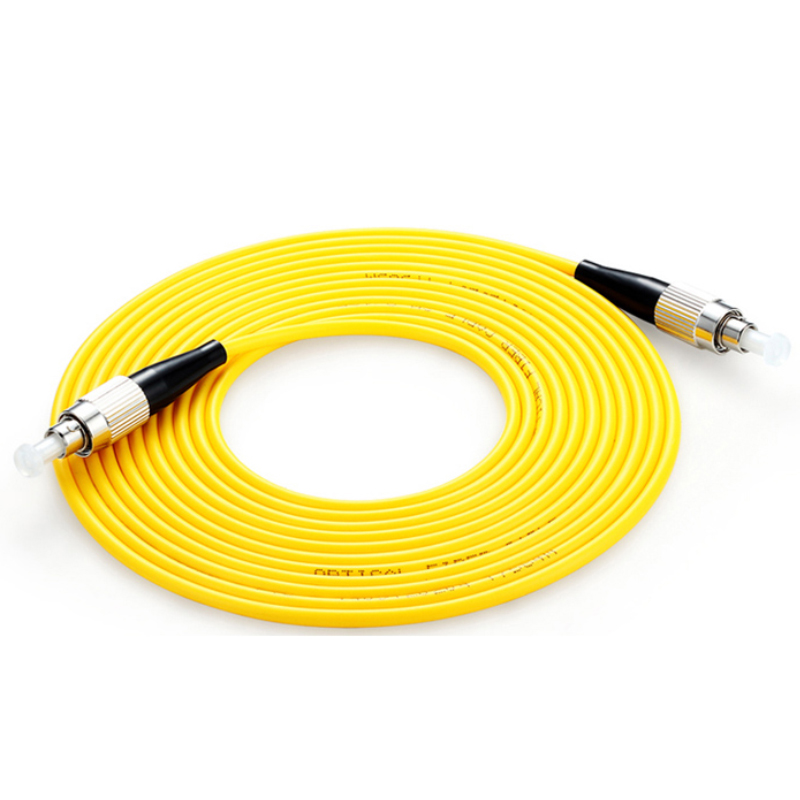

Simplex Single Mode FC UPC SC Optical Jumper Fiber optic Patch Cord FC UPC Connectors OM3 patch cord

FC UPC patch cord

Quantity:

Contact Now

add to cart

Simplex Single Mode FC UPC SC Optical Jumper Fiber optic Patch Cord FC UPC Connectors OM3 patch cord

1.Product Introduction

Single mode and multi mode SC fiber optic patch cables, SC-LC, SC-ST, SC-FC, SC-MU, SC-MTRJ, SC-E2000, 9/125μm, 50/125μm, 62.5/125μm, SM, MM, simplex, duplex, UPC, APC, PC. Customized design cables are available.

The SC fiber optic patch cord is one of the earliest type and one of the most commonly used fiber optic cable, it is convenient to use and cost saving, It is the most cheapest type fiber optic patch cable. SC fiber patch is widely uesed in fiber optic networks. SC fiber patch cable is with zirconia sleeve and plastic housing.

2.Features
♦Superior performance and high reliability
♦Many connector types available
♦Low insertion loss and high return loss
♦Accomplish the movement connect of optic fiber transfer
3.Application
♦ For room equipment internal link
♦ For ODF internal link
4.Technical Specifications

Item	SM			MM
Link Type	FC/PC	FC/UPC	FC/APC	FC/PC
	SC/PC	SC/UPC	SC/APC	SC/PC
	ST/PC	ST/UPC		ST/PC
	LC/PC	LC/UPC		LC/PC
	MU/PC	MU/UPC		MU/PC
Return Loss	≥45dB	≥50dB	≥60dB	≥35dB
Insertion Loss	≤0.2dB
Operating Temperature	-40°C ~ +80°C
Repeatability	≤0.1dB
Interchangeability	≤0.2dB
Insertion and Pull Times	1000
