Model NO.

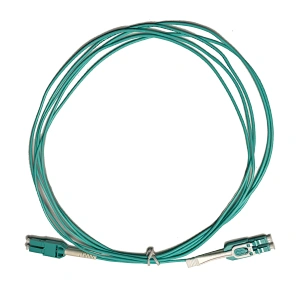

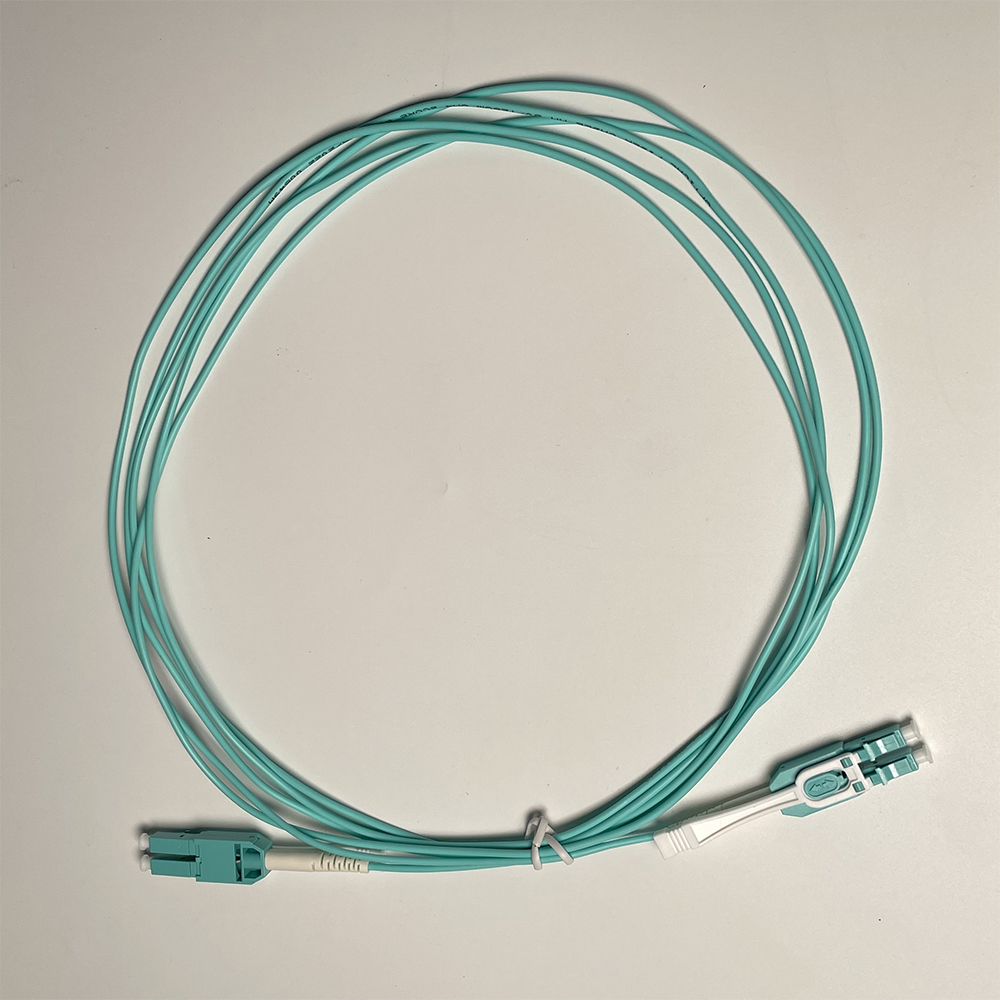

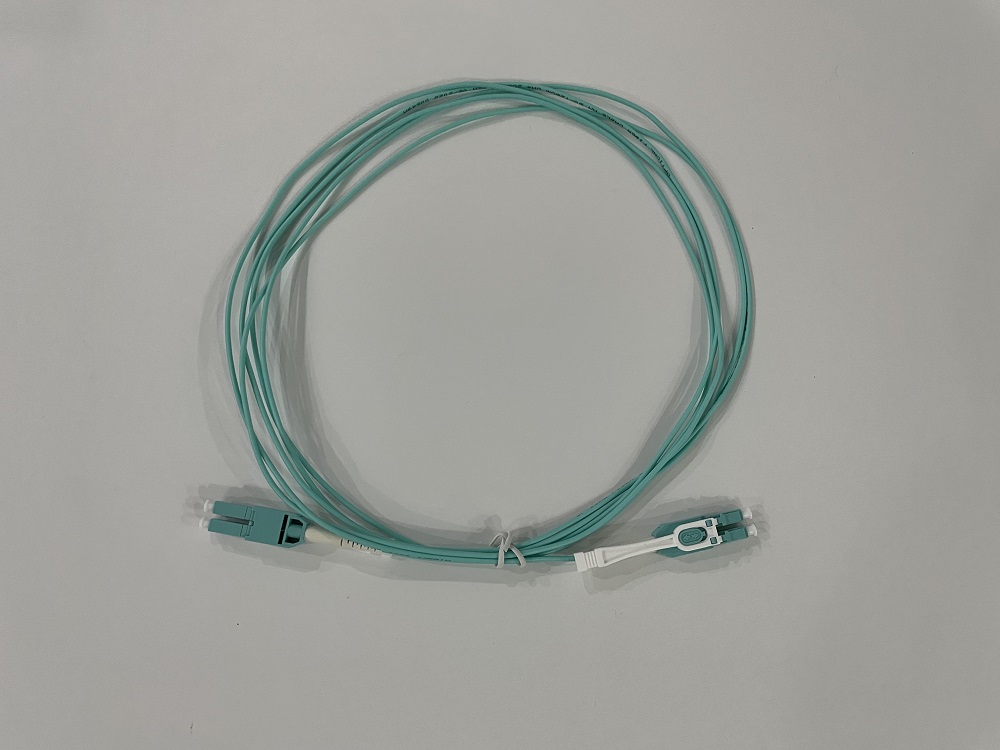

LC UPC Fiber Optic Uniboot patch cord
Quantity:

Push-Pull LC UPC Fiber Optic Uniboot patch cord With push pull tabs OM4 PVC 2.0mm 1M LC UPC Uniboot Patch Cord



Product features

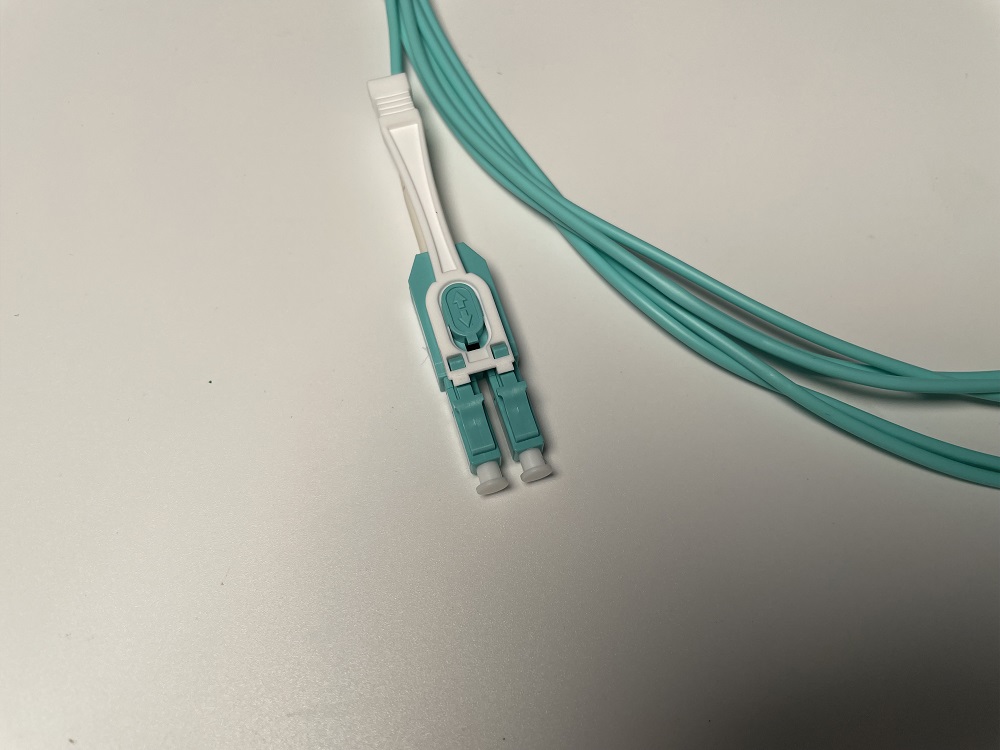

Uniboot with a Single Housing
* Unique Push-Pull Design and Function
* Interchangeable polarity
* Low insertion loss and added loss.
* Height of attenuation.
* High back loss, small volume, light weight.
* End-face geometry and quality superior than IEC and Telcordia standards.
* LSZH, OFNP, OFNR cable jacket.
* Mechanical performance: IEC 61754-20 standard.
* RoHS and REACH materials compliant
.
Applications
* Data Centers
* Local Area Networks
* High-Density Applications
* Interconnects * Cross-connects

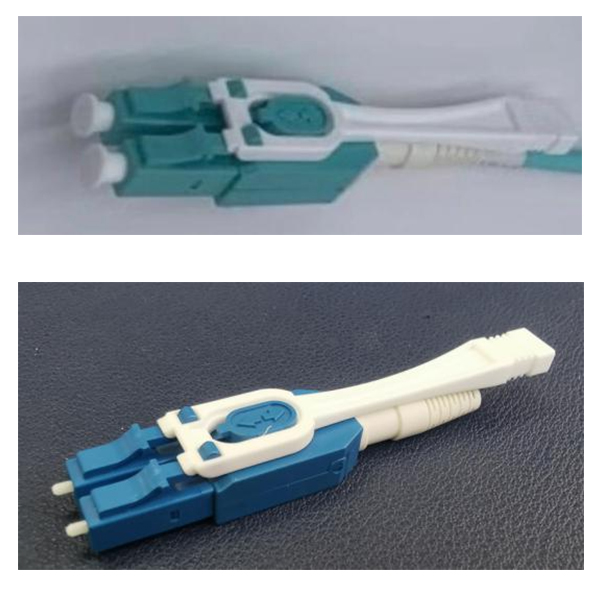

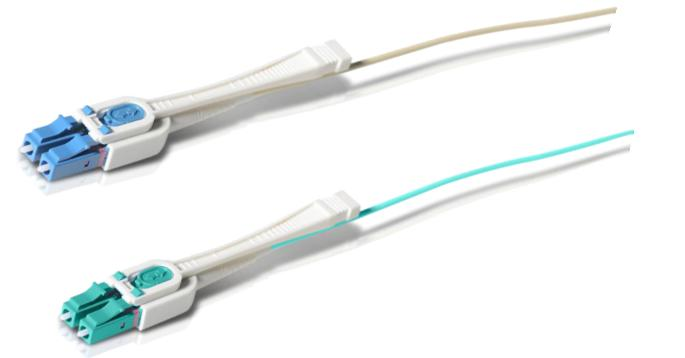

Product schematic diagram

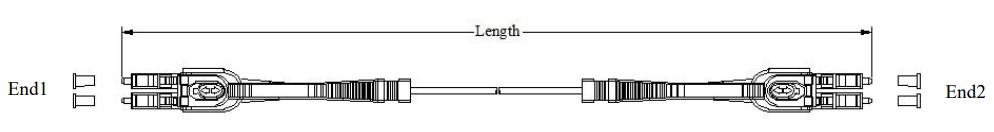

LC Uniboot Push-Pull (Switch Polarity) 2.0mm patchcord

Connector Types
Type
Reference
Note
WTL9 LC uniboot
IEC 61754-20
Multimode OM4
Aqua connectors ,white boot
Patch cord versions
Jumper tolerance requirement

Overall length (L) (M)
length of tolerance(CM)
0<L≤20
+10/-0
20<L≤40
+15/-0
L>40
+0.5%L/-0

Polarity Overview

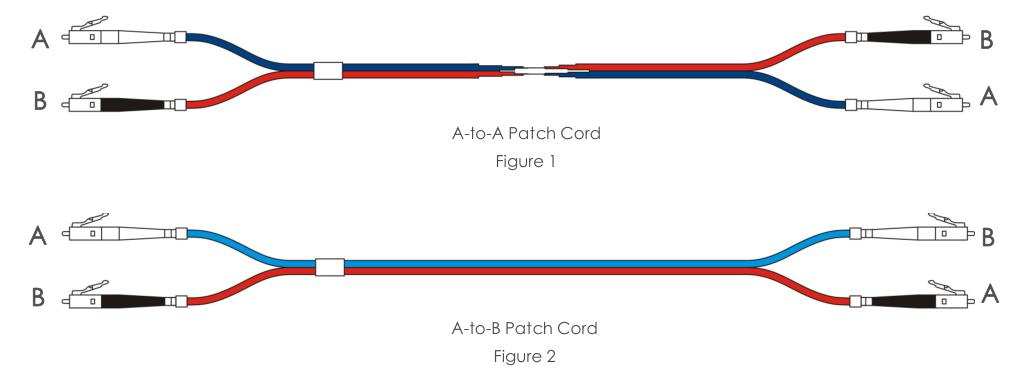

Two types of duplex fiber patch cords are defined in the TIA standard: A-to-A type shown in Figure 1 and
A-to-B type shown in Figure 2.
Note: A-to-A patch cords are not commonly deployed and should be used only when necessary as part of
a polarity method (See ANSI/TIA-568-C.0)

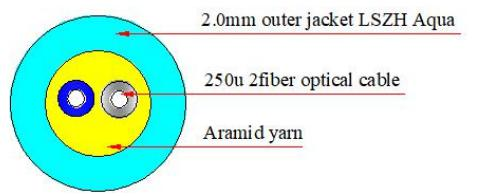

Cable Structure




Mechanical Characteristics
Test
Conditions
Reference
Endurance
500 matings
IEC61300-2-2
Vibration
Frequency: 10 to 55Hz, Amplitude: 0.75mm
IEC61300-2-1
Cable retention
100N (patch cable);
IEC61300-2-4
Strength of coupling mechanism
80N for 2 to 3mm cable
IEC61300-2-6
Cable torsion
15N for 2 to 3mm cable
IEC61300-2-5
Fall
10 drops, 1m drop height
IEC61300-2-12
Static lateral load
1N for 1h (patch cable);
IEC61300-2-42
Cold
-25°C, 96h duration
IEC61300-2-17
Dry heat
+70°C, 96h duration
IEC61300-2-18
Change of temperature
-25°C to +70°C, 12 cycles
IEC61300-2-22
Humidity
+40°C at 93%, 96h duration
IEC61300-2-19
