Model NO.
SC UPC Single mode duplex patch cord
Quantity:

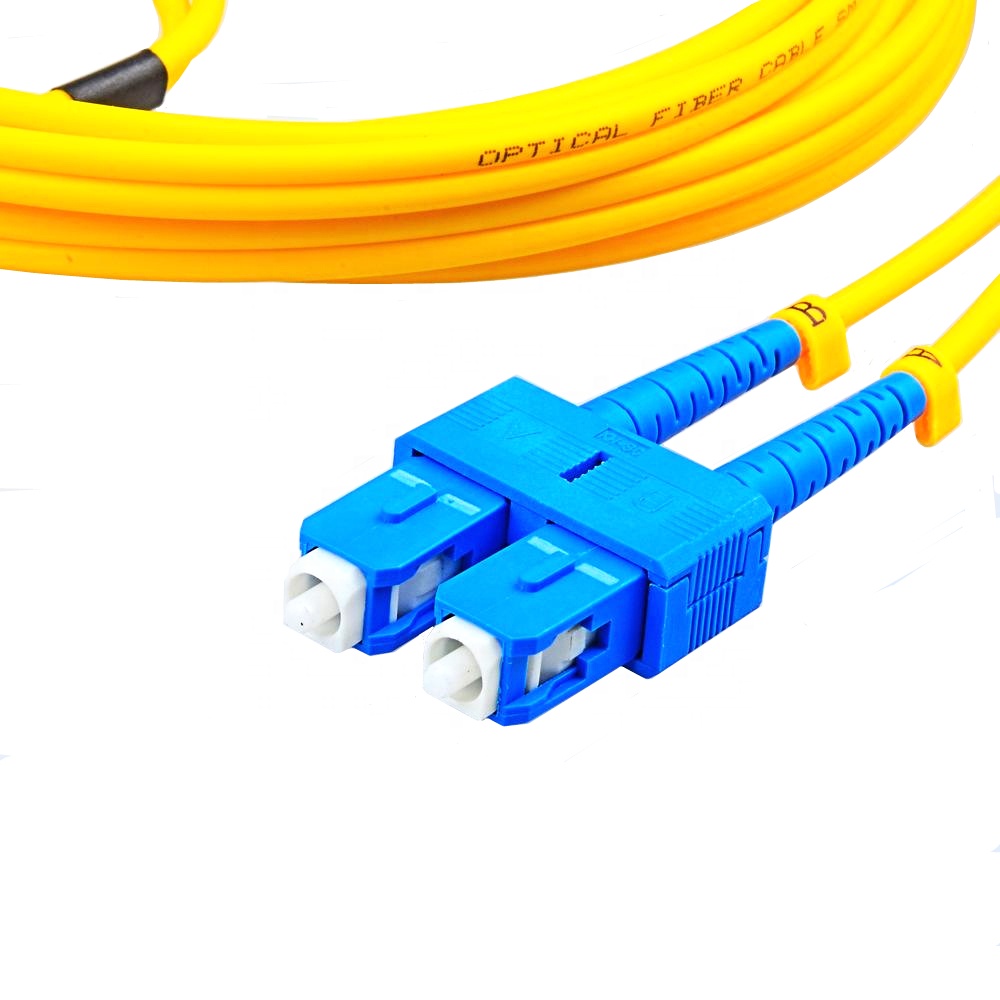

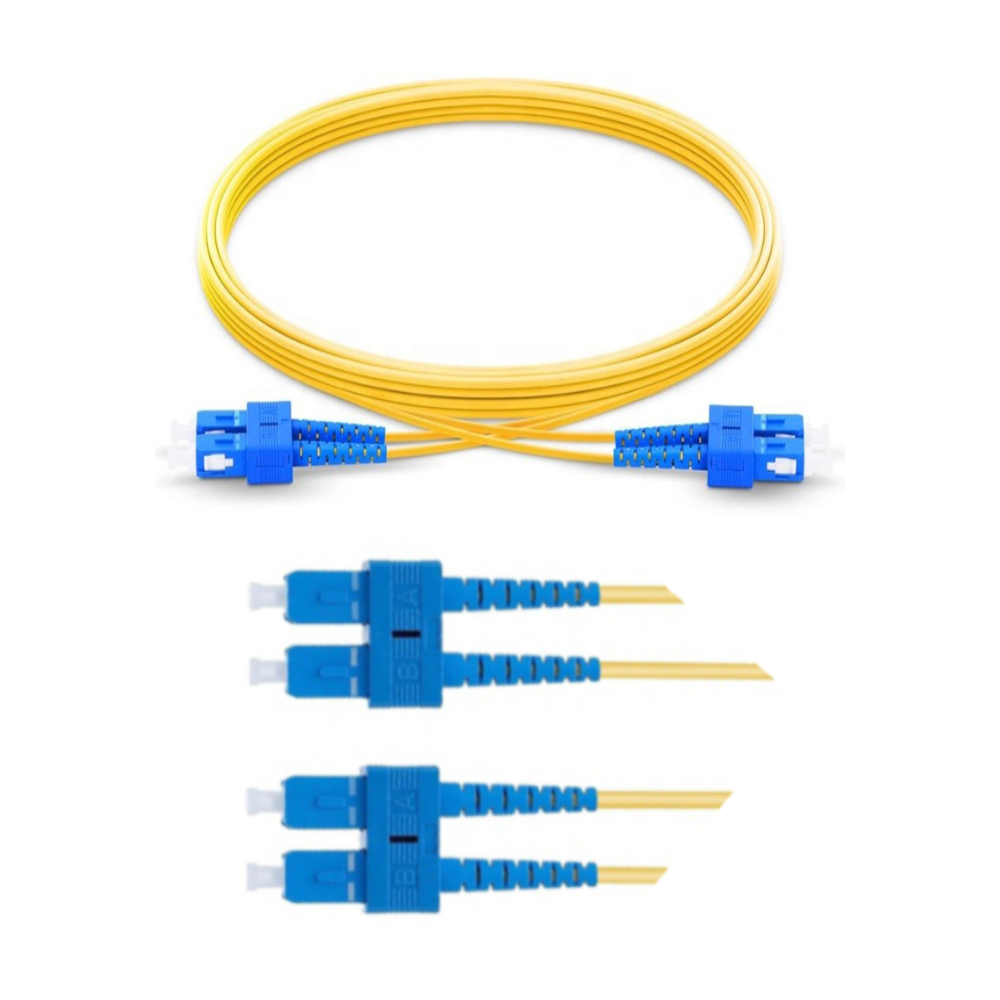

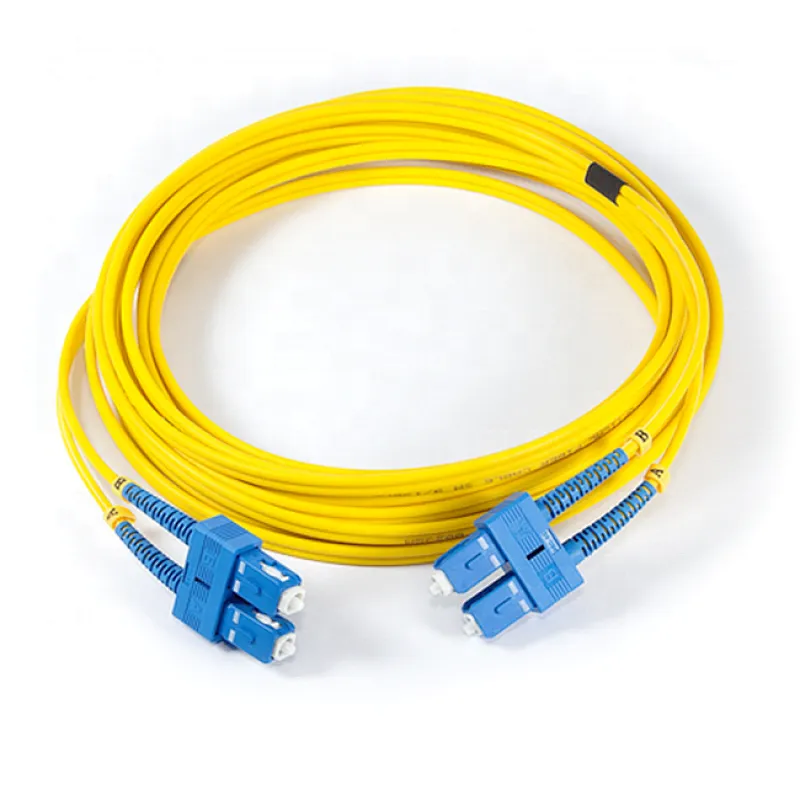

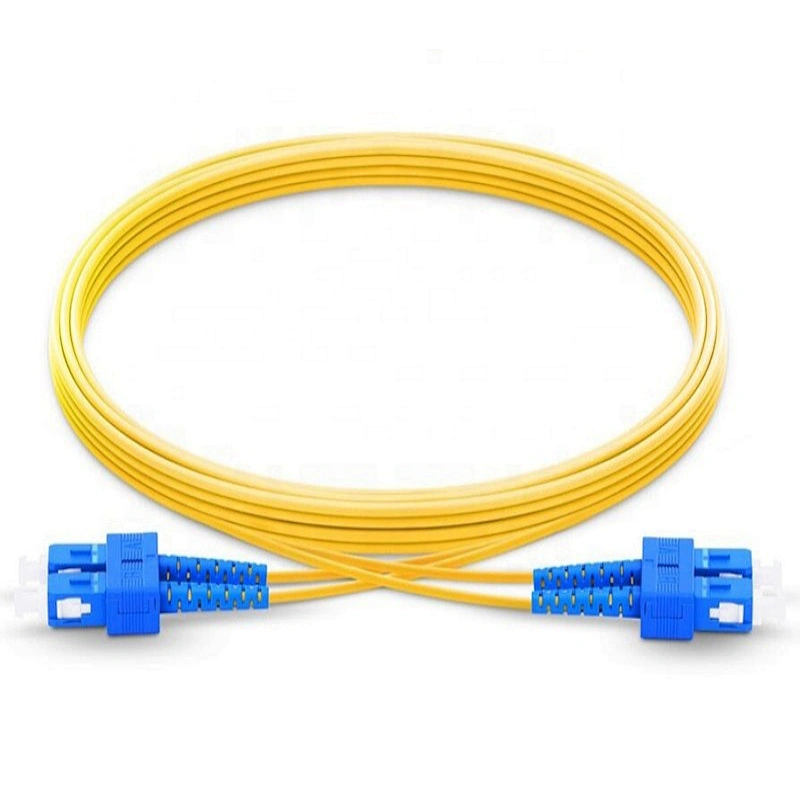

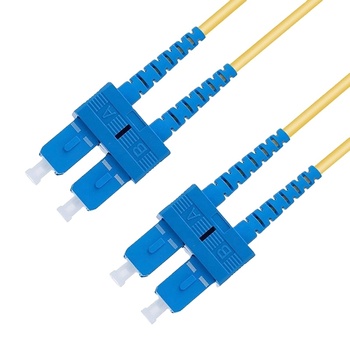

2.0mm 3.0mm SC UPC to SC UPC duplex Jumper 1m 2m 3m 5m Single mode G652d SC fiber optic patch cord patchcord



SC Fiber Optic Patch Cord's Features:

---Low insertion and back reflection loss
---Good exchangeability
---Good durability
---High temperature stability
---Standard: Telcordia GR-326-CORE

Applications:

  • CATV; Active device termination;
  • Telecommunication networks;
  • Metro;
  • Local Area Networks;
  • Data processing networks;
  • Test equipment;
  • Premise installation;
  • Wide Area Networks;

Patch Cord's Technical Specification:

 Items                                   Single mode                                                         Multimode
PCUPCAPC62.5/12550/12550/125 10G
Insertion Loss<0.2dB<0.3dB
Return Loss≥45dB≥50dB≥60dB            ≥35dB
Durability<0.1dB typical change,
500 matings
Operating Temperature-40 to +75-40 to +75
Ferrule Hole Sizes125.0+1/-0um, Conentricity:≤1um125um,Conectricity:1≤3um
125.3+1/-0um, Conentricity:≤1um127um,Conectricity:1≤3um
125.5+1/-0um, Conentricity:≤1um128um,Conectricity:1≤3um
126.0+1/-0um, Conentricity:≤1um



Order Option:

  1. Simplex/duplex
  2. loopback patch cord
  3. mode condition patch cord
  4. Fanout patch cord/pigtail
  5. Pigtails
  6. PC/UPC/APC polishing
  7. Various boot (cable) color/ size
