Model NO.
WT-3226A
Quantity:

product description

3226A Power Meter is specially designed for system, covering wavelength from 1270~1610nm.It measures and monitors optical power and attenuation value of 18 channels from wavelength 1270nm to 1610nm wavelength.
All calibrated wavelengths will be tested simultaneously and all test results will show in the LCD screen.
This power meter features simple operation, quick response and high measurement accuracy which make it an ideal tester in system installation and maintenance.

Features

  1. Simultaneously test and show 18 wavelengths
  2. Friendly interface and easy operation
  3. Save and upload test results via USB port
  4. 1000 records
  5. Columnar graphics or list mode to show test data
  6. Color TFT-LCD display,high resolution 320*240
  7. Built-in clock and can edit test fiber number
  8. Quick start operation, requiring no warm-up time
  9. Light weight

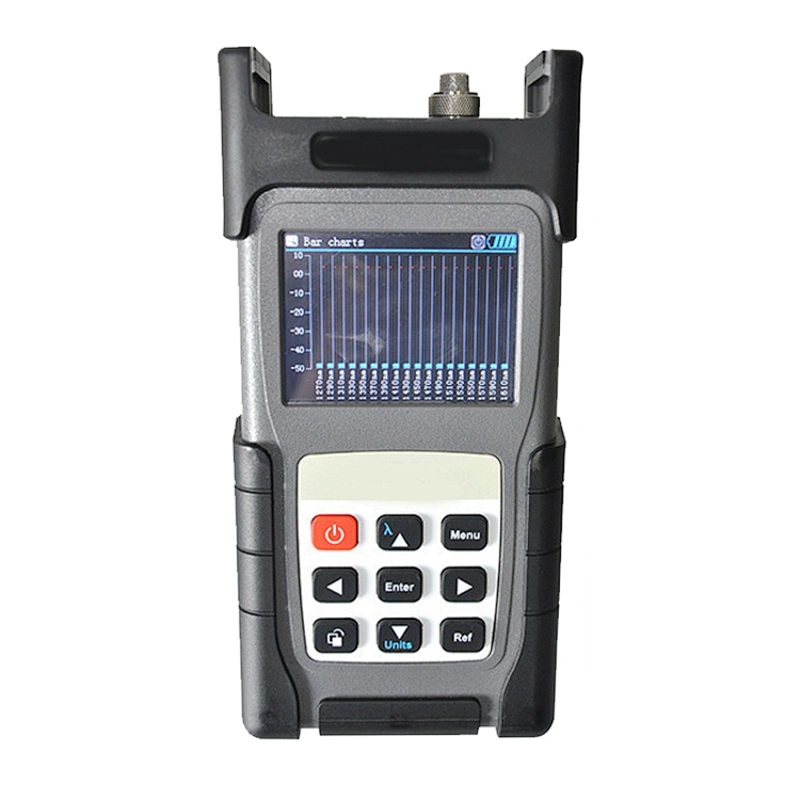

Support 18 Wavelength Detection CWDM Optical Power Meter with USB Interface.jpg

Specifications

Model

3226A Optical Power Meter

Wavelength Range

1270 ~ 1610 nm

Number of Channels

18

Wavelength resolution

20nm

Measuring Wavelength (nm)

1270/1290/1310/1330/1350/1370/1390/1410/1430 1450/1470/1490/1510/1530/1550/1570/1590/1610

Dynamic range

+10 to -40dBm

Resolution

0.01dB

Optical interface

FC/PC(FC, LC, ST available)

Operating Temperature

-10 to +60℃

Power supply

Rechargeable Battery/AC power adapter

Time of Operating

10h

Dimension

220cm*110cm*70cm

Weight

850g

Application

A fully functional handheld CWDM optical network channel detector, designed and developed for the installation, acceptance and maintenance of CWDM optical network.It is mainly used to measure and monitor the power of up to 18 CWDM channels.It is an alternative to the high cost spectrometers currently used to test CWDM, providing fast and reliable measurements in a variety of environments.Due to its small size, light weight, durable, has become the CWDM access network maintenance and installation necessary special tools.
