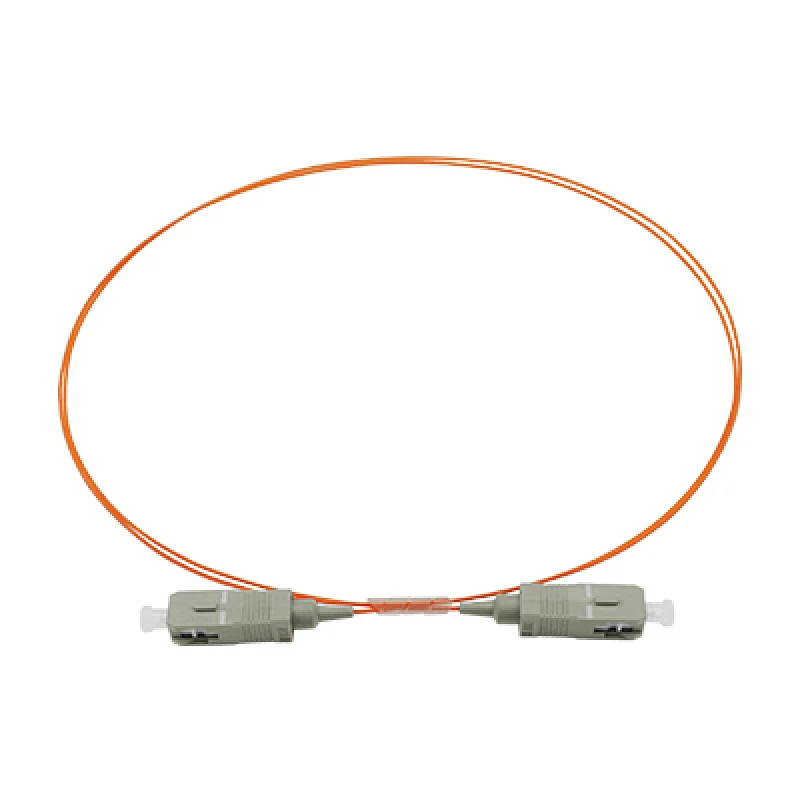

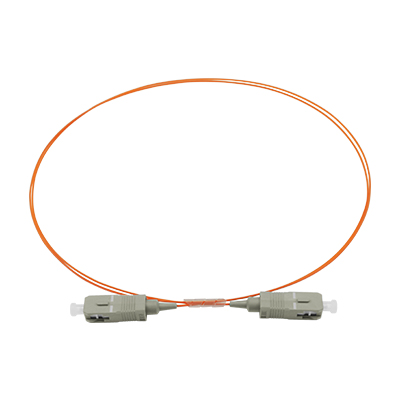

SC SX 0.9mm Patch Cord
Connector A: SC | Connector B:SC |
Fiber Mode:OM1/OM2 | Fiber Count:Simplex |
Fiber Grade: Bend Insensitive | Minimum Bend Radius:30 mm |
Polish Type: PC | Cable Diameter:0.9 mm |
Cable Jacket: PVC/LSZH | Jacket Color: Orange |
Wavelength:850nm, 1300nm | Durability:>1000 Times |
Insertion Loss:≤0.25 dB | Interchangeability:≤0.2 dB |
Return Loss:/ | Vibration:≤0.2 dB |
Operating Temperature:-40~85°C | Storage Temperature: -40~85°C |
Specification
Items | Single mode | Multimode | |||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G/40G | ||
Insertion Loss | <0.2dB | <0.3dB | |||||
Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB | |||
Durability | <0.1dB typical change, 500 matings | ||||||
Operation temperature | -40~+75(℃) | ||||||
Ferrule hole size | 125.0+1/-0um, Conentricity:≤1um | 125um,Conectricity:1≤3um | |||||
125.0+1/-0um, Conentricity:≤1um | 127um,Conectricity:1≤3um | ||||||
125.5+1/-0um, Conentricity:≤1um | 128um,Conectricity:1≤3um | ||||||
126.0+1/-0um, Conentricity:≤1um | |||||||
Order information
Price

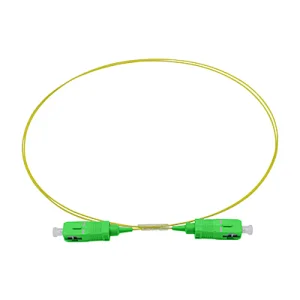

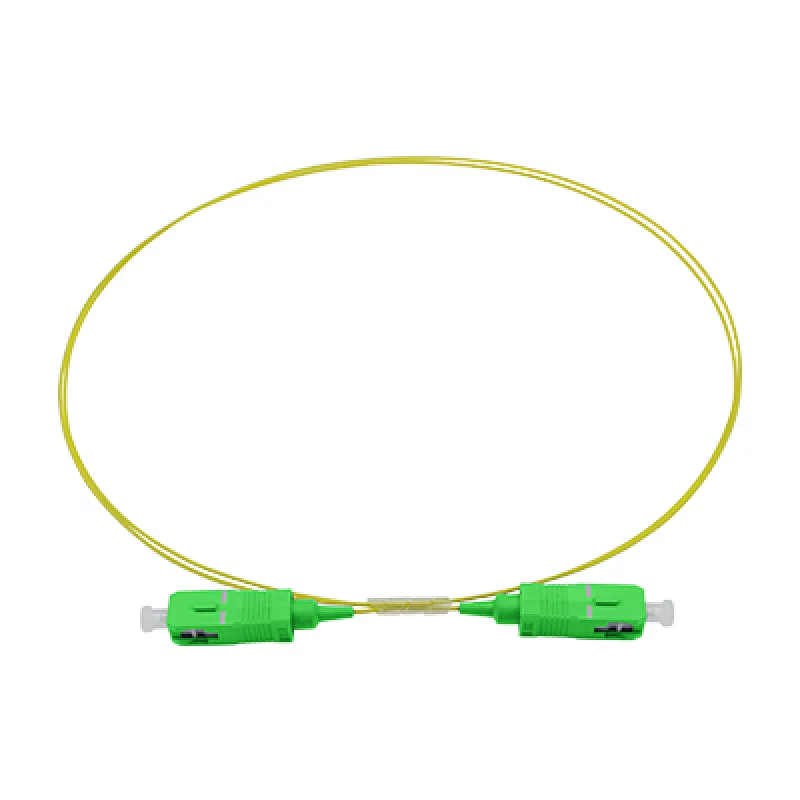

| APC | USD 1.00/pc |
| UPC | USD 2.00/pc |

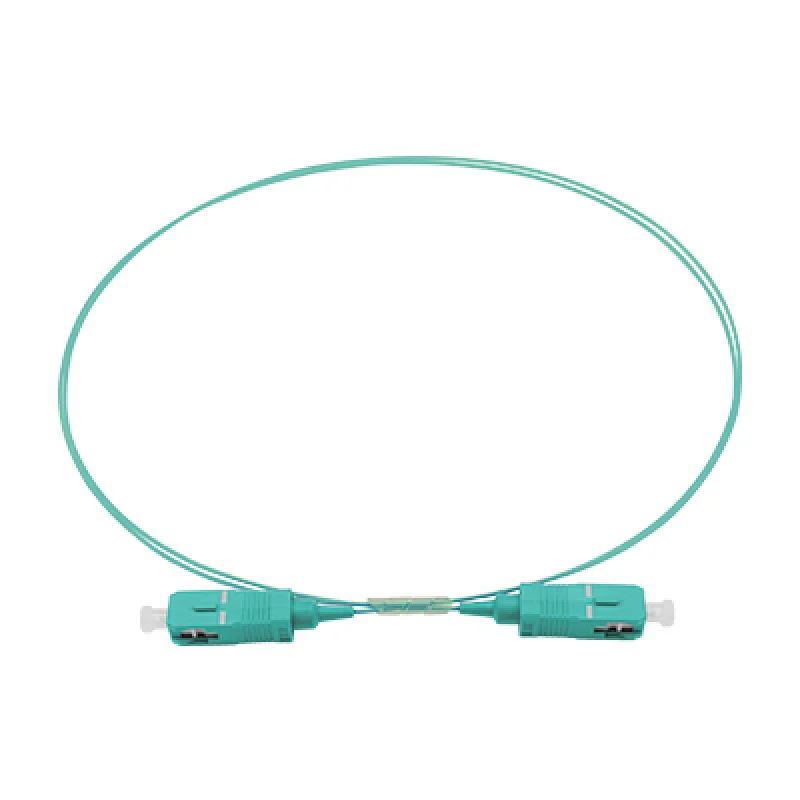

| OM3 | USD 3.00/pc |

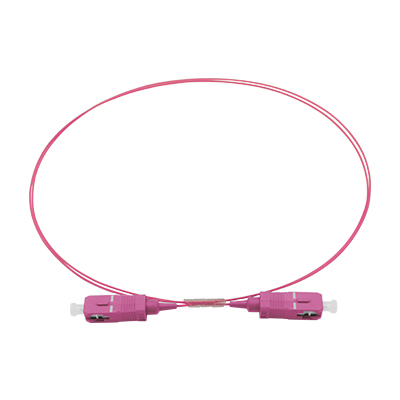

| OM4 | USD 3.00/pc |
| waterproof | USD 5.00/pc |
