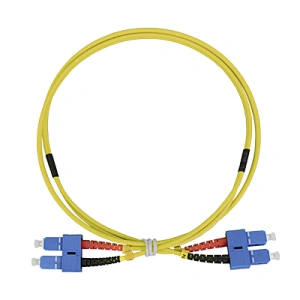

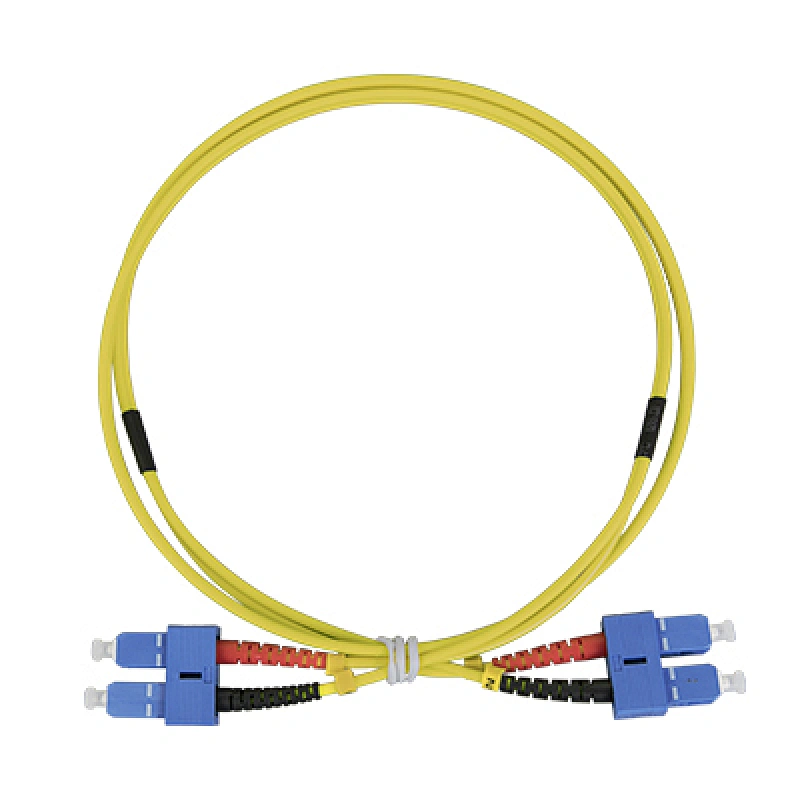

SC DX 2.0mm Patch Cord
SC DX 2.0mm Patch Cord
SC DX 2.0mm Patch Cord
SC DX 2.0mm Patch Cord
SC DX 2.0mm Patch Cord
SC DX 2.0mm Patch Cord
SC DX 2.0mm Patch Cord
SC DX 2.0mm Patch Cord
SC DX 2.0mm Patch Cord
SC DX 2.0mm Patch Cord
SC DX 2.0mm Patch Cord

SC DX 2.0mm Patch Cord

Model NO.
SC DX 2.0mm Patch Cord
Price:
US $ 0.10-2.00 / pieces
Delivery:
EXW
Minimum order quantity:
100 pieces
Supply Ability:
10000 pieces / Week
Country of Origin:
China
Stock Time:
10 Days
Quantity:

Connector A: SC

Connector B: SC

Fiber Mode: 9/125 μm

Fiber Count: Duplex

Fiber Grade: G.652D/G.657A2

Minimum Bend Radius:30 mm

Polish Type: APC

Cable Diameter: 2.0mm

Cable Jacket: PVC/LSZH

Jacket Color: Yellow

Wavelength:1310 nm/1550 nm

Durability:>1000 Times

Insertion Loss:≤0.25 dB

Interchangeability:≤0.2 dB

Return Loss:≥55 dB

Vibration:≤0.2 dB

Operating Temperature:-40~85°C

Storage Temperature: -40~85°C

Specification

Items

Single mode

Multimode

PC

UPC

APC

62.5/125

50/125

50/125 10G/40G

Insertion Loss

<0.2dB

<0.3dB

Return Loss

≥45dB

≥50dB

≥60dB

≥35dB

Durability

<0.1dB typical change, 500 matings

Operation temperature

-40~+75(℃)

Ferrule hole size

125.0+1/-0um, Conentricity:≤1um

125um,Conectricity:1≤3um

125.0+1/-0um, Conentricity:≤1um

127um,Conectricity:1≤3um

125.5+1/-0um, Conentricity:≤1um

128um,Conectricity:1≤3um

126.0+1/-0um, Conentricity:≤1um
