Shenzhen Wirenet Telecom Technology Co., Ltd.518116About UsRoom 202, 2rd floor, 2 Building,Jingheyuan Industry Park,No.2004 Banxuegang Road, Bantian Street, Longgang District, Shenzhen, ChinaShenzhen Wirenet Technology Co., Ltd, has 10 years’experience on manufacturing and supplying fiber optic cabling system products.
Our production base including 7000m2of fiber optic cable and patch cord workshop; 2000m2of fiber optic connector and adapter workshop, and 1000m2 fiber optic PLC splitter workshop, and a 700m2 of head office with Fiber optic testing Lab.Shenzhen Wirenet Telecom Technology Co., Ltd.518116About UsRoom 202, 2rd floor, 2 Building,Jingheyuan Industry Park,No.2004 Banxuegang Road, Bantian Street, Longgang District, Shenzhen, ChinaShenzhen Wirenet Technology Co., Ltd, has 10 years’experience on manufacturing and supplying fiber optic cabling system products.
Our production base including 7000m2of fiber optic cable and patch cord workshop; 2000m2of fiber optic connector and adapter workshop, and 1000m2 fiber optic PLC splitter workshop, and a 700m2 of head office with Fiber optic testing Lab.Shenzhen Wirenet Telecom Technology Co., Ltd.Shenzhen Wirenet Telecom Technology Co., Ltd.Shenzhen Wirenet Telecom Technology Co., Ltd.Shenzhen Wirenet Telecom Technology Co., Ltd.She

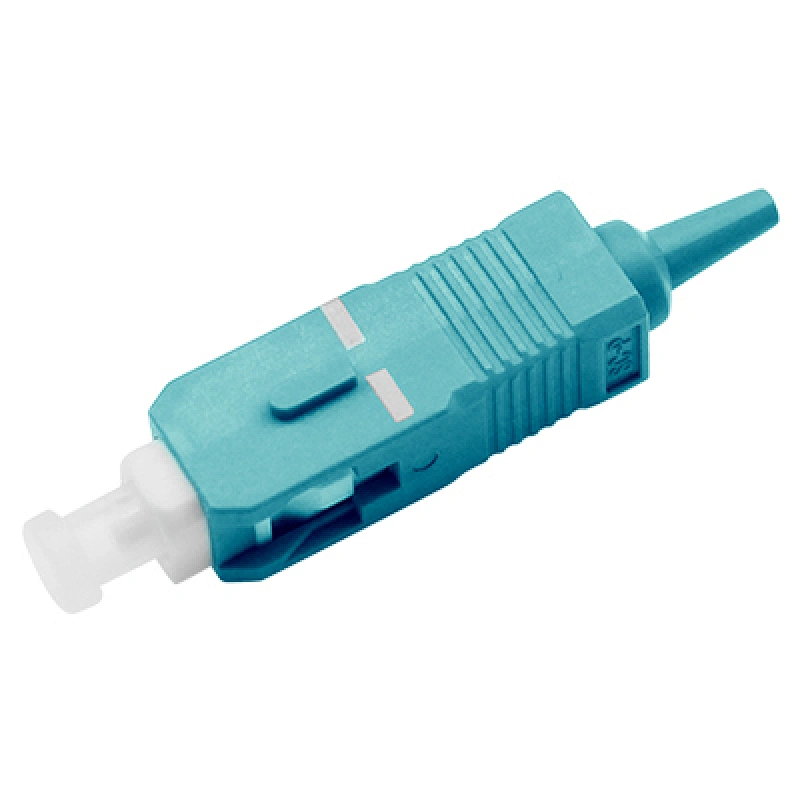

Connector Parts: Dust Cap, Aqua Outer Housing, Inner Frame, Ferrule Assembly, Spring, Stopper, Aqua Boot |
| Fiber Count: Simplex | Insertion Loss: ≤0.25dB |
| Fiber Mode: Multi Mode | Return Loss: / |
| Polish Type: PC | Durability: >1000times |
| Cable Diameter: 0.9mm | Operating Temp:-40~85°C |
Specification

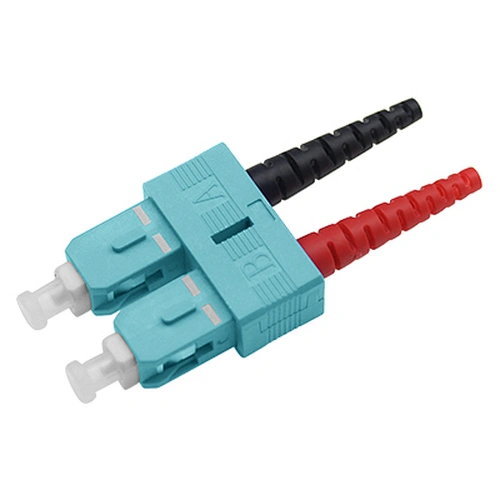

| parameter | SC 2.0mm/3.0mm DX Connector |
| SM | MM |
| PC | UPC | APC | PC |
| Insertion loss | ≤0.25dB | ≤0.25dB | ≤0.25dB | ≤0.25dB |
| Return loss | ≥50dB | ≥55dB | ≥60dB | / |
| operating wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Ferrule Concentricity | ≤1um | ≤4um |
Application
Test Equipment Telecommunication Networks Local Area Networks (LANs) | Data Processing Networks Premise Installations Wide Area Networks (WANs) | Industrial, Medical & Military CATV, Metro Active Device Termination |
