Model NO.
OPGW Composite Ground Wire
Quantity:

Optical Fiber Composite Ground Wire Cable Stainless Steel Tube OPGW cable


Optical Fiber Composite Ground Wire Cable Stainless Steel Tube OPGW cable

The opgw 24 Cables are capable of providing the grounding and lightning protection required by overhead transmission lines combined with an optical transmission path along new or existing low and medium tension network lines. OPGW fiber optic cable

Since the telecommunication market has been opened up to new operators, data transmission and video service providers, there is now the opportunity to install OPGW cable in a wide variety of transmission line installations. OPGW Manufacturer OPGW Wholesaler China opgw 24 manufacturer

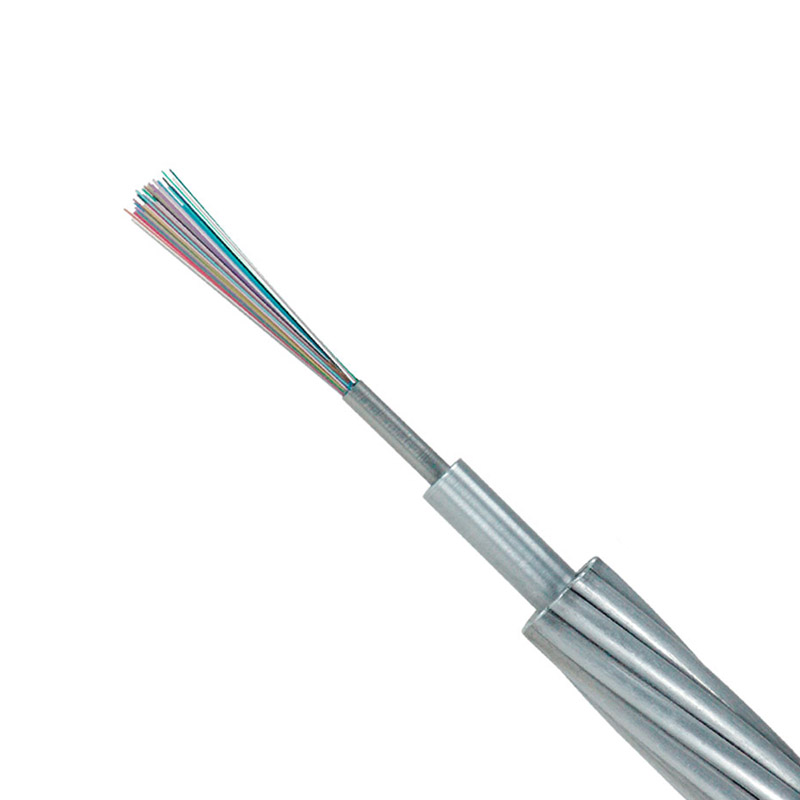

1. Central Tube Optical Ground Wire (OPGW)
The Central Tube optical fiber ground wire (OPGW) is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their esign is fully adapted to the most common electric line needs.

Specification

Fiber Count

Diameter (mm)

Weight (kg/km)

RTS (KN)

Short Circuit Capacity(KA2s)

OPGW-32(40.6;4.7)

12

7.8

243

40.6

4.7

OPGW-42(54.0;8.4)

24

9

313

54

8.4

OPGW-42(43.5;10.6)

24

9

284

43.5

10.6

OPGW-54(55.9;17.5)

36

10.2

394

67.8

13.9

OPGW-61(73.7;175)

48

10.8

438

73.7

17.5

OPGW-61(55.1;24.5)

48

10.8

358

55.1

24.5

OPGW-68(80.8;21.7)

54

11.4

485

80.8

21.7

OPGW-75(54.5;41.7)

60

12

459

63

36.3

OPGW-76(54.5;41.7)

60

12

385

54.5

41.7

2. Stranded Optical Ground Wire (OPGW)
The opgw 24 is stranded by double or three layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires.

Specification

Fiber Count

Diameter

Weight

RTS

Short Circuit

(mm)

(kg/km)

(KN)

(KA2s)

OPGW-96[121.7;42.2]

12

13

671

121.7

42.2

OPGW-127[141.0;87.9]

24

15

825

141

87.9

OPGW-127[77.8;128.0]

24

15

547

77.8

128

OPGW-145(121.0;132.2)

28

16

857

121

132.2

OPGW-163(138.2;183.6)

36

17

910

138.2

186.3

OPGW-163(99.9;213.7)

36

17

694

99.9

213.7

OPGW-183(109.7;268.7)

48

18

775

109.7

268.7

OPGW-183(118.4;261.6)

48

18

895

118.4

261.6

3.Characteristics:
Stranded Stainless Steel Tube OPGW

  • High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability.

  • Engineering support supervising and providing its own line of accessories hardware.

  • Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental conditions such as lighting

  • To construct OPGW must cut power,resulting in greater loss,thus OPGW must be used in constructing high pressure line over 110kv

  • Apply to the transformation of old lines.


Central (Al-covered) Stainless Steel Tube OPGW

  • High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability.

  • Engineering support supervising and providing its own line of accessories hardware.

  • Larger tensile strength and fault current capacity to reach a better balance of electrical and mechanical performance.

4.Aluminum Tube OPGW

  • Good anti-corrosion performance.

  • Material and structure are uniform,good resistance to vibration fatigue.

  • Short circuit current has small effect on the optical fiber transmission properties.

  • Good anti-lightening performance.
