OPGW have the characteristic that there is no effect of high voltage induction on the data being transmitted through the Fibers. Hence this characteristic of the Fiber is taken into advantage to transmit the data along the high power transmission lines.

opgw optical ground wire is run, or installed between the tops of high-voltage electricity pylons, steel, wood, or concrete poles with appropriate fittings and attachments. The conductive part of the cable, in this case the steel serves to bond adjacent towers to earth ground, and shields the high-voltage conductors from lightning strikes.

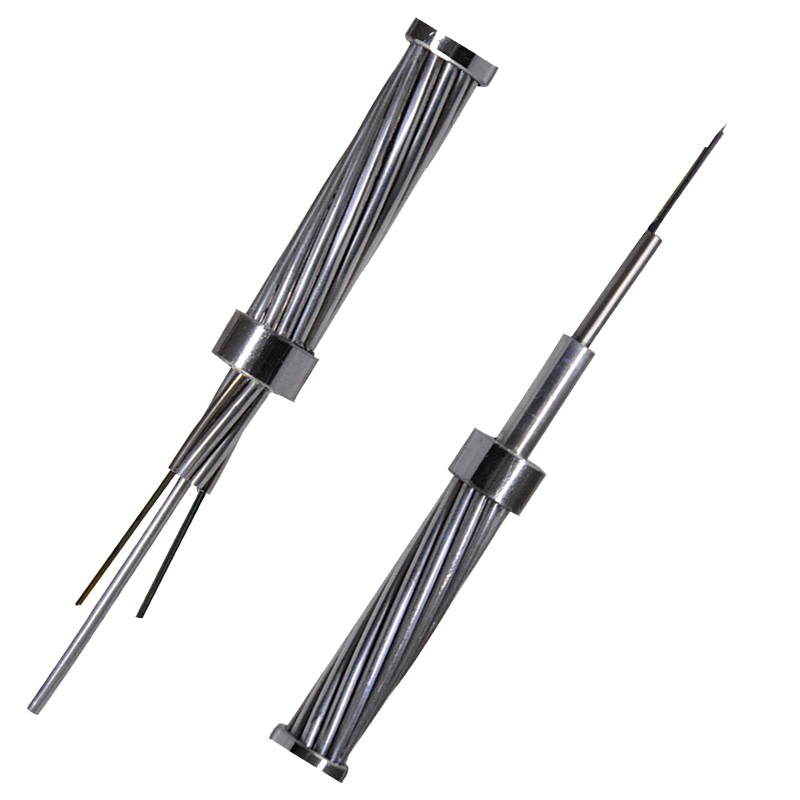

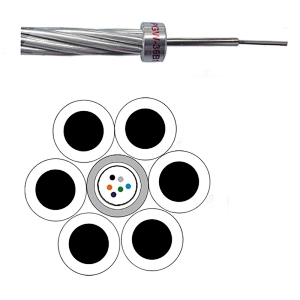

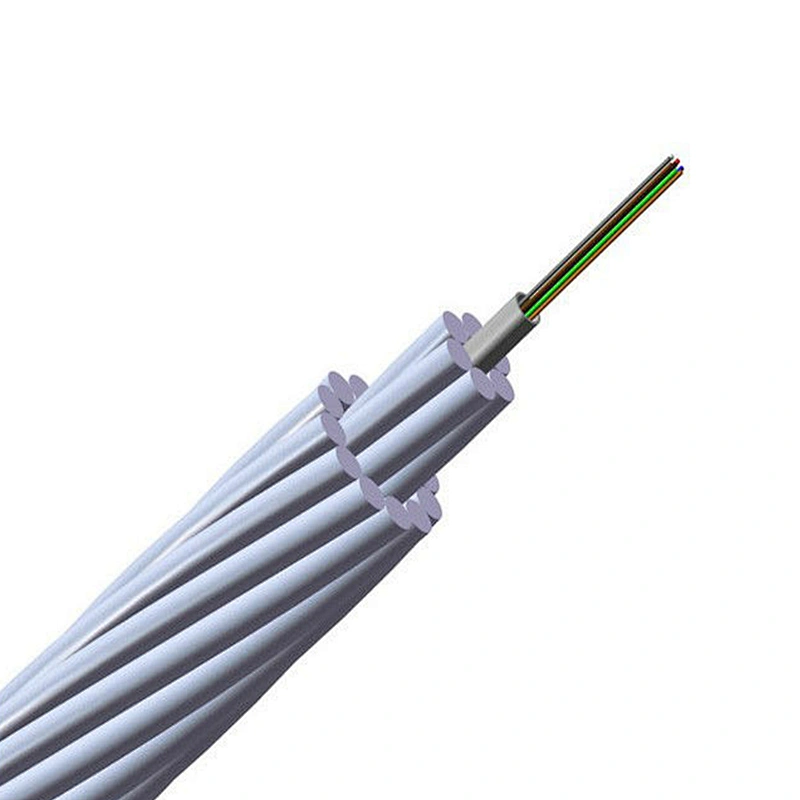

1. Central Tube Optical Ground Wire (OPGW)
The Central Tube opgw optical ground wire (OPGW) is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables ,their esign is fully adapted to the most common electric line needs.

SpecificationFiber CountDiameter (mm)Weight (kg/km)RTS (KN)Short Circuit Capacity(KA2s)
OPGW-32(40.6;4.7)127.824340.64.7
OPGW-42(54.0;8.4)249313548.4
OPGW-42(43.5;10.6)24928443.510.6
OPGW-54(55.9;17.5)3610.239467.813.9
OPGW-61(73.7;175)4810.843873.717.5
OPGW-61(55.1;24.5)4810.835855.124.5
OPGW-68(80.8;21.7)5411.448580.821.7
OPGW-75(54.5;41.7)60124596336.3
OPGW-76(54.5;41.7)601238554.541.7

2. Stranded Optical Ground Wire (OPGW)
The Stranded opgw optical ground wire (OPGW) is stranded by double or three layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires.


Specification

Fiber Count

Diameter

Weight

RTS

Short Circuit

(mm)

(kg/km)

(KN)

(KA2s)

OPGW-96[121.7;42.2]

12

13

671

121.7

42.2

OPGW-127[141.0;87.9]

24

15

825

141

87.9

OPGW-127[77.8;128.0]

24

15

547

77.8

128

OPGW-145(121.0;132.2)

28

16

857

121

132.2

OPGW-163(138.2;183.6)

36

17

910

138.2

186.3

OPGW-163(99.9;213.7)

36

17

694

99.9

213.7

OPGW-183(109.7;268.7)

48

18

775

109.7

268.7

OPGW-183(118.4;261.6)

48

18

895

118.4

261.6

3.Characteristics:
Stranded Stainless Steel Tube OPGW

  • High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability.

  • Engineering support supervising and providing its own line of accessories hardware.

  • Seal stainless steel tube superior protection to the fiber optical to moisture and extreme environmental conditions such as lighting

  • To construct OPGW must cut power,resulting in greater loss,thus OPGW must be used in constructing high pressure line over 110kv

  • Apply to the transformation of old lines.


Central (Al-covered) Stainless Steel Tube OPGW

  • High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability.

  • Engineering support supervising and providing its own line of accessories hardware.

  • Larger tensile strength and fault current capacity to reach a better balance of electrical and mechanical performance.

4.Aluminum Tube OPGW

  • Good anti-corrosion performance.

  • Material and structure are uniform,good resistance to vibration fatigue.

  • Short circuit current has small effect on the optical fiber transmission properties.

  • Good anti-lightening performance.
