FTTA Outdoor IP67 Waterproof Optical Patchcord Optitap SC/APC Connector
FTTA Outdoor IP67 Waterproof Optical Patchcord Optitap SC/APC Connector

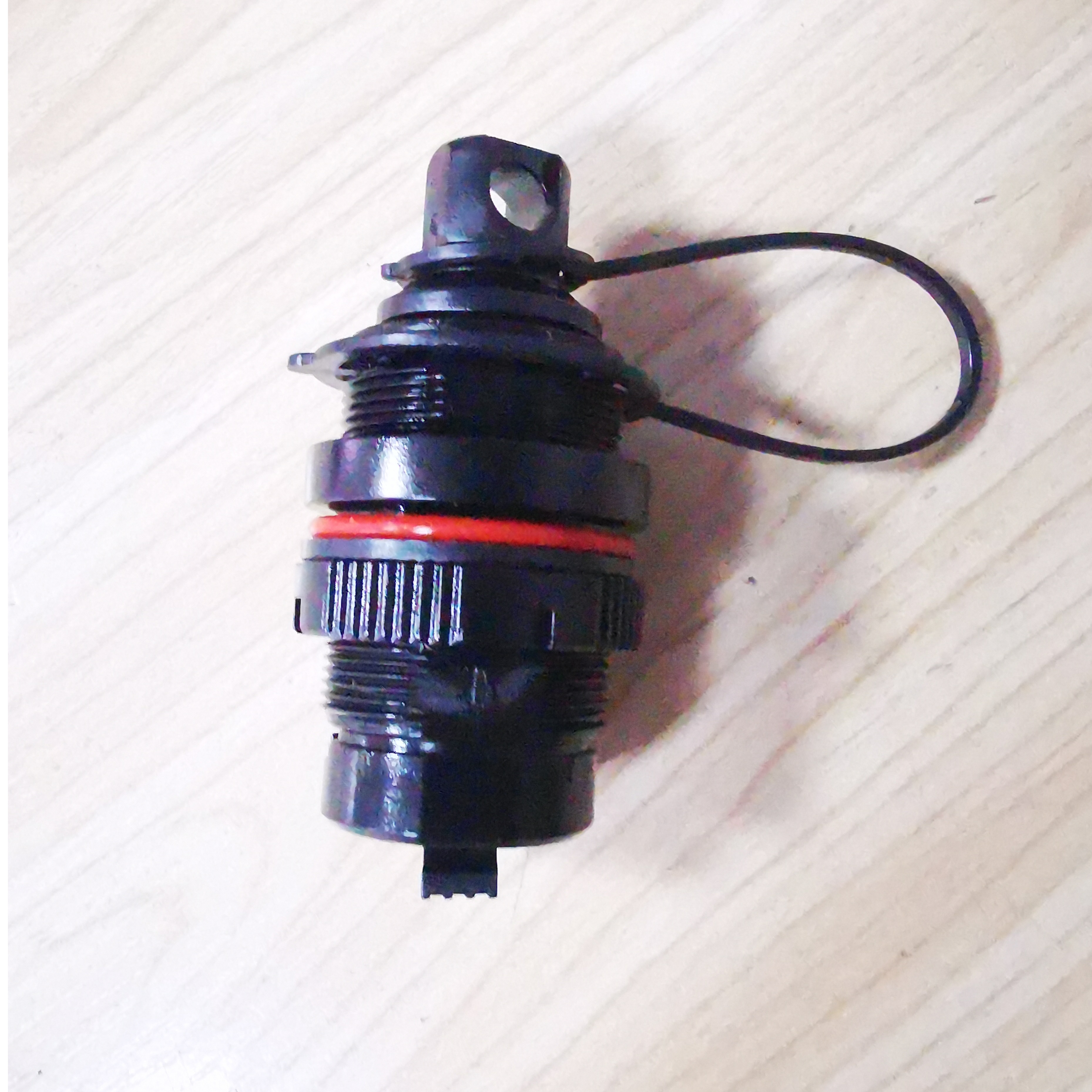

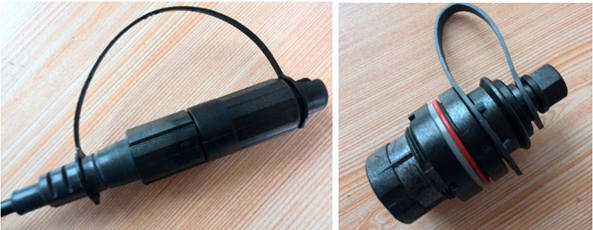

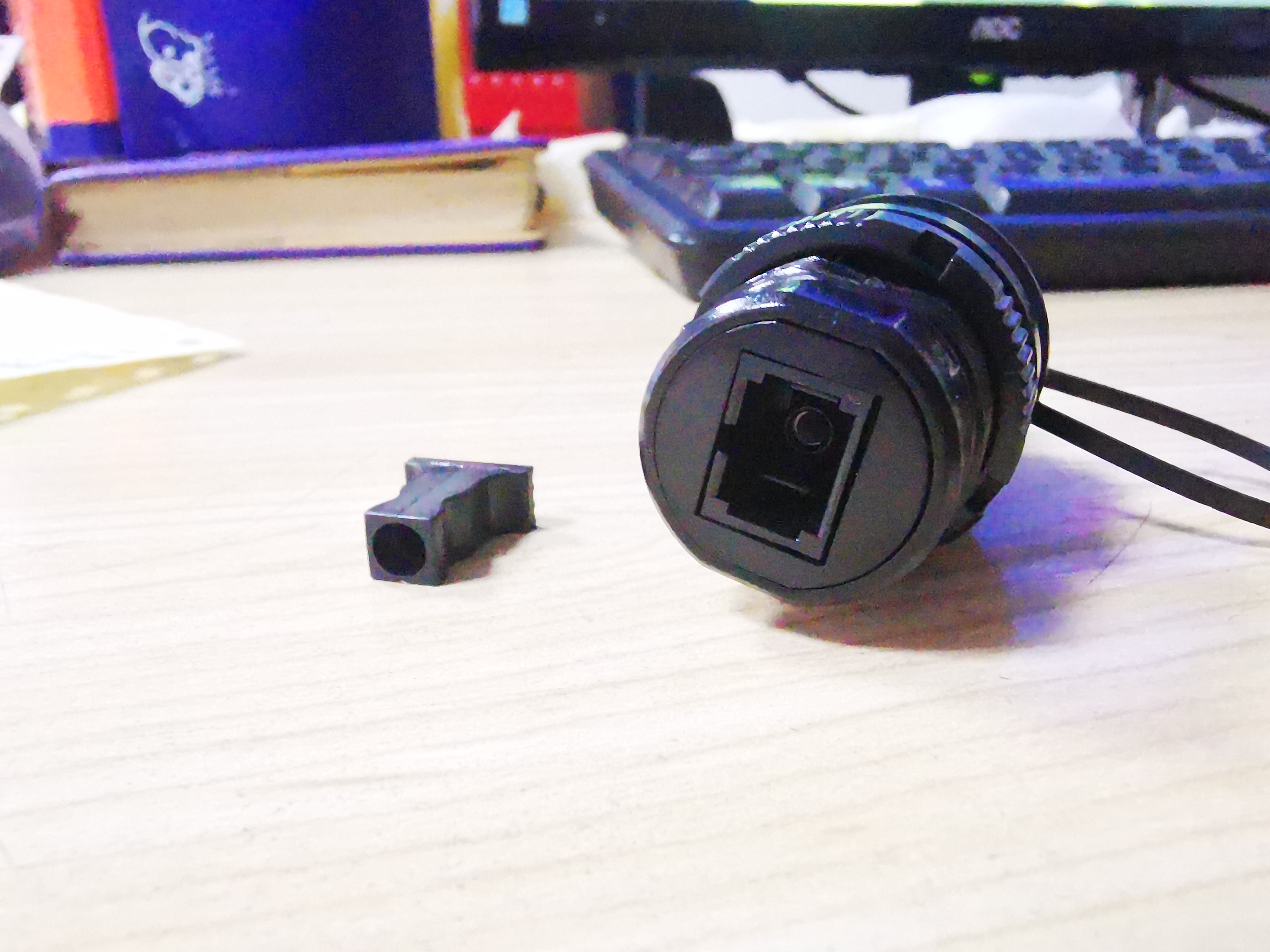

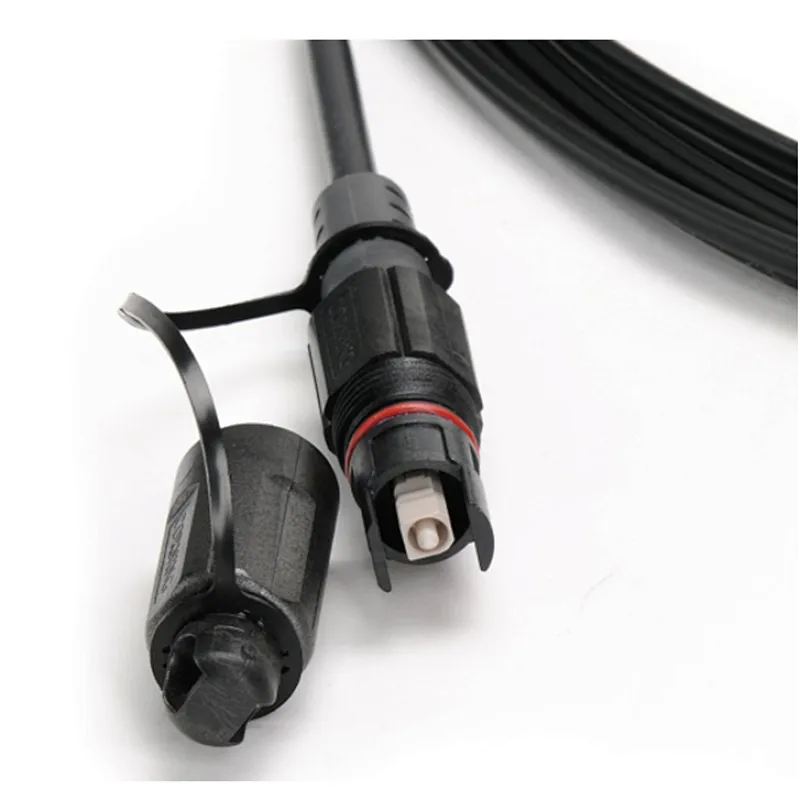

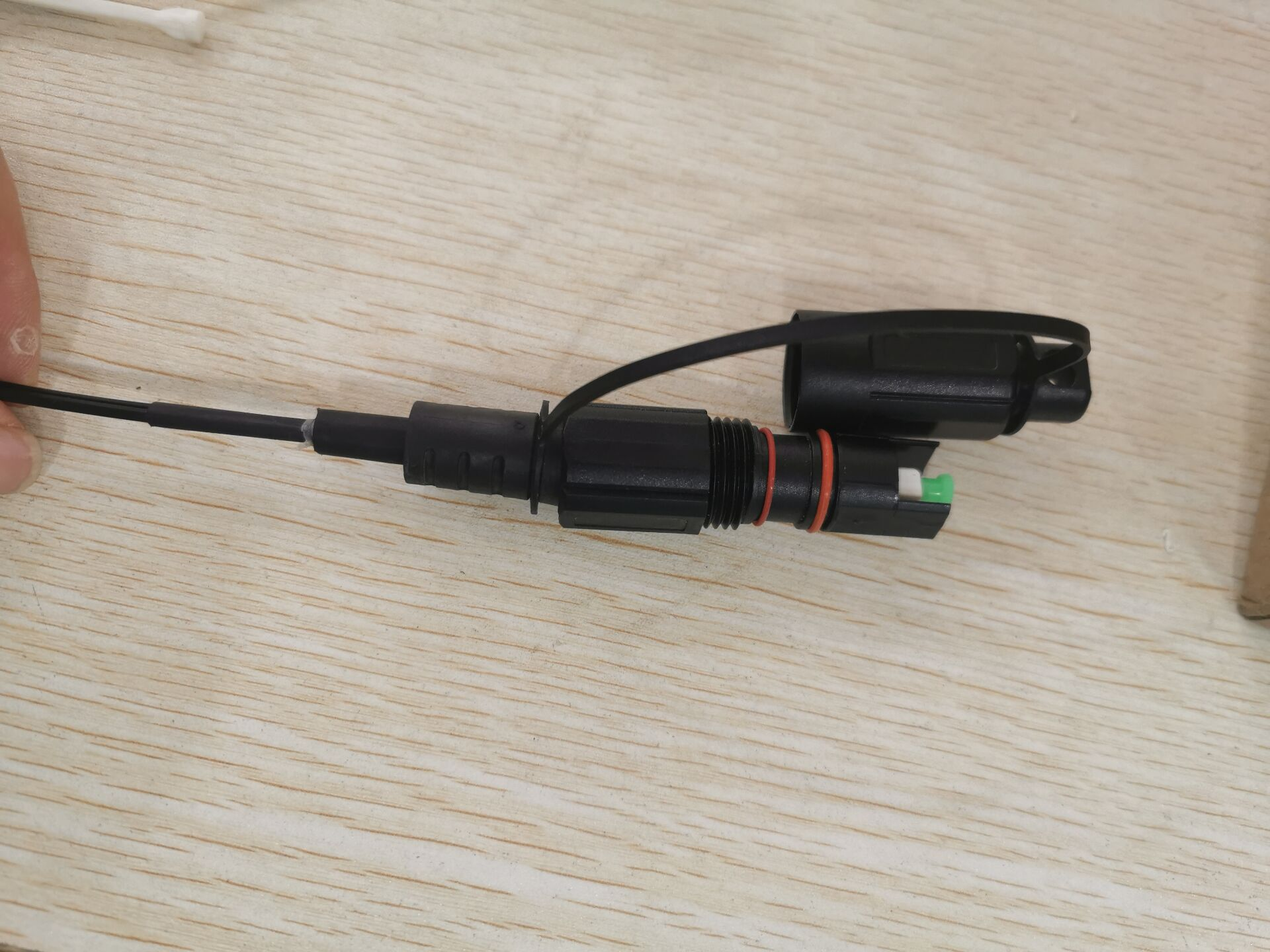

male connector female adapter:

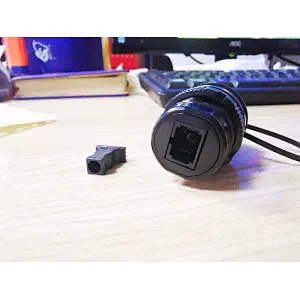

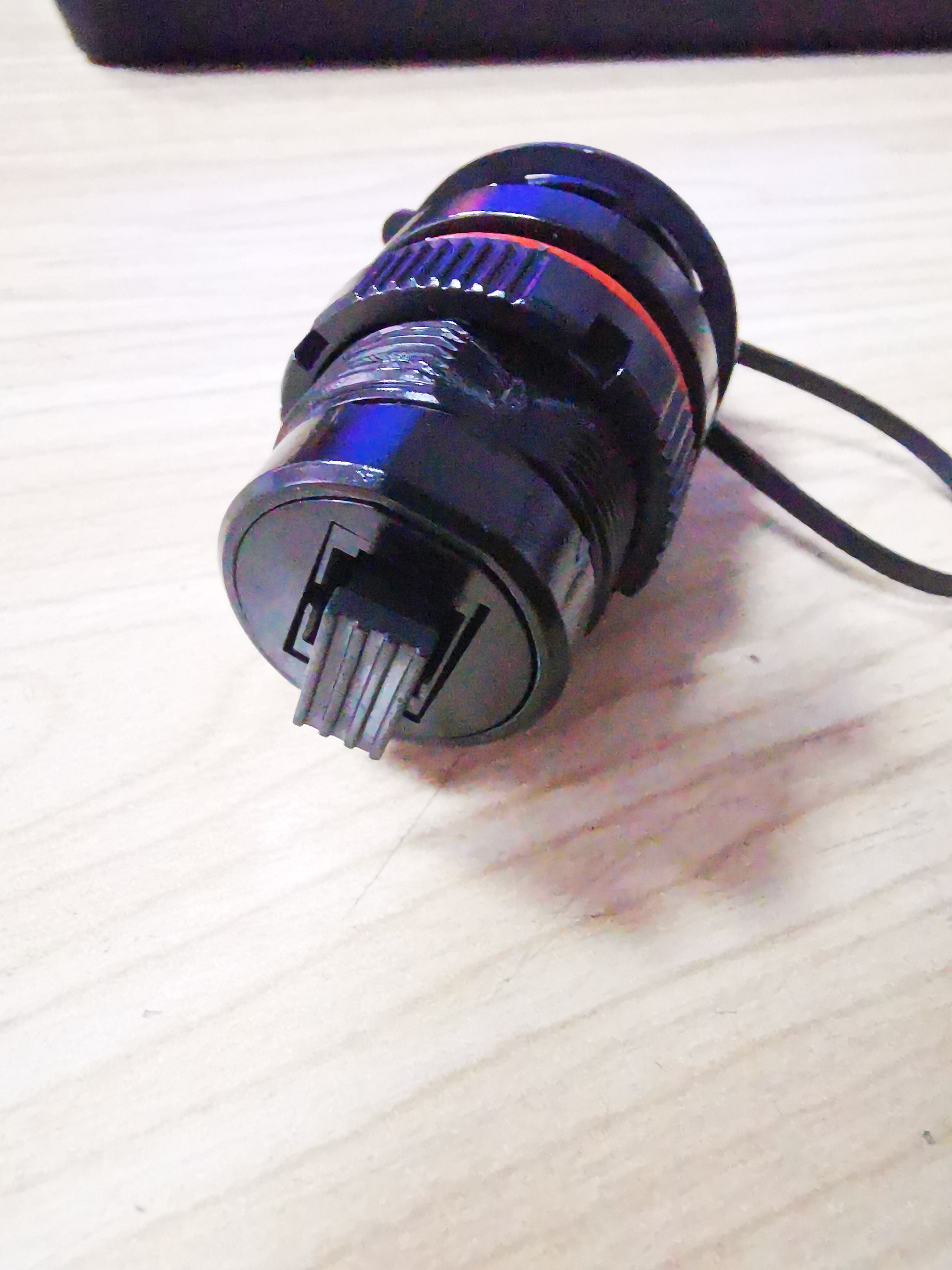

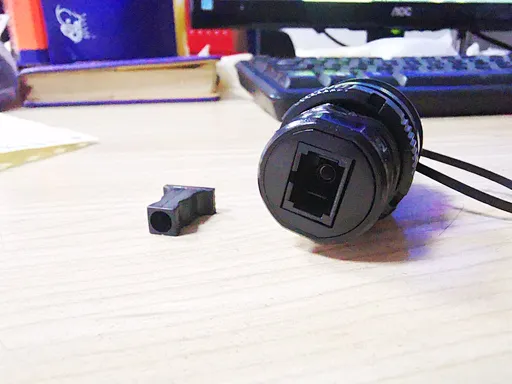

Cost effective, easy, environmental seal and mechanical protection for 1 fiber simple SC style connections. Special fool-proofing design make sure connector has blind-mating function; provides quick installation solutions and has good performance on mating with H receptacle, it can compatible with all the similar products in market, compatiale with Corning Opitap-SC. Cable can be flat drop or round cable, amored or non-amored. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection.
Application:
Telecom networks tower;
CATV, LAN&WAN.
Broadband;
Outdoor FTTP, FTTA
Features:
1.Provides moisture and dust protection for use in harsh industrial environments.
2.IP67 protection, salt-mist proof, humidity proof, dust proof.
3.Drastically reduces field splicing with a predetermined loss at each waterproof tether access point.
4.Utilize traditional field installation techniques for aerial, below ground and duct applications.
5.Reduce installation time by as much as 50 percent per network access point.
6.SCAPC IL<0.3 typically.
7.100% optically tested to ensure quality performance assemblies.
8.Available in single mode and multimode styles to work with any common fiber type.
9.Broad temperature range (-40 to+85°C) is ideal for indoor or outdoor applications.
Details:
structure:

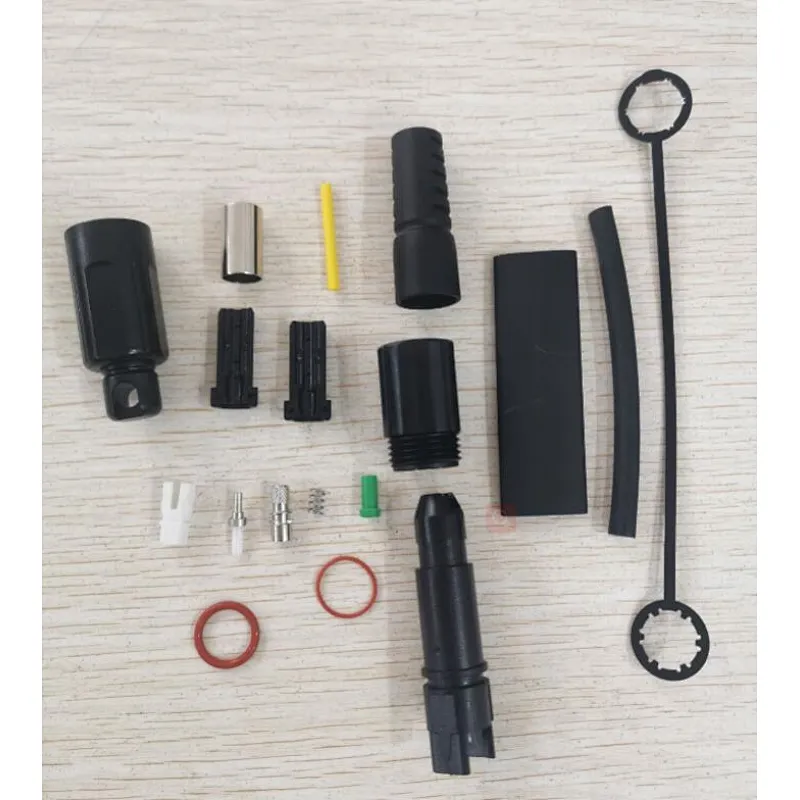

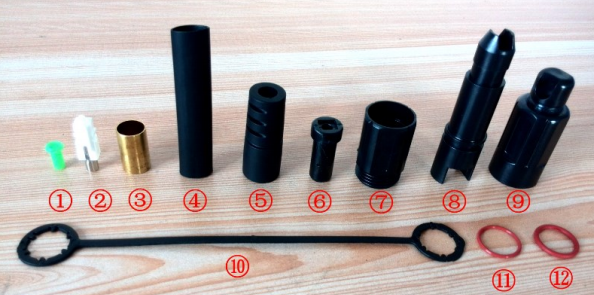

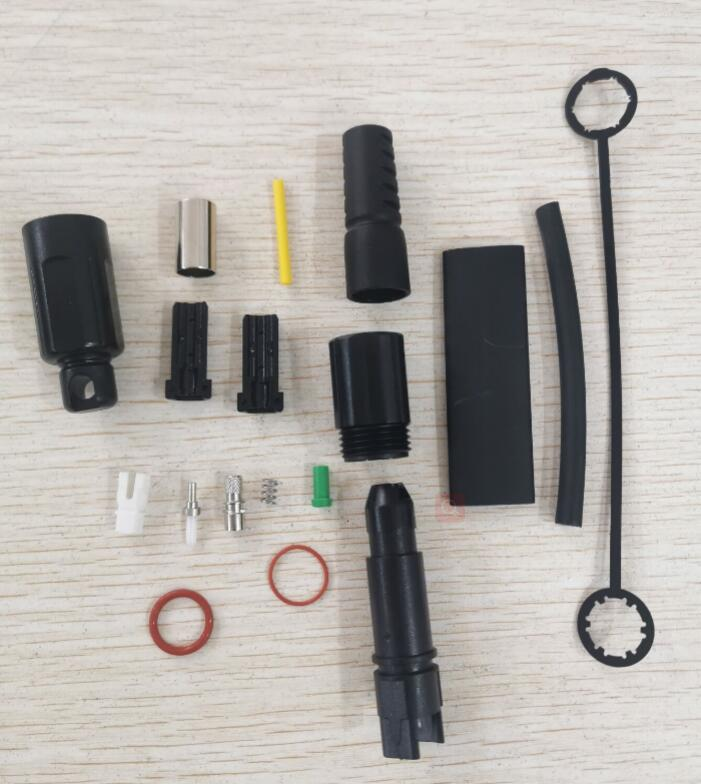

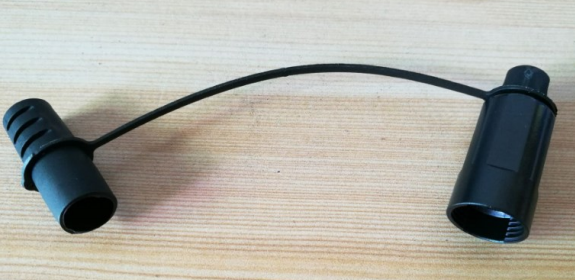

1, dust cap 2. SC/APC connector parts 3.criping coper tube 4. heat shriking tube with glue 5. boot protection 6. up and down location cap 7.housing 8. inner part 9. dust cap 10. connection strip 11.small sealing ring 12.big sealing ring
Assembling steps:
STEP 1. Connect the boot protection and dust cap

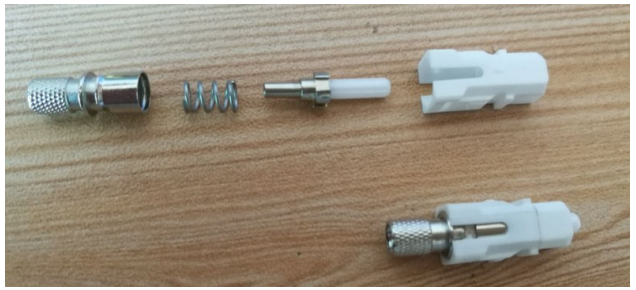

STEP 2. Assemble SC/APC connector parts
STEP 3. put the connector parts to the cable
STEP 4. polish the connector

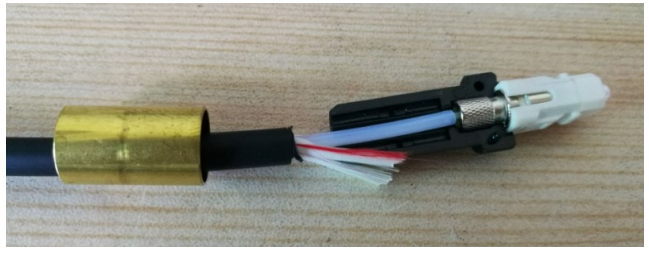

STEP 5. crimping

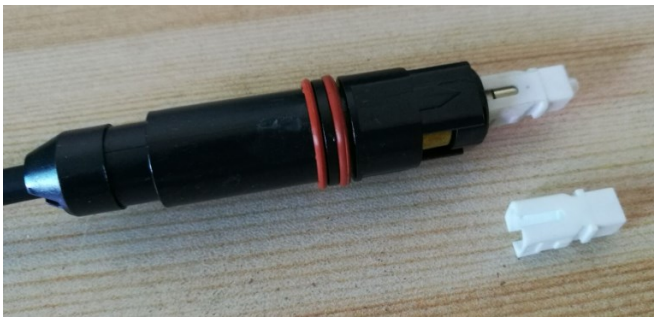

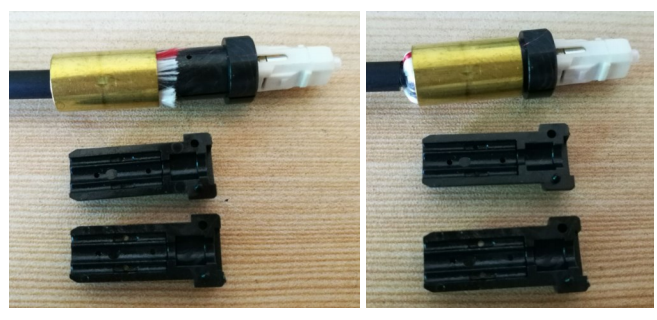

STEP 6. after testing , assemble the connector to inner part

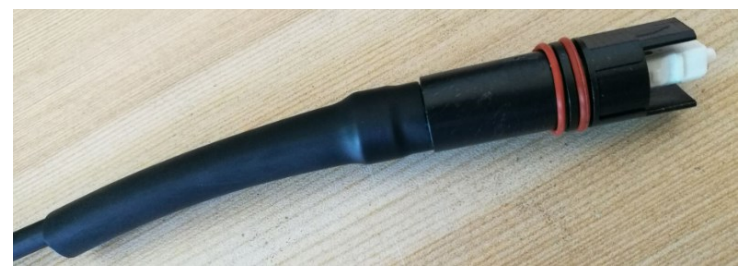

STEP 7.shinking

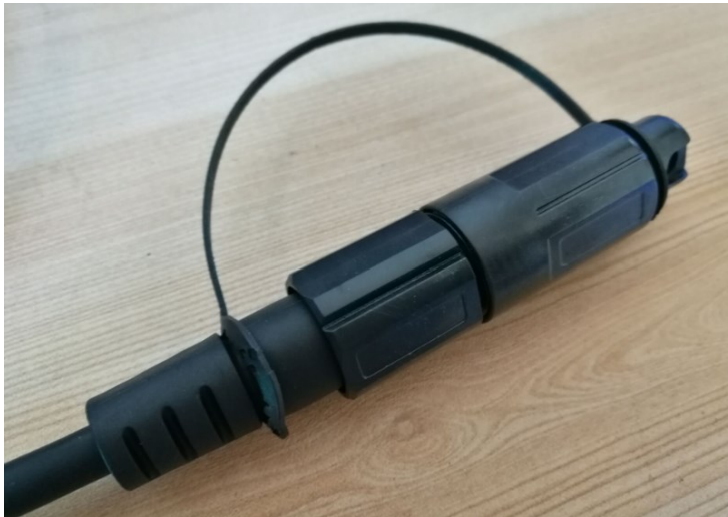

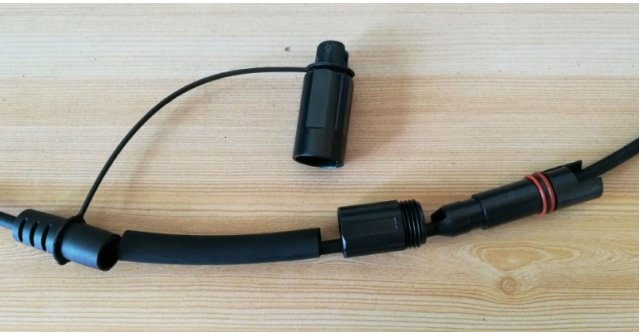

STEP 8. final assemble
