Pocket Size Visual Fault Locator
Pocket Size Visual Fault Locator

Pocket Size Visual Fault Locator

Model NO.
WT-PS-VFL
Quantity:

product description

Pocket-Size Visual Fault Locator Kit - Includes: PS-VFL, 2 AA Batteries, LC-ADA LC 1.25mm Adapter (sold seperately).

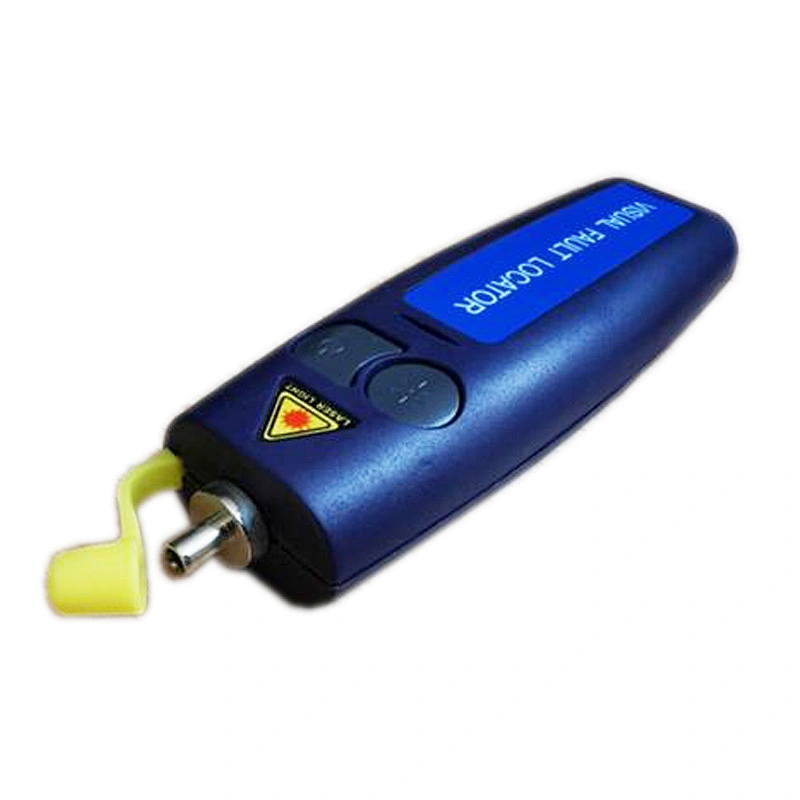

This pocket style VFL is specially designed for field personnel who need a portable light source tool for fiber tracing, fiber routing, continuity testing, to locatebreakpoints (bending or cracking in fiber optic cables),and poor connections.

WT-PS-VFL works on FC, SC, ST connectors and will work on LC connectors when used with the included LC-ADA LC adapter.

The VFL works in an OTDR dead zone and is used for end-to-end visual fiber identification.

Operates in either CW (continuous wave)or pulsed mode. Not recommended For use on dark colored or armored cables.

Pocket Size 1mw 10mw 20mw Red Light Source Fiber Optic Visual Fault Locator.jpg

specification

Fiber Connector

FC, LC, SC, ST (1.25mm adapter for LC sold separately)

Light Source

Class IIIA Laser Diode

Wavelength

650nm

Storage Temperature

40 Fahrenheit (-40 Celsius) to 185 Fahrenheit (85 Celsius)

Working Temperature

-40 Fahrenheit (-20 Celsius) to 140 Fahrenheit (60 Celsius)

Batteries

2 AA

Weight

0.335 lbs

Power SKU No

WT-PS-VFL-1/ PS-VFL-10/ PS-VFL--20
