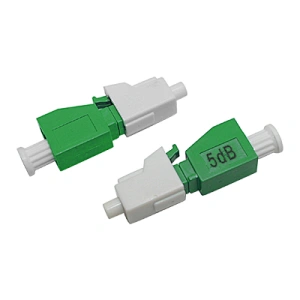

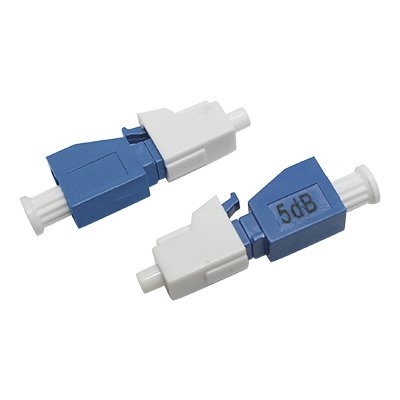

LC Fiber Optical Attenuator
LC
Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.
Quantity:
| Fiber Connector ：LC/APC LC/UPC | Ferrule Type： Zirconia Ceramic |
| Connector Gender：Fixed Male to Female | Transfer Mode： Singlemode |
| Attenuation：Custom | Operating Wavelength(nm): 1260~1620(SM) |
| Attenuation Accuracy: ±0.5dB | Return Loss: ≥50dB |
| Polarization Dependent Loss: ≤0.2dB | Humidity: 95%RH |
| Operating Temperature Range: -40~85°C | Storage Temperature Range:-40~85°C |
Features
- Low insertion loss
- Large return loss
- Strong tensile resistance
- Good interchangeability
- High stability
- Repeat well
- Accurate attenuation value
- Easy installation and operation
Application
Telecommunication Networks Local Area Networks (LANs) Communication System | Premise Installations Wide Area Networks (WANs) Video Transmission | Connections Between Patchcords FTTX, CATV Connections Between Devices |
