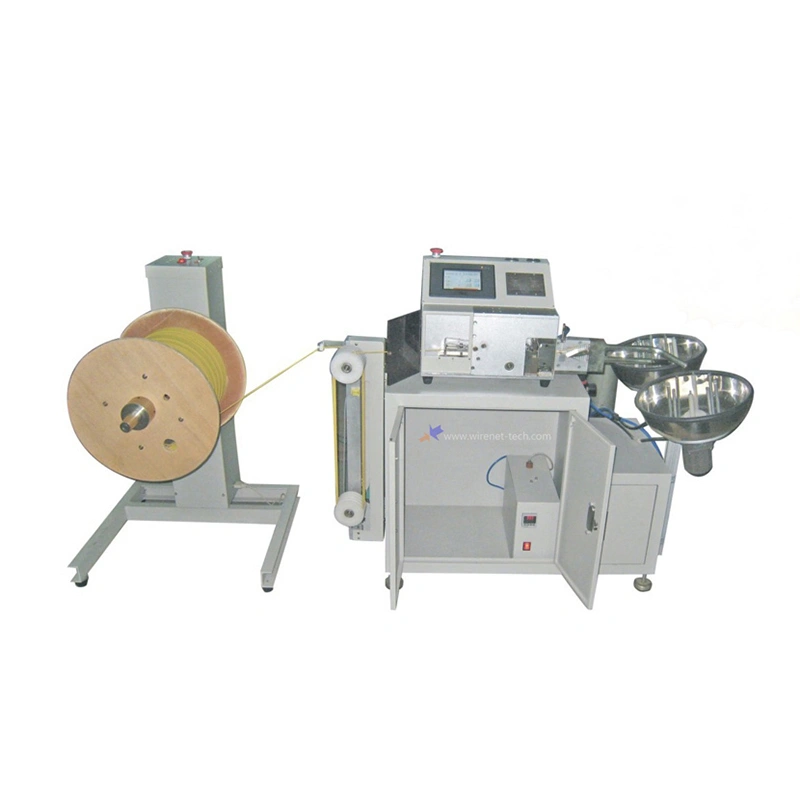

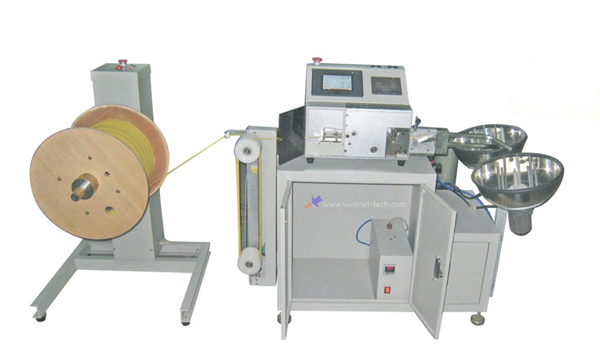

Fiber Cutting Machine for 0.9~7mm Cable
WTX20D
X20D cutting machine can cut cable of 4mm~9mm, round cable, flate cable,simplex or duplex. Cable spool can load 150kg. cutting length can be up to 1km. fiber cutting machine is widely used in the fiber optic patch cord production.
Quantity:
Specification
| Operation interface | Touch screen |
| The cutting speed (m/s) | 0.3~1.5m/s |
| Wraping speed | 3m/s |
| The cutting length(m) | 1-999999m |
| The diameter of the fiber cable reel | ≥35mm |
| The weight the cutting machine can load | 150kgs |
| The cable diameter available for cutting | 2.0mm-7.0mm |
| Automatic control by installed software | compliant with the instruction With the goods |
| Outer Coils Diameter | 80mm~180mm adjustable |
| Tolerance Cutting Length | +/-0.3% |
| Power (kw) | 2.3kw |
| Power supply (v) | 220VAC,+10%~15%,50~60HZ |
| Air supply (MPa) | ≥0.5Mpa |
| The dimension of the machine (mm) | 3000*1000*1200 |
| Package Dimension (mm) | 1182*1000*1200 |
| Packing weight | 317kg |
| Working Temperature | 0~40 degree centigrade |
Main Part
| Prefeeder | 1 set |
| Cable cutter and cabinet | 1 set |
| Coiling pan | 1 set |
| Post Reeler | 1 set |
Storage
| Environmental Temperature | -10~50degree centigrade |
| Relative Humidity | 15%~85% |
| Vibration | 1.0g/5~100HZ/45min |
| Tolerable Shock | Free falling from 45cm height |
Warm tips
1. If you want to cut special cable, can send cable samples to us for test, we'll make a video to show you the cutting process and result.
2. Offer one year non man-made damage quality warranty, life-time maintenance.
3. Exceed the warrenty time, Wirenet will still be responsible for solving problem for the machine once it occurs. We will take video to show you how to find the problem,
how to change the spare parts and other operation to repair the machine, while the repairing cost for spare parts will be borned by buyer.
If you just need cut fiber cable diameter below 4mm, there is another choice, click below picture to learn more
