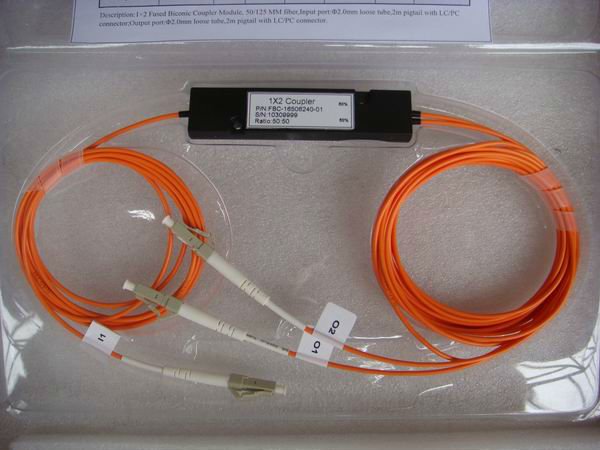

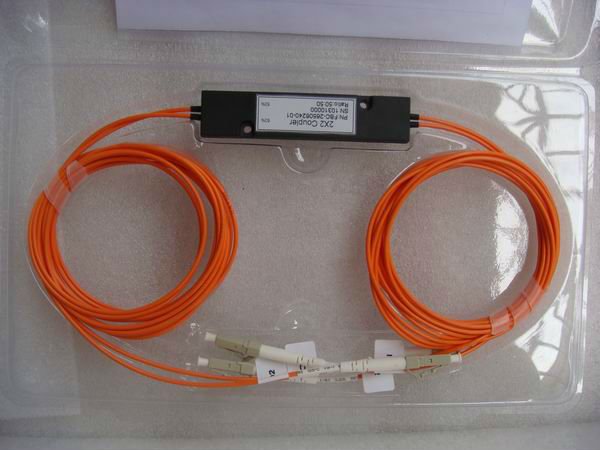

FBT Box Type Splitter with LC Connector
FBT Box Type Splitter
FBT optical splitter is to bundle two or more optical fibers together, and then melt and stretch them on the puller, and monitor the change of spectral ratio in real time. When the spectral ratio meets the requirements, the melt and stretch is finished. One end of the FBT optical splitter retains one optical fiber (the rest are cut off) as the input end, and the other end serves as the multi-channel output end.
Quantity:
Technical Parameter
Items | Single mode | Multimode | ||||||
PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |||
Insertion Loss | <0.2dB | <0.3dB | ||||||
Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB | ||||
Durability | <0.1dB typical change, | |||||||
Operating Temperature | -40 to +75°C | -40 to +75°C | ||||||
Ferrule Hole Sizes | 125.0+1/-0um, Conentricity:≤1um | 125um,Conectricity:1≤3um | ||||||
125.3+1/-0um, Conentricity:≤1um | 127um,Conectricity:1≤3um | |||||||
125.5+1/-0um, Conentricity:≤1um | 128um,Conectricity:1≤3um | |||||||
126.0+1/-0um, Conentricity:≤1um | ||||||||
Application
- CATV; Active device termination;
- Telecommunication networks;
- Metro;
- Local Area Networks;
- Data processing networks;
- Test equipment;
- Premise installation;
- Wide Area Networks.
