DVP 740 Sinlge Fiber Fusion Splicer Machine
DVP 740 Sinlge Fiber Fusion Splicer Machine
DVP 740 Sinlge Fiber Fusion Splicer Machine

DVP 740 Sinlge Fiber Fusion Splicer Machine

Model NO.
DVP-740
Price:
US $ 1,099.00-1,299.00 / set
Quantity:

1. It can applicable fibers such as SM/MM/DS/NZ-DS/EDF.

2. 8 Sec. splice time, 40 Sec. tube-heat time.

3. Reversible monitor with control panel on each side.

4. Compact & Light weight (3.3kg with battery).

5. SYSTEM TEST ensures the best working condition.

6. Auto check fiber end face.

7. Auto calibrate parameters.

8. Store 8000 groups of splice results, and can connect to computer

9. 8 Kind of Language options: English, Korean, Russian, Portuguese, French, Spanish, German, Chinese.

10. Large capacity internal battery ( Liion battery 12V 10,000mAh can guarantee the outdoor work. Normally when the user operate by the right way, the battery can really offer more than 200 times of continuous splices and heats when it is used in outside.)


Features

  • Compact & Light weight
  • Applied for Fibers ,Cables and SOC(splice-on connector)
  • Integrated Holder Design
  • Fully Automatic , Semi-automatic and Manual Operation
  • Shockproof, Drop resistance
  • Power saving function
  • 4.3 inch Color LCD monitor
  • USB&DC interface

Specification

Applicable fibers

SM, MM, DS, NZ-DS(G655), EDF, Bending Loss Insensitive fiber(G657), Pigtail, Drop cable and connector.

Fiber cleaved length

8-22mm

Average splice loss

0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)

Return loss

≥60dB

Tension test

2.0N(200gf)(Standard)

Protection sleeve length

20mm, 40mm, 60mm

Splice Program

5 groups of preset programs, 75 group of manual setting

Language

English, Chinese, Russian, Spanish, Portuguese.

Environment conditions

-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)

Storage environment

-40~ +80℃ (temperature) , 0~95%RH (humidity)

Power supply

AC adaptor: 85~260V input voltage

Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat

Dimensions/Weight

142(D)×122(W)×138(H)mm/1.95kg

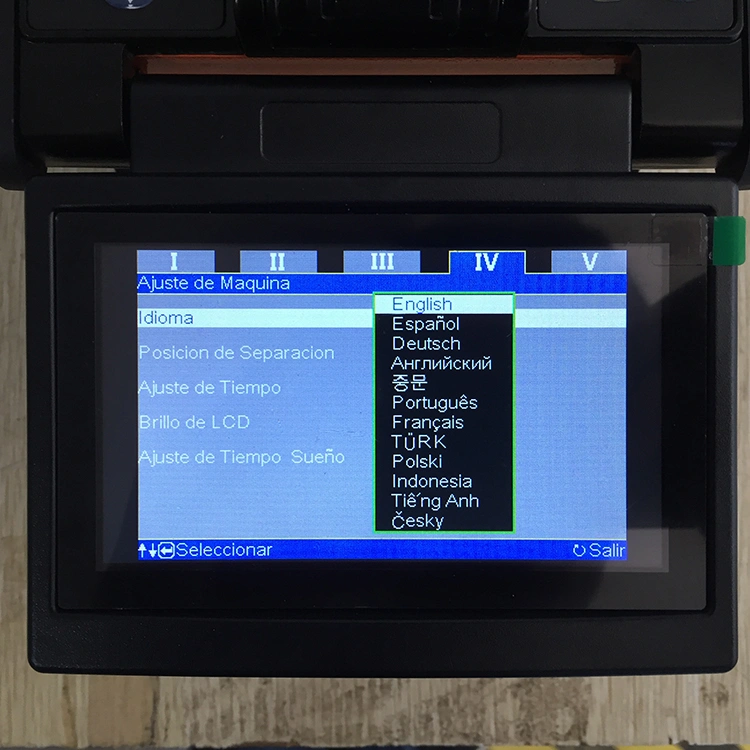

Support 12 languages

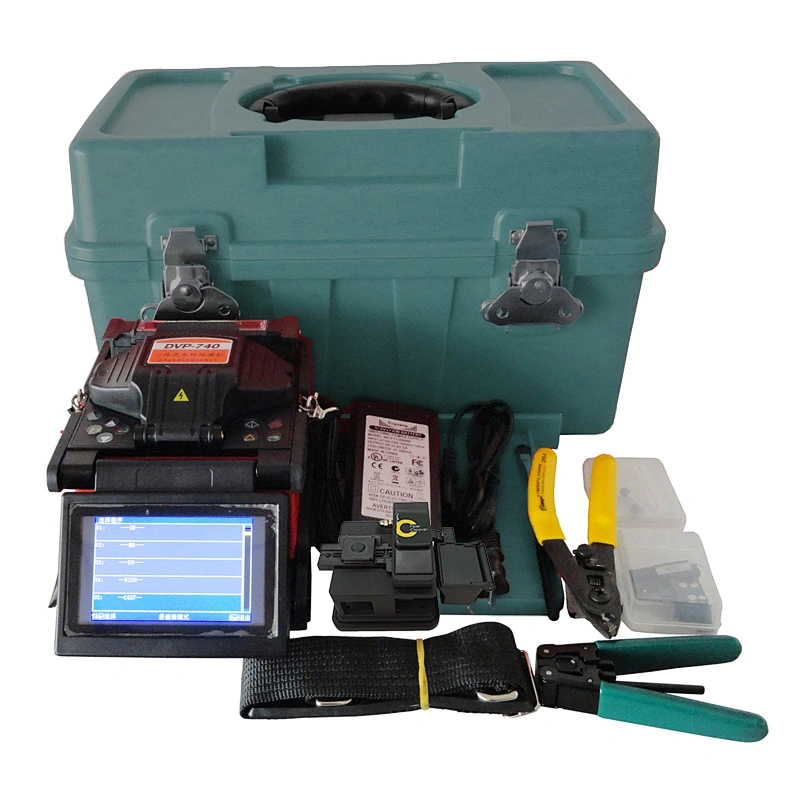

Standard Package

Main body

Internal battery

charger

Spare Electrodes

Cooling tray

Manual instruction

Cary case

Fiber cleaver

Fiber stripper

AC adapter

AC power cord

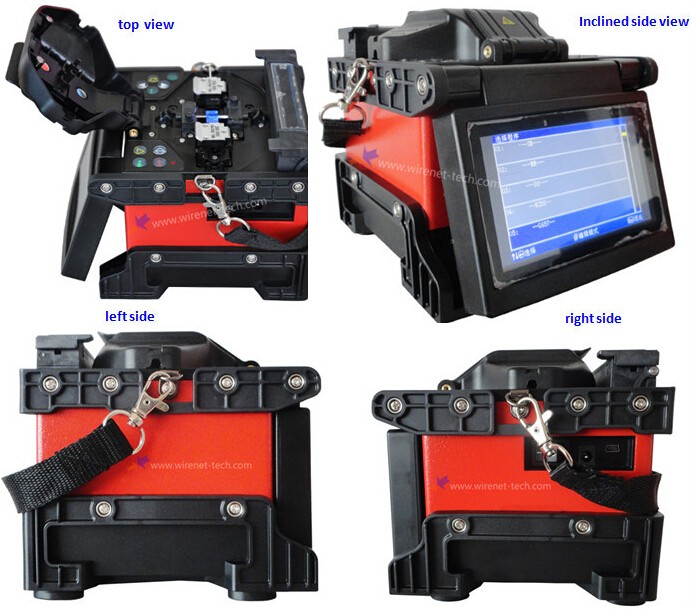

740 2.jpg

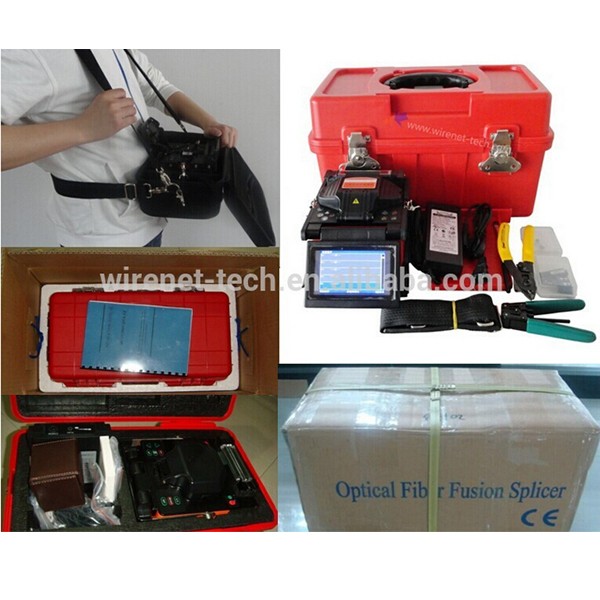

Packaging & Shipping
