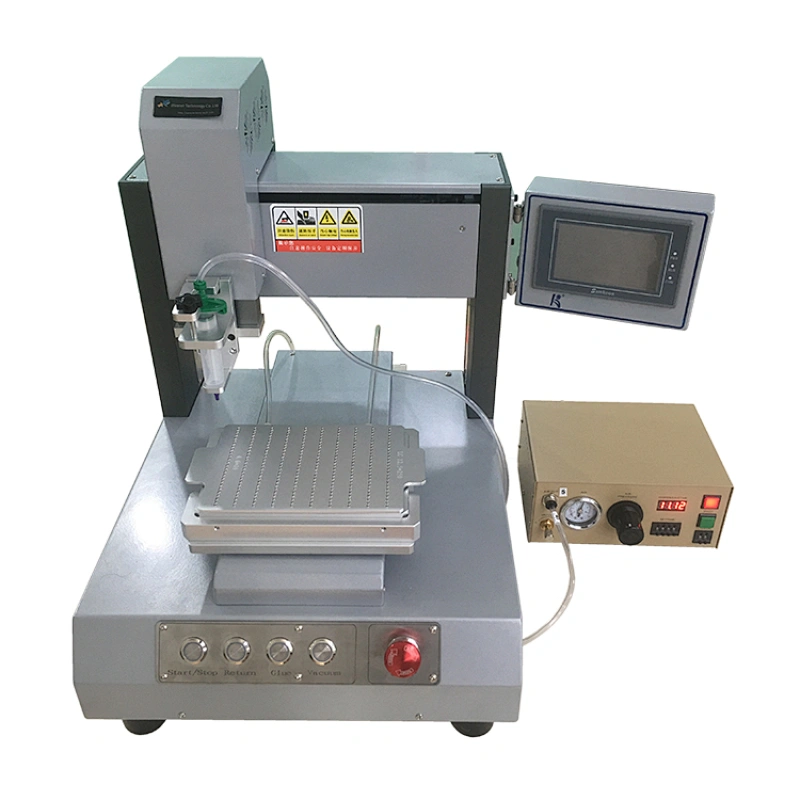

Automatic Glue Injection Machine
WT-150T
The carefully developed control card makes the three-axis dispensing manipulator become a real intelligent CNC three-axis dispensing equipment, suitable for SC FC LC ST E2000 MU dispensing path.(Non-standard fixtures need to be purchased separately)
Quantity:
Features
- Stable performance, reliable quality
- The operation is simple and convenient, high speed and accurate
- Chinese/English optional operation interface
- Single machine can be operated, the most easy to install.
- The three-axis automatic dispensing manipulator can operate on a single machine without any external computer, not only convenient installation, but also simple operation setting.
- Humanized teaching box program setting.
- Graphic touch screen design, users can easily complete the setting of dispensing path between fingers, easy to complete the matrix copy of various paths, offset modification, correction point setting......
- At the same time, it has super functions such as program transmission between each machine.
- Professional interpolation control system.
- The carefully developed control card makes F series three-axis dispensing manipulator become a real intelligent CNC three-axis dispensing equipment, suitable for SC FC LC ST E2000 MU dispensing path.
- (Non-standard fixtures need to be purchased separately)
- Suitable for automatic dispensing of ceramic inserts
- With needle control button on the machine, it is more convenient to debug than similar products
Specification
Scope of dispensing X/Y/Z(mm) | 200/200/50 |
Maximum load Y-AXIS / Z-AXIS | 8kg / 3kg |
Movement speed X&Y / Z (mm/sec) | 0.1～800 / 350 |
| Ability to decompose | 0.01 mm/Axis |
| Repeat accuracy | +/- 0.02 mm/200 |
| Program recording mode | 100 groups, 4000 points per group( Can support U disk copy) |
Display mode | Touch screen |
The motor system | Japanese micro step stage precision motor |
Operating mode | Point to point/continuous line segment |
The transmission way | Synchronous belt + precision linear guide rail |
Sports tween function | 3 axis (Any route in 3D space can be used) |
I/O Signal | 8 Inputs / 8 Outputs |
External control interface | RS232 |
Input power | AC110/220V（Internal switching） 300W |
Ambient temperature | 5～40℃ |
Working environment humidity | 20～90% |
Installation dimensions(WxDxH mm) | 413×439×534 |
Machine weight( kg) | 28 |
