ADSS Aerial Fiber Cable Thermoplastic Anchor Clamps Aerial Cable Clamp

ADSS Aerial Cable Thermoplastic Clamps

This thermoplastic anchor clamp is designed for securing ADSS aerial fiber cables. It is easy to install, durable, and weather-resistant.

Quantity:

Contact Now

add to cart

ADSS aerial cable thermoplastic clamps are made of an opened conical body, a pair of plastic wedges and a flexible bail equipped with an insulating thimble. The bail can be locked onto the clamp body once passed through the pole bracket and re-opened by hand at any time when the clamps is not under full load. All parts are secured together to prevent any loss during installation

This ADSS aerial fiber cable thermoplastic anchor clamp is made of high-quality plastic materials that are known for their strength, durability, and resistance to weathering. Its unique design allows for easy installation and adjustment, so you can quickly and securely secure your fiber optic cables in place. This cable clamp is especially useful for outdoor installations where harsh weather conditions are a concern. It is also ideal for areas where traditional cable clamps may not be a good fit, such as in locations where metal clamps could potentially interfere with other equipment. Thanks to its thermoplastic construction, this anchor clamp is resistant to extreme temperatures, corrosion, and UV radiation. It is also lightweight, which makes it easy to handle and transport. Whether you're installing new ADSS aerial fiber cables or retrofitting existing ones, this thermoplastic anchor clamp is an essential accessory for ensuring the cables stay securely in place, even in the most challenging conditions. With its ease of installation, durability, and resistance to weathering, this cable clamp is an investment that will pay off for years to come.

Features

* allow easy,quick and safe installation

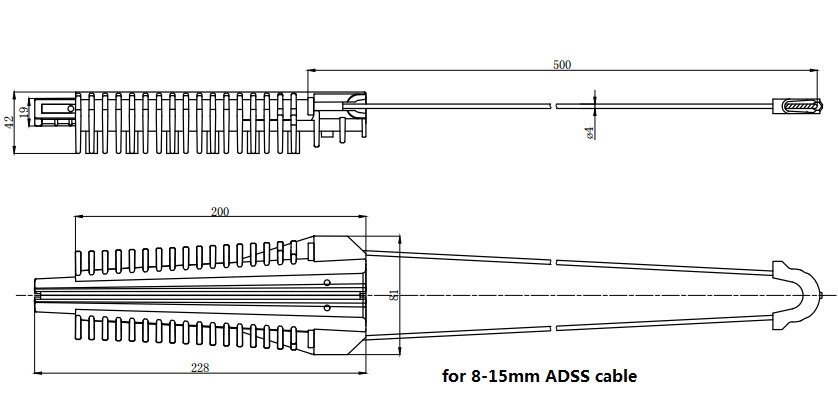

* Suitable for dead-ending and double dead-ending 4-8mmand8~15mm ADSS drop cable

* Light and compact products

* Installation takes seconds

* The flexible bail provides an extra protection to the cable against vibrations

* 4 kV or 11 kV insulation provided

Product name	Materials	Breaking load	Weight
ADSS Aerial Thermoplastic Clamps	UV Protected Thermoplastic	5000N	0.4kg±0.01

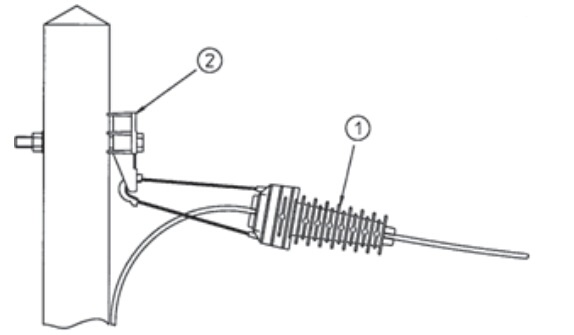

Configuration: 1 aerial thermoplastic clamp (1) + 1 universal pole bracket (2)

How to fasten: 1 drilled poles or 2 pole with 2 buckles

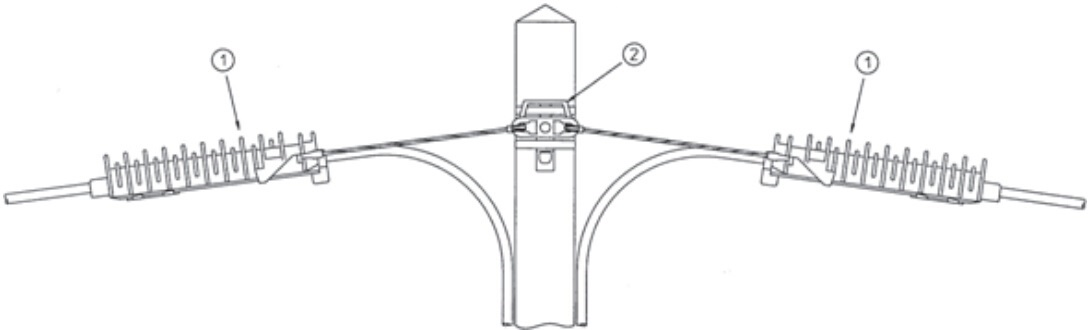

Configuration:2 aerial thermoplastic clamp (1) + 1 universal pole bracket (2)

How to fasten: 1 drilled poles or 2 pole with 2 buckles
