Wirenet All Dielectric Self-supporting Aerial Cable ADSS

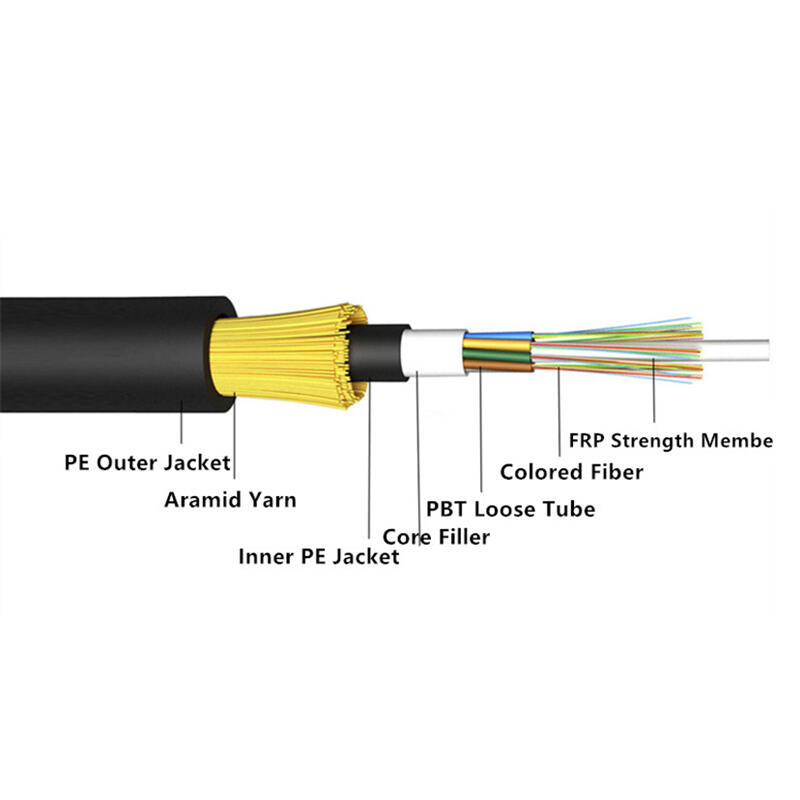

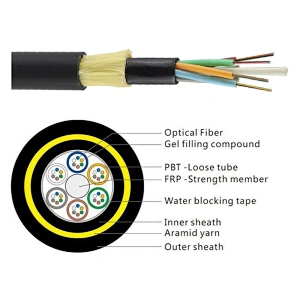

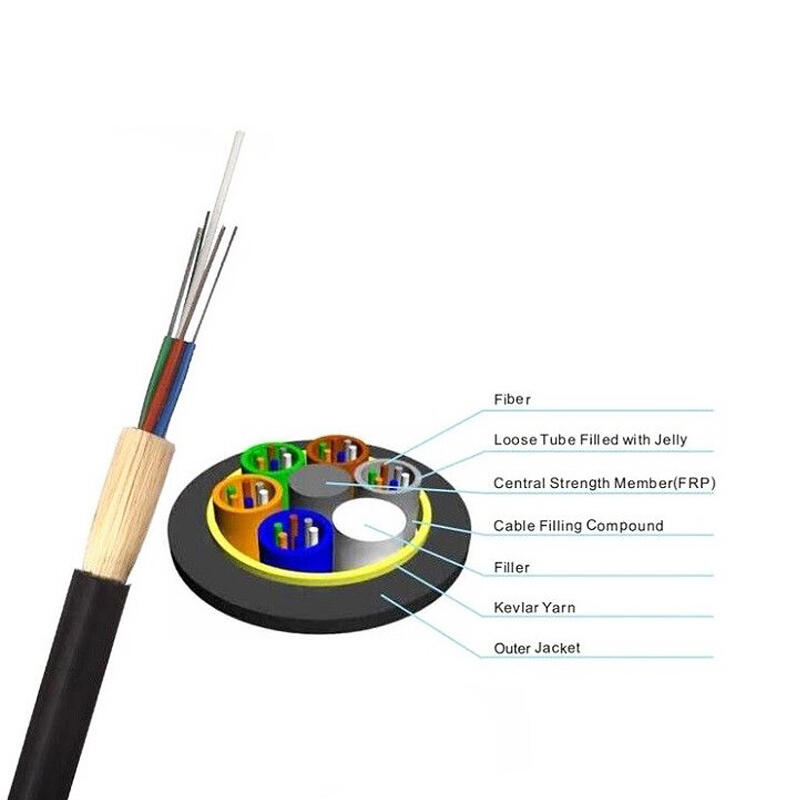

The self supporting aerial cables is loose tube stranded. 250μm fibers are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. The cable core is not only filled with filling compound, but also covered with thin PE (polyethylene) inner sheath. The stranded layer of aramid yarns are applied over the inner sheath as strength member. Therefore, the cable is completed with PE or AT (anti-tracking) outer sheath. ADSS has good performance of tensile strength and temperature.

All-dialectric self-supporting (ADSS) cables are manufactured with an FRP dielectric central strength member, with multiple loose tube optical fibres. The external jacket is UV stabilised and extremely resistant to the ingress of moisture, with operating temperatures from -40-+70 degrees, the cables are suitable for installation to 11kV power lines.

Features:

• Can be installed without shutting off the power

• Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops

• Large span lengths

• Good performance of tensile strength and temperature

• The design life span is 30 years

  Optical Characteristics:

  		G.652	G.655	50/125μm	62.5/125μm
  Attenuation	@850nm			≤3.0 dB/km	≤3.0 dB/km
  (+20℃)	@1300nm			≤1.0 dB/km	≤1.0 dB/km
  	@1310nm	≤0.36 dB/km	≤0.40 dB/km
  	@1550nm	≤0.22 dB/km	≤0.23dB/km
  Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
  	@1300nm			≥1000 MHz·km	≥600 MHz·km
  Numerical Aperture				0.200±0.015NA	0.275±0.015NA
  Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm


  Technical Parameters:

  Outer diameter	weight tension kN		Ref.daily max.working tension kN	Max allowable working tension kN	Break strength kN	Strength member CSA mm2	Modulus of elasticity kN/ mm2	Heat expansion coefficient ×10-6/k	Suitable span (m) (NESC Standard,m)
  	PE sheath	AT sheath							A	B	C	D
  12.5	125	136	1.5	4	10	4.6	7.6	1.8	160	100	140	100
  13	132	142	2.25	6	15	7.6	8.3	1.5	230	150	200	150
  13.3	137	148	3	8	20	10.35	9.45	1.3	300	200	290	200
  13.6	145	156	3.6	10	24	13.8	10.8	1.2	370	250	350	250
  13.8	147	159	4.5	12	30	14.3	11.8	1	420	280	400	280
  14.5	164	177	5.4	15	36	18.4	13.6	0.9	480	320	460	320
  14.9	171	185	6.75	18	45	22	16.4	0.6	570	380	550	380
  15.1	179	193	7.95	22	53	26.4	18	0.3	670	460	650	460
  15.5	190	204	9	26	60	32.2	19.1	0.1	750	530	750	510
  15.6	194	208	10.5	28	70	33	19.6	0.1	800	560	800	560
  16.3	211	226	12.75	34	85	40	20.1	0.1	880	650	880	650
  16.8	226	242	15.45	41	103	48	24	-0.4	1000	750	1000	760
  17.2	236	253	16.2	45	108	51	25.1	-0.5	1100	800	1100	830
  17.9	249	266	18	50	120	58.8	26.1	-0.8	1180	880	1180	900
